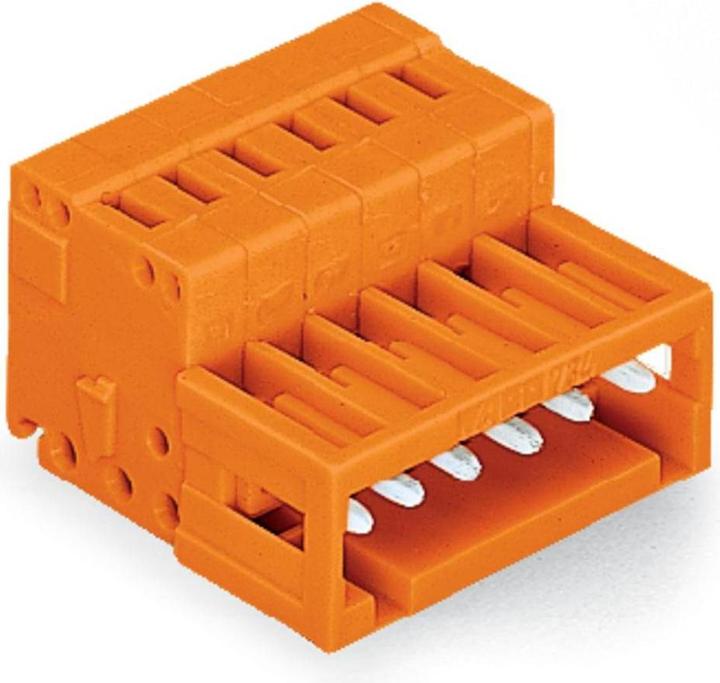

WAGO GmbH & Co. KG male connector 734-338

Manufacturer: WAGO GmbH & Co. KG
Designation: Male connector 8-pole, orange
Type: 734-338
Connection type: PCB to cable
Contact design: Pin
Number of poles: 8
Number of rows of plug-in contacts: 1
Contact pitch: 3.81 mm
Terminal pitch: 3.81 mm
Angle contact/conductor connection: 180° (horizontal)
Rated current: 10 A
Rated voltage: 160 V
Rated impulse voltage: 2.5 kV
Overvoltage category: III
Degree of pollution: 2
Connectable conductor cross-section flexible without ferrule: 0.08 to 1.5 mm²
Connectable fine-stranded conductor cross-section with ferrule: 0.25 to 1.5 mm²
Connectable solid conductor cross-section: 0.08 to 1.5 mm²
Connectable conductor cross-section stranded: 0.08 to 1.5 mm²
Electrical connection type: spring-loaded connection
Connectable cable type: round cable
Material of contact coating: tin
Material of contact: other copper alloys
Material of insulating body: thermoplastic
Material of housing: plastic
Coating of housing: uncoated
Housing colour: orange
Flammability class of insulating material according to UL 94: V0
With protective conductor: no
Operating temperature: -60 to 100 °C
Protection class (IP), mounted: IP10

WAGO GmbH & Co. KG male connector 734-338: further details
1-conductor male connector CAGE CLAMP® 1.5 mm²
Spacing: 3.81 mm
8-pole
100% mismating protected
1.50 mm²
Orange
EAN: 4044918513913.
