WAGO GmbH & Co. KG Terminal Block 739-104

Manufacturer: WAGO GmbH & Co. KG
Designation: Terminal Block
Type: 739-104

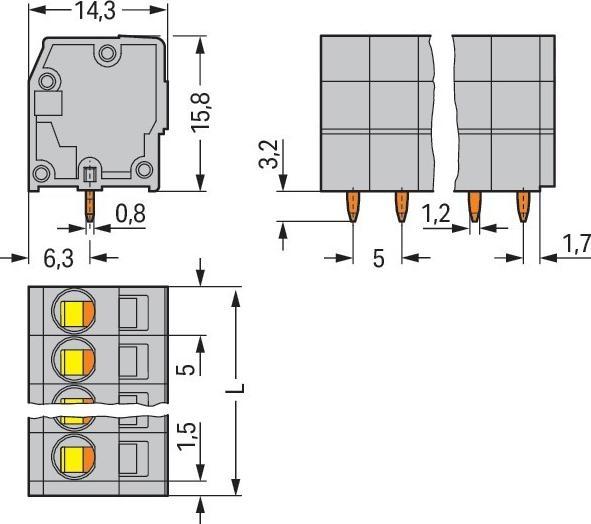

Height: 15.8 mm
Number of electrical connections: 4
Number of levels: 1
Pitch of connections: 5 mm
Angle of PCB/lead connection: 90° (vertical upwards)

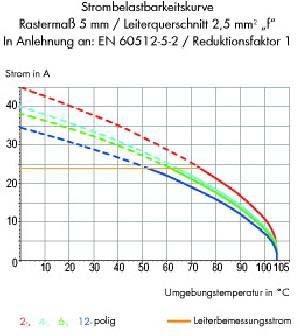

Rated current In: 24 A
Rated voltage: 320 V
Rated surge voltage: 4 kV
Overvoltage category: III
Degree of pollution: 2
Connection type for conductor: Spring clamp connection
Connectable conductor cross-section solid: 0.08..2.5 mm²
Connectable conductor cross-section stranded with ferrule: 0.25..1.5 mm²
Connectable conductor cross-section stranded without ferrule: 0.08..2.5 mm²
Connectable conductor cross-section multi-stranded: 0.08..2.5 mm²
Connection type for PCB: Solder connection
Material of connection surface: Tin
Length of pin: 3.2 mm
Material of insulating body: Thermoplastic
Housing color: gray
Flammability class of insulating material according to UL 94: V0
Operating temperature: -60..105 °C
Type of PCB mounting: Connection contact
Mounting type: Soldering
Type of banding: None

WAGO GmbH & Co. KG Terminal Block 739-104: additional details
PCB terminal 2.5 mm² pitch 5 mm 4-pole CAGE CLAMP® 2.50 mm² gray, EAN: 4044918859509.
