Walther Werke Base housing
HousingOnly 1 item in stock at supplier
Product details

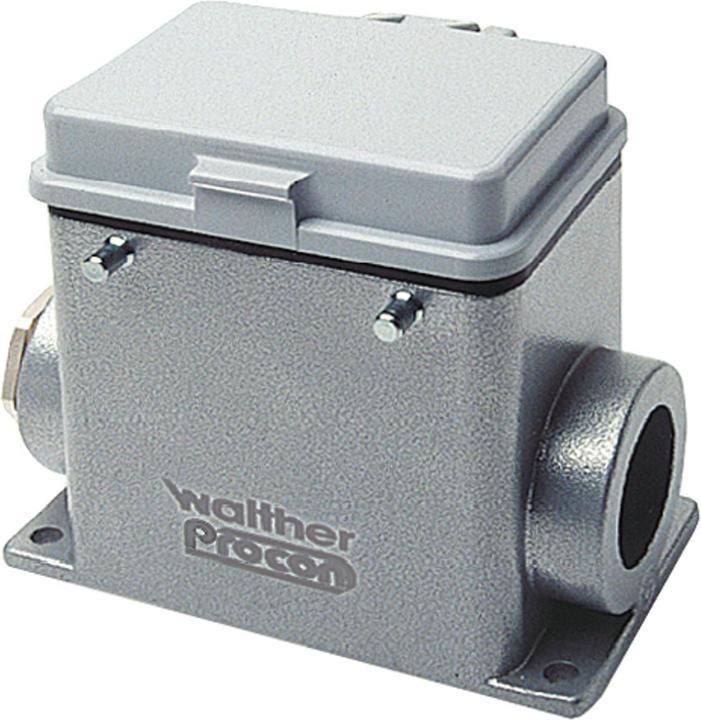

Walther Werke Base Housing T701232MS
Manufacturer: Walther Werke
Designation: Base Housing A322
Height: 81.5 mm
Type: T701232MS
Width: 106 mm
Depth: 79 mm
Housing Design: Base Housing
Housing Material: Aluminum
Housing Coating: Powder-coated
Housing Color: Gray
Cable Entry Arrangement: Side
Bracket Position: None
With Cable Gland: No
Cable Gland Mounting Type: Metric
With Hinge Cover: Yes
With Socket: Yes
With Seal: Yes
Number of Cable Entries: 1
Locking Type: Crossbar
Flammability Class of Insulating Material according to UL 94: V0
Operating Temperature: -40 to 125 °C
EMC Version: No
Corrosion Resistant: Yes
UV Resistant: Yes
Protection Class (IP), mounted: IP65
Walther Werke Base Housing T701232MS: Additional Details
Walther base housing made of aluminum die-cast, height 81.5 mm with cross-locking latches, an M25 socket, and a plastic hinge cover. Protection class: IP65 for series A32 and D50.
Electrical engineering accessory type | Housing |
Item number | 36764875 |
Manufacturer | Walther Werke |
Category | Electronics supplies + Casing |
Manufacturer no. | T701232MS |
Release date | 28/6/2023 |
Colour | Grey |
Electrical engineering accessory type | Housing |
Manufacturer Type | T701232MS |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | Base housing Die-cast aluminium housing 81.5 mm high with cross-locking cams with an M25 connection piece and a plastic hinged cover |
Length | 106 mm |
Width | 79 mm |
Height | 81.50 mm |
Weight | 444 g |
