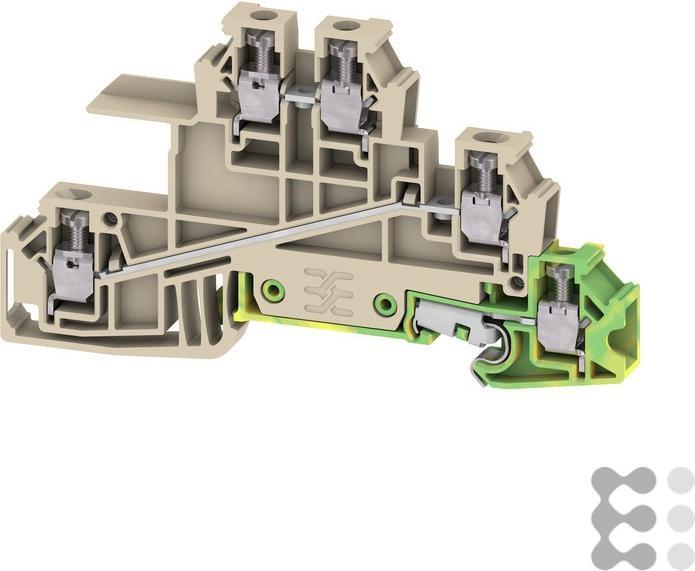

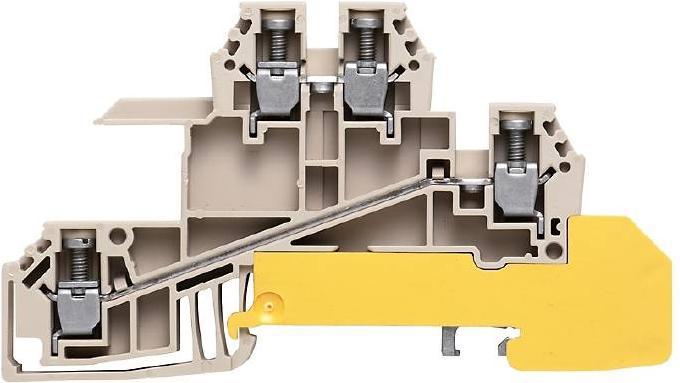

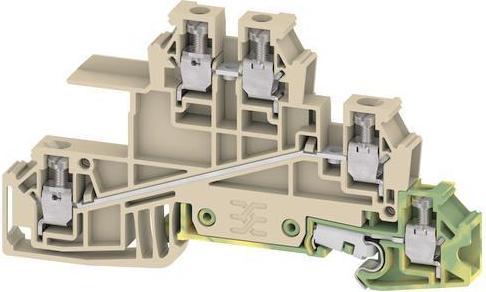

The Weidmüller distribution terminal WDL 2.5/S/L/L/PE is a high-quality electronic accessory specifically designed for energy distribution in building installations. With a compact design of 84.5 x 6.1 x 49 mm, this terminal provides a reliable connection for various conductor cross-sections. It is suitable for both fine-stranded and solid conductors with cross-sections ranging from 0.5 to 4 mm² and allows for easy mounting on a TH35 DIN rail. The terminal is made from thermoplastic material and can operate within a temperature range of -50 to 120 °C. Additionally, it meets the flammability class V0 according to UL 94, making it a safe choice for demanding applications. The integrated PE function ensures additional safety in electrical installations.

• Suitable for conductor cross-sections from 0.5 to 4 mm²
• Operating temperature range of -50 to 120 °C
• Mounting on TH35 DIN rail
• Flammability class V0 according to UL 94
• Integrated PE function for increased safety.
