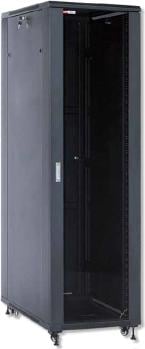

The professional rack cabinets of the RNA series for floor installation allow for any desired configuration thanks to the wide range of available sizes. The tempered glass door, the 2 mm steel frame, the locks (also on the removable side panels), the 4 wheels, and 4 leveling feet make this series a turnkey solution for your installation. Additionally, the option to purchase the rack in either assembled or disassembled condition simplifies transport and reduces the risk of transport damage to the installation site.

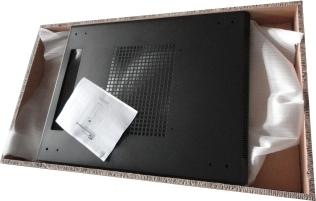

• Delivered completely unassembled in a reinforced cardboard box
• Main construction made of 2 mm solid steel, sides made of 1.5 mm steel
• The tempered glass door with a 1.5 mm metal frame opens 180° and is equipped with a handle and a key lock
• Removable side panels, also equipped with locks and keys, allow for effortless installation of equipment
• Cable entries at the top and bottom (with cover)
• Housing for 120 mm fans or a special ventilation kit at the top
• Load capacity up to 800 kg
• Equipped with 4 numbered mounting angles, adjustable in depth
• Completed with leveling feet and 4 wheels (2 of which have brakes)
• Grounding kit included
• Dimensions W x D x H: 600 x 800 x 1610 mm
• 20 sets of screws included (screws + cage nuts)
• Color: Black, RAL 9005
• Unit: 32
• Protection class IP20.
