Best selling Buttons + Switches from Gewiss
On this page you'll find a ranking of the best Gewiss products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Gewiss Button
Single push-button in accordance with EN 60669-1 as DIN rail mounted device. Connection (max): flexible 6 qmm, rigid 10 qmm.
2. Gewiss Disconnector
Gewiss disconnector GW96536 Manufacturer :Gewiss Designation :Disconnector 3-p, 32A Type :GW96536 Switching function :Disconnector Number of poles :3 Rated current :32 A Rated voltage :415 V Min. Rated voltage :415 V Voltage type :AC With signal lamp :no Colour of dome :other Light source :other Lamp base :other Width in units :1 Installation depth :72 mm Protection class (IP) :IP20 Imprint/marking :other Forced disconnection (to DIN VDE 0113) :yes Gewiss disconnector GW96536: Further details Disconnector to EN 60669-2-4 as DIN rail mounted device. The switch lever can be sealed when switched off and on or locked with a lever lock (order accessory separately) for padlock. Connection (max): flexible 6 qmm, rigid 10 qmm. EAN: 8011564447868.
3. Gewiss Impulse switch
Gewiss impulse switch GWD6644 Manufacturer :Gewiss Designation :Impulse switch 16A, 1S, 230V Type :GWD6644 Function :mechanical Switch Mounting type :DIN rail Width in pitch units :1 Installation depth :72 mm Number of contacts as normally open :1 Control voltage 1 :230 V Control voltage type 1 :AC Frequency of control voltage 1 :50..60 Hz Rated switching current :16 A Supply voltage :230 V Supply voltage type :AC Suitable for manual operation :yes Gewiss impulse switch GWD6644: further details Impulse switch (remote switch) according to EN 60669-2-2 as rail-mounted device. The maximum connection cross-sections for the contacts are fine-wire 6 qmm / solid 10 qmm and for the coil connections 2.5 qmm. Can be combined with an auxiliary contact or a central control. , EAN: 8011564847439.
4. Gewiss Illuminated button
Gewiss illuminated pushbutton GW96569
Manufacturer: Gewiss
Designation: Illuminated pushbutton 1S, 1NC, red
Type: GW96569
Number of contacts as normally closed: 1
Number of contacts as normally open: 1
Switching current: 16 A
Switching voltage: 250 V
Voltage type: AC
With signal lamp: Yes
Colour of dome: Red
Illuminant: LED
Lamp socket: Other
Lamp voltage: 230 V
Colour of knob: White
Width in units: 1
Installation depth: 72 mm
Further details: Pushbutton single with LED indicator lamp according to EN 60669-1 as rail-mounted device. Connection (max): flexible 6 qmm, rigid 10 qmm.
5. Gewiss GW96126 Load-break switch 63A 3-pole 3TE
Load disconnect switch according to EN 60947-3 as a modular device. Usage category AC-22B. Auxiliary switches can be mounted on the left side, with a maximum of one. The switch lever can be locked in both the ON and OFF positions, or secured with a lever lock (accessory to be ordered separately) for padlock locking. Maximum connection: 50 mm². The appropriate busbars can be used for wiring.

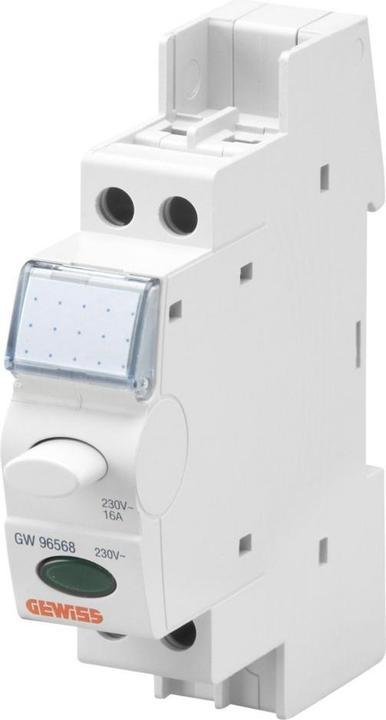

6. Gewiss GEWI GW96568 Illuminated push-button Series installation unit 1 NO contact +
Gewiss GW96568 Illuminated push-button Series installation.
Buttons + Switches
EUR32,90
Gewiss GEWI GW96568 Illuminated push-button Series installation unit 1 NO contact +
