Best selling Buttons + Switches from TE Sensors
On this page you’ll find a ranking of the best Buttons + Switches from TE Sensors. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

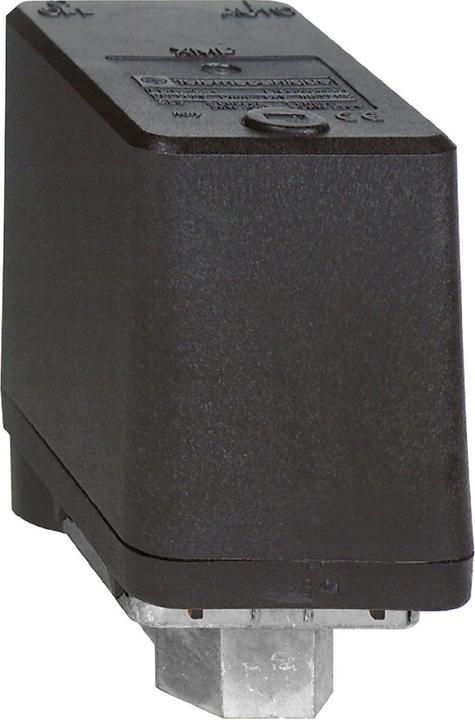

1. TE Sensors Pressure Switch
The XMP switches are electromechanical pressure switches for control circuits. They are used for pressure regulation of water and air. This is an IP54 switch with an adjustable differential for regulation between two threshold values, without a decompression valve. The switch has an open housing. The adjustable switching point range is from 1 bar to 6 bar or from 14.5 psi to 87 psi. It features three normally open contacts, a G 1/4 internal fluid connection, and two threaded entries for cable glands size No. 13.
2. TE Sensors Diaphragm press switch,0.6-10bar M20
The Telemecanique Sensors pressure switch XMLA010A2S12 is an electromechanical device designed for use in various applications where pressure monitoring is required. With a pressure range of 0.6 to 10 bar, this switch is ideal for use with hydraulic oils, fresh and seawater, as well as air up to a temperature of 160 °C. The pressure switch offers both non-adjustable and adjustable hysteresis options, allowing for flexible adaptation to different operating conditions. Connection is made via an M20 x 1.5 thread, ensuring easy integration into existing systems. The XMLA pressure switch is robust and reliable, making it an excellent choice for industrial applications where precision and durability are essential.
- Adjustable hysteresis in the range of 1-500 bar
- Maximum test pressure of 22.5 bar
- Operating temperature up to 160 °C
- Suitable for various media such as hydraulic oils and air
- Robust design for industrial applications.
3. TE Sensors PRES TRANS 10BAR 0-10V G1 4A
STHU OsiSense XM Pressure Switch XMLP010BD71F
Manufacturer: STHU
Designation: OsiSense XM Pressure Switch
Type: XMLP010BD71F
Suitable as a guardian: yes
Suitable as a 2-point controller: no
Suitable as a limiter: no
Max. operating pressure: 10000 hPa
Switch-on pressure: 0..10 bar
Initial setting: 0..10000 hPa
Switch-off pressure: 0..10 bar
Final setting: 0..10000 hPa
Max. test pressure: 20 bar
Burst pressure: 30 bar
Medium temperature: -20..120 °C
Thread size: other
Rated operating voltage Ue at DC: 24 V
End value measuring range pressure: 1000000 Pa
Design of electrical connection: other
With manual operation: no
With manual on/off switch: no
Electronic design: yes
With display: no
Explosion-proof: no
Protection class (IP): IP65/IP67
Protection class (NEMA): other
Diameter: 26 mm
Depth: 38.1 mm
This electronic pressure sensor XMLP has a nominal pressure of 10 bar, an electrical connection with M12 connector, and a fluid connection with G 1/4 a DIN 3852-e connector. This high-pressure transmitter is designed for precise pressure control of air, fresh water, between 0 °C and +120 °C, cooling fluids, and hydraulic oils. It is also suitable for all liquids compatible with stainless steel AISI 304, between -30 °C and +120 °C. It is mounted directly on the pipe and offers high corrosion resistance from stainless steel AISI 316L as well as a pressure chamber made of fluorocarbon resin for maximum durability. With a mechanical lifespan of 10 million cycles, it ensures minimal maintenance for your pressure medium circuits. It complies with EN/IEC 61326-2-3, RCM, cULus, and EAC. Its very short housing makes it ideal for installation in tight piping. This product replaces XMLP010BD71V.

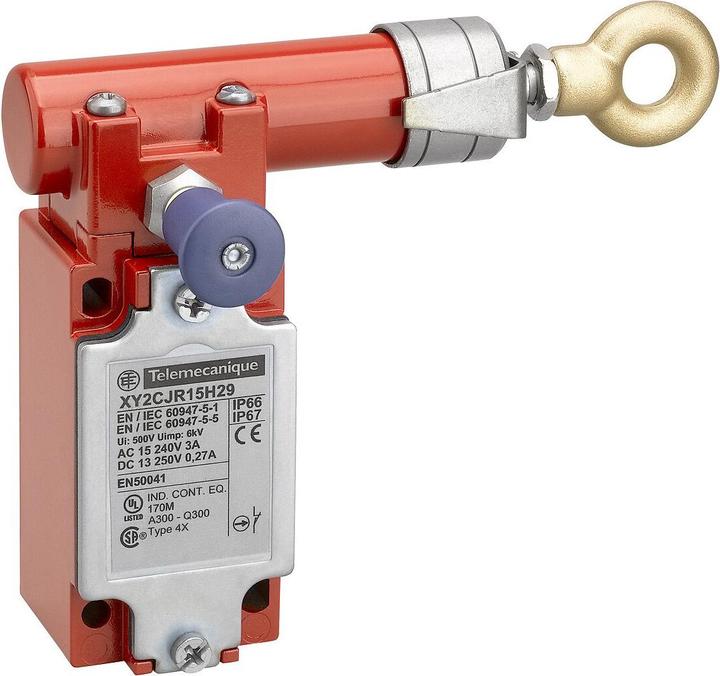

4. TE Sensors Rope Pull Switch, RH, ISO M20, 2NC 1NO
Area: Emergency Stop
Series: XY2CJ
Reset Button: Yes
Contact Configuration: 3P
Contact Configuration: Normally Closed/2 Normally Open
Mounting Position: Right
Maximum Cable Span: 30 m
Maximum Current: 1.5 A at 240 V AC, 100 mA at 250 V DC
Maximum AC Voltage: 240 V
Maximum DC Voltage: 250 V
Housing Material: Zamak
Number of Cable Entries: 1
Cable Entry Size: M20
Width: 64.2 mm
CE, UL, cULus, NiDS, CCC. IEC 60947-5-5. Emergency Stop Pull Switch XY2CJ, Telemecanique. The Preventa XY2CJ emergency stop pull switches from Telemecanique are designed to prevent harm to people and machines when a standard emergency stop function is not available. They are easy to install and provide quick visual confirmation of the switch status for machine restart. Typical applications include woodworking machines, shears, conveyor systems, printing machines, textile machinery, rolling mills, test laboratories, paint shops, and surface treatment operations. Certified according to UL with NiSD per IEC 60947-5-5 and UL NiSD object category. An integrated spring ensures functionality is maintained in the event of a spring failure. Quick installation and adjustment with tensioning accessories. Color-coded sections (green and yellow) on the pull release switch provide easy visual confirmation of the switch status for rapid machine restart. Up to 20 m cable length for XY2CJS and up to 30 m cable length for XY2CJL & XY2CJR. Rotating head with four positions, rotatable by 90°. Various electrical connection options available. Protection rating IP66/IP67.
5. TE Sensors Grab Wire Safety Switch Xy2cea296
The XY2CEA296 rope pull safety switch from Telemecanique Sensors is a reliable safety device designed for use in industrial applications. This rope pull emergency switch allows for safe and effective emergency shutdowns over rope lengths of up to 70 meters. With a robust, metal-encapsulated housing that meets the IP66 protection rating, the switch is optimally protected against dust and water. The adjustable actuation path ensures flexible adaptation to various applications, while the integrated reset button with a protective cover provides additional safety. The XY2CEA296 is designed for a maximum pulling force of 19.5 to 24.5 daN and meets international safety standards, including UL, CSA, and CCC. This product is ideal for use in demanding environments where safety and reliability are of utmost importance.
- Metal-encapsulated housing with IP66 protection rating
- Adjustable actuation path for flexible applications
- Maximum rope length of 70 meters
- Pulling force range of 19.5 to 24.5 daN
- Meets international safety standards (UL, CSA, CCC).

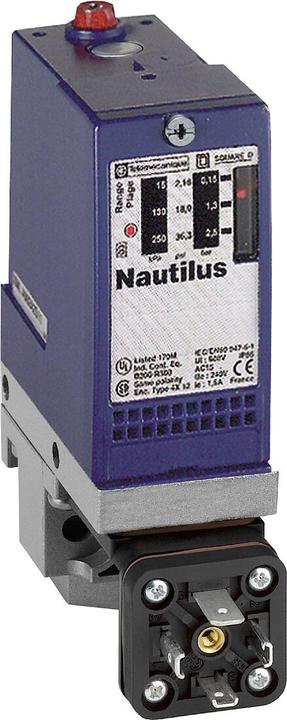

6. TE Sensors PRESS SWITCH:20 TO 300 BAR DIN
The specified pressure applies per cycle and occasionally. OsiSense XMLA pressure switches. Schneider Electric XMLA pressure switches for control circuits are used to monitor the pressure of hydraulic oils, fresh water, seawater, air, steam, corrosive liquids, or viscous products. The XMLA pressure and vacuum switches have a fixed differential and are designed to detect a single threshold. Fixed differential, external pressure adjustment window available, switching contacts: 1 normally closed and 1 normally open. Temperature range: –25 to +70 °C. Protection class: IP65 with plug connector, IP66 with terminal connections. Operating rate: up to 120 switching cycles/min for membrane and 60/min for piston. Media connection: 1/4 inch NPT. Conduit connection: 1/2 inch NPT.
7. TE Sensors 1.3-12BAR ADJ DIFF PRESS SW
The XMX type pressure switches feature an internal adjustment screw that is only accessible after removing the cover. OsiSense XMX pressure switches. The XMX series pressure switches from Schneider Electric are designed for control circuits, with adjustable differential. They are used to control water and air pressure up to 25 bar. Adjustable differential pressure with a snap action contact: 1 changeover contact. Temperature range: -25 to +70 °C. Enclosure protection rating: IP54.
8. TE Sensors Grab wire safety switch, 2NC
Range: Preventa
Series: XY2-CH
Reset button: Yes
Contact configuration: 2 NC contacts
Rope span max.: 15 m
Max. current: 3 A AC, 270 mA DC
AC voltage max.: 240 V
DC voltage max.: 250 V
Number of cable entries: 1
Cable entry: PG13.5
Size of cable entries: PG13.5
Depth: 95 mm
UL approval file number: E164353 CCN NKCR. CSA approval file number: LR44087 class 3211 03. CE marking. Manufacturer part numbers with the suffix H29 are versions with cable entry with ISO-M20 thread. The XY2-CH emergency stop pull-wire switch, also known as a gripper wire switch, is ideal for applications such as conveyor belt systems, packaging, textile and transfer machines, presses, woodworking machinery, paint lines, and test laboratories. Recommended distance between cable holders: 5 m. Integrated twist lock reset by push button. Water- and dustproof housing. Surface mounting.
9. TE Sensors Cylindrical safety switch,M12,1NC 1NO
The cylindrical safety switch M12 from Telemecanique Sensors is a reliable solution for various applications in automation technology. With a compact diameter of 30 mm and a length of 38.5 mm, this switch allows for easy integration into existing systems. It is equipped with a rated voltage of 24 volts and a rated current of 100 milliamperes, making it ideal for use in safety-related applications. The high protection rating of IP67 ensures that the switch is dust-tight and protected against temporary immersion in water, making it particularly suitable for use in harsh environments. The switch comes with a magnet that enables precise and reliable actuation. The certification according to Class II EN/IEC 61140 emphasizes the safety and quality of the product.
- High protection rating IP67 for harsh environments
- Certified according to Class II EN/IEC 61140
- Compact design for easy integration
- Reliable actuation through integrated magnet.
10. TE Sensors Pressure sensor 40BAR 4-20MA G1 4A
The OsiSense XM pressure sensor from Telemecanique Sensors is a high-precision measuring device designed for a variety of industrial applications. With a pressure range of 0 to 40 bar and a robust housing made of stainless steel AISI 316L, this sensor offers reliable performance in demanding environments. The sensor features an analog output of 4-20 mA, allowing for easy integration into existing systems. Electrical connections are made via a 4-pin M12 connector or DIN 3852-A, facilitating installation and replacement. The sensor is suitable for use with various media such as hydraulic oils, gases, and refrigerants, and provides a high protection rating of IP65 and IP67, safeguarding it against dust and water. With an operating temperature range of -30 to +85 °C, the sensor is versatile and meets the requirements of modern industrial applications.
- Robust stainless steel housing (AISI 316L) for high durability
- Analog output of 4-20 mA for easy integration
- Suitable for various media such as hydraulic oils and gases
- High protection rating IP65/IP67 for reliable operation in harsh environments
- Operating temperature range of -30 to +85 °C for versatile applications.
