Best selling Cables + Plugs from Helukabel
Here you’ll find the best Cables + Plugs from Helukabel. The ranking is based on the best-selling products from this brand within the category. In addition to sales volume, factors such as availability, pricing, and overall customer relevance also influence the order. For each product, we include a short description and the most important highlights from customer reviews, giving you a quick overview of the most popular Helukabel options. This page always stays fresh and updates automatically.
1. Helukabel 806481 Sensor/actuator connector, assembled M12 plug, straight
The Helukabel 806481 sensor/actuator connector is a pre-assembled connection cable with a straight M12 plug, specifically designed for use in drag chains. With a cable length of 0.50 m and 4 poles, this connector provides a reliable connection for sensors and actuators in industrial applications. The PUR jacket offers high resistance to oil and is halogen-free, making it an environmentally friendly choice. The IP67 protection class ensures that the connector is dust-tight and protected against temporary immersion in water. The temperature range of -25 °C to +85 °C allows for use in various environments, while the screw-lock type guarantees a secure connection. This connector is RoHS compliant, meeting the requirements for environmentally friendly materials.
- IP67 protection class for dust and water resistance
- Oil-resistant and halogen-free PUR jacket
- Temperature range of -25 °C to +85 °C
- Suitable for use in drag chains
- RoHS compliant for environmentally friendly applications.
2. Helukabel 805966
3. Helukabel Stranded wire 0.5mm² 20AWG Black Halogen Free
This flexible black 0.5mm² stranded wire is perfect for Arduino electronics projects, to wire up a control cabinet or the like. This halogen-free stranded wire is suitable as a control wire or for power supply.
Info: 1 quantity unit corresponds to 1 metre and is delivered in one piece. We do not charge extra for cutting to size.
Technical details:
Description: stranded wire 0.5mm² halogen-free 90°C black RAL 9005, H05Z-K
Diameter: 2.6mm
Construction: Copper flexible, class 5
Halogen free: Yes
Flame retardance: IEC 60332-1
Temperature range moved +5°C to +90°C
Weather resistance limited, not UV-resistant
Standards H05Z-K
Nominal operating voltage Uo/U: 450V/750V
Max. permissible operating voltage: 750V
Test voltage: 2500V
Weight per m: 7g
Scope of delivery:
1m stranded wire 0.5mm² 20AWG Black Halogen-free.
4. Helukabel Sensor/actuator connectors assembled
The Helukabel 806484 sensor/actuator connector is a pre-assembled connection cable specifically designed for use in industrial applications. With a length of 3.00 m and a pin count of 4, this M12 connector provides a reliable connection for sensors and actuators. The straight design of the connector allows for easy installation in tight spaces. The PUR jacket ensures high flexibility and resistance to oil, making it ideal for use in drag chains. Additionally, the connector is RoHS compliant and offers an IP67 protection rating, safeguarding it against dust and water. The operating temperature ranges from -25 °C to +85 °C, allowing for a wide range of applications in various environments.
- RoHS compliant and IP67 protection rating for high reliability
- Oil-resistant PUR jacket for use in demanding environments
- Temperature range of -25 °C to +85 °C for versatile applications
- Straight design of the connector for easy installation
- 4-pole connection for sensors and actuators.

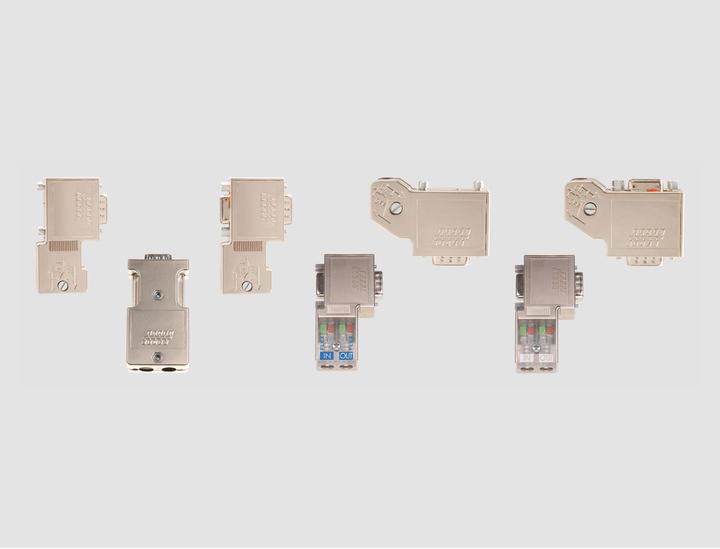

5. Helukabel 803844 Sensor/actuator distributor and adapter Angled plug 10 pcs.
6. Helukabel 805967
