1. Moxa CP-132EL-I-DB9M - 2-port RS-422485 low-profile PCI Express x1 serial board with optical isolation

The CP-132EL-I-DB9M is a serial PCI Express x1 card equipped with two RS-422/485 ports and features optical isolation. This controller card is ideal for applications requiring reliable serial communication. It supports a wide range of baud rates from 50 bps to 921.6 kbps and is compatible with various operating systems, including Windows and Linux. The card is equipped with a Comm. Controller that is compatible with the 16C550C and offers a FIFO size of 128 bytes. The 2 kV optical isolation protects connected devices from surges and interference, enhancing communication reliability. The integrated Tx and Rx LEDs allow for easy monitoring of data transmission. This card is an excellent choice for industrial applications that require a robust and versatile serial interface.

- 2 kV optical isolation for increased safety
- Supports baud rates from 50 bps to 921.6 kbps
- Compatible with a variety of operating systems, including Windows and Linux
- Integrated Tx and Rx LEDs for monitoring data transmission
- Maximum of 8 cards per PC for expanded connectivity. more

Controller cards

EUR299,–

Moxa CP-132EL-I-DB9M - 2-port RS-422485 low-profile PCI Express x1 serial board with optical isolation

2. Moxa CP-602U-I W/O CABLE - 2-port CAN bus Universal PCI board with 2 kV electrical isolation, 0 to 55C op

Moxa 2-Port UPCI CANbus Serial Board with DB9M Ports and Optical Isolation

Description
The new CAN (Controller Area Network) interface card CP-602U-I from Moxa supports the Universal PCI interface. As a standalone CAN controller, the CP-602U-I offers a cost-effective solution with two active CAN controllers featuring DB9 connections on the same card. The CP-602U-I CAN interface card utilizes the NXP SJA1000 and the PCA82C251 transceiver, which handle bus arbitration and error detection. With an extended operating temperature range of -40 to 85 °C (only CP-602U-I-T) and 2 KV isolation, the boards are suitable for use in harsh industrial environments.

Features
- Supports CAN 2.0A and CAN 2.0B
- Two independent CAN communication ports
- CAN transmission rate up to 1 Mbps
- 2 KV optical isolation protection
- LED for transmit/receive status on each port
- Optional 120-ohm termination resistor for CAN bus network
- DLL library and examples included
- Windows driver included. more

Controller cards

EUR439,–

Moxa CP-602U-I W/O CABLE - 2-port CAN bus Universal PCI board with 2 kV electrical isolation, 0 to 55C op

3. Moxa CP-138U - Serial universal PCI card with 8 connections RS-422485, operating temperature 0 to 55 °C

The CP-118U and CP-138U are intelligent serial universal PCI cards with 8 ports, designed for POS and ATM applications as well as for use by manufacturers of industrial automation systems and system integrators. Both cards are compatible with all major operating systems. Additionally, the 8 RS-232/422/485 ports of the CP-118U and the 8 RS-422/485 ports of the CP-138U support data rates of up to 921.6 kbps and provide full modem control signals to ensure compatibility with a variety of serial peripherals. The CP-118U and CP-138U support both 3.3V and 5V PCI buses, making them suitable for installation in most PC servers.

Drivers for Windows, Linux, and UNIX
Moxa supports a wide range of operating systems, and the serial cards CP-118U and CP-138U are no exception. Reliable Windows and Linux/UNIX drivers are provided for all Moxa cards, and other operating systems, such as WEPOS, are also supported for embedded integration.

Serial Interface
- Communication controller MU860 (compatible with 16C550C)
- Bus 32-bit Universal PCI
- Connector DB62 female
- FIFO 128 bytes
- Max. number of cards per PC 8
- Number of ports 8
- Serial standards RS-422, RS-485
- Baud rate 50 bps to 921.6 kbps
- Data bits 5, 6, 7, 8
- Stop bits 1, 1.5, 2
- Parity None, Even, Odd, Space, Mark
- Flow control None, XON/XOFF

Serial Signals
- RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422 Tx+, Tx-, Rx+, Rx-, GND
- RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w Data+, Data-, GND

Serial Software Functions
- Windows Drivers
DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
- Linux Drivers Linux Kernel 2.4.x, Linux Kernel 2.6.x, Linux Kernel 3.x, Linux Kernel 4.x, Linux Kernel 5.x
- UNIX Drivers QNX 6, SCO OpenServer,... more

Controller cards

EUR409,–

Moxa CP-138U - Serial universal PCI card with 8 connections RS-422485, operating temperature 0 to 55 °C

4. Moxa CP-132N-T - Serial Mini PCI Express card with 2 RS-422485 connections

The CP-132N-T is a serial mini PCI-Express card equipped with two RS-422/485 ports. This controller card is designed for use in demanding environments and offers an operating temperature range of -40 to 85 °C. It features a 16C550C-compatible communication controller and supports a variety of baud rates from 50 bps to 921.6 kbps, including non-standard baud rates. The card is ideal for applications requiring reliable serial communication and provides robust isolation of 2.5 kV. Its physical dimensions are 30 x 50.95 mm, making it compact and easy to integrate into various systems. The CP-132N-T supports both Windows and Linux operating systems, enhancing its versatility and making it suitable for a range of applications.

- Operating temperature of -40 to 85 °C for use in extreme environments
- Supports baud rates from 50 bps to 921.6 kbps, including non-standard baud rates
- Compatible with Windows and Linux operating systems
- Robust isolation of 2.5 kV for increased safety
- Compact dimensions of 30 x 50.95 mm for easy integration. more

Controller cards

−10%

EUR179,– was EUR199,–

Moxa CP-132N-T - Serial Mini PCI Express card with 2 RS-422485 connections

5. Moxa CP-102U - 2-port RS-232 Universal PCI serial board, 0 to 55C operating temperature

2-port RS-232 universal PCI serial board, 0 to 55°C operating temperature

Serial Interface

Communication Controller: MU860 (16C550C compatible)
Bus: 32-bit universal PCI
Connector: 2 x DB9 male
Max. Number of Boards per PC: 8
Number of Ports: 2
Serial Standards: RS-232
Baudrate: 50 bps to 921.6 kbps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Serial Software Features

Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD

Power Parameters

Input Current: 93 mA @ 5 VDC

Physical Characteristics

Dimensions: 80 x 120 mm (3.15 x 4.72 in)

LED Interface

LED Indicators: Built-in Tx, Rx LEDs for each port

Environmental Limits

Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class B
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
International Approval: KC

Declaration

Green Product: RoHS, CRoHS, WEEE

MTBF

Time: 574,050 hrs
Standards: MIL-HDBK-217F. more

Controller cards

EUR83,90

Moxa CP-102U - 2-port RS-232 Universal PCI serial board, 0 to 55C operating temperature

6. Moxa CP-114UL W/O CABLE - 4-Port RS-232422485 Low-Profile Universal PCI Card

The CP-114UL W/O CABLE is a versatile 4-Port RS-232/422/485 Low-Profile Universal PCI card designed for use in various industrial and commercial applications. This controller card enables reliable serial communication and supports a range of serial standards, including RS-232, RS-422, and RS-485. With an operating temperature range of 0 to 55°C, it is suitable for use in diverse environments. The card is equipped with a 32-bit Universal PCI bus and offers a maximum baud rate of 921.6 kbps, making it ideal for high data volume applications. The built-in Tx and Rx LEDs allow for easy monitoring of data transmission. The CP-114UL is compatible with drivers for various operating systems such as Windows and Linux, facilitating its integration into existing systems.

- Supports serial standards RS-232, RS-422, and RS-485
- Maximum baud rate of 921.6 kbps for high data transfer rates
- Compatible with a variety of operating systems, including Windows and Linux
- Built-in Tx and Rx LEDs for monitoring data transmission
- Operating temperature range of 0 to 55°C for versatile applications. more

Controller cards

−7%

EUR259,– was EUR279,–

Moxa CP-114UL W/O CABLE - 4-Port RS-232422485 Low-Profile Universal PCI Card

7. Moxa CP-168U-T - Serial RS-232 Universal PCI card with 8 ports

The CP-168U-T is a serial RS-232 Universal PCI card from Moxa, specifically designed for industrial applications. With eight ports, this card provides reliable serial connectivity and is built for use in demanding environments. It supports a wide operating temperature range of -40 to 85 °C, making it ideal for various industrial applications. The card features a 32-bit Universal PCI bus and allows for a high baud rate of up to 921.6 kbps. The CP-168U-T comes with extensive driver support for various operating systems, including Windows and Linux, facilitating integration into existing systems. Additionally, the card has built-in LED indicators for monitoring data transmission, simplifying troubleshooting and maintenance.

- Operating temperature range of -40 to 85 °C for industrial applications
- Supports up to 8 serial RS-232 ports
- Maximum baud rate of 921.6 kbps for high data transfer rates
- Comprehensive driver support for Windows and Linux
- Built-in LED indicators for monitoring data transmission. more

Controller cards

−7%

EUR259,– was EUR279,–

Moxa CP-168U-T - Serial RS-232 Universal PCI card with 8 ports

8. Moxa CP-138U-T - 8-port RS-422485 Universal PCI serial board, -40 to 85C operating temperature

Moxa's commitment as a reliable provider of serial connectivity is evident through our long-term dedication to serial products and the availability of services. Our serial PCI Express, Universal PCI, and PCI cards are designed for industrial applications and include models that operate reliably across a wide temperature range.

8-Port RS-422/485 Universal PCI card, operating temperature -40 to 85 °C. more

Controller cards

EUR419,–

Moxa CP-138U-T - 8-port RS-422485 Universal PCI serial board, -40 to 85C operating temperature

9. Moxa CP-114EL-DB25M - 4-port RS-232422485 low-profile PCI Express x1 serial board (includes DB25 male

Moxa's commitment to being a reliable serial connectivity provider is reflected in our long-term dedication to serial products and service availability. Our PCI Express, Universal PCI, and PCI serial cards are designed for industrial applications and include models that operate reliably over a wide temperature range.

4-Port RS-232/422/485 Low-Profile PCI Express x1 Serial Card (includes DB25 male cable)

Serial Interface
- Communication Controller: 16C550C compatible
- Bus: PCI Express 1.0
- Connector: DB44 female
- FIFO: 128 Bytes
- Maximum number of boards per PC: 8
- Number of ports: 4
- Serial standards: RS-232, RS-422, RS-485
- Baud rate: 50 bps to 921.6 kbps (supports non-standardized baud rates)
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF

Serial signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND

Serial software functions
- Windows driver: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
- Linux drivers: Linux kernel 2.4.x, 2.6.x, 3.x, 4.x, 5.x
- UNIX driver: QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6

Performance parameters
- Input current: 835 mA @ 3.3 VDC

Physical properties
- Dimensions: 67.21 x 103 mm (2.65 x 4.06 in)

LED interface
- LED indicators: Built-in Tx, Rx LEDs for each port

Environmental conditions
- Operating temperature: 0 to 55°C (32 to 131°F)
- Storage temperature (including packaging): -20 to 85°C (-4 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)

Standards and certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class B
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz. more

Controller cards

−7%

EUR279,– was EUR299,–

Moxa CP-114EL-DB25M - 4-port RS-232422485 low-profile PCI Express x1 serial board (includes DB25 male

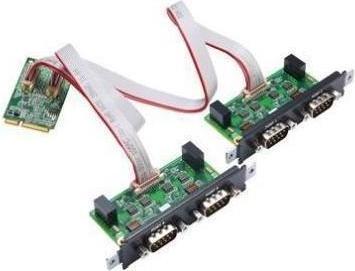

10. Moxa CP-104N-I-T - 4-port RS-232 Mini PCI Express serial board with 2.5 kV capacitive isolation,-40

The CP-104N-I-T is a serial RS-232 Mini PCI Express card equipped with four ports and offers capacitive isolation of 2.5 kV. This controller card is designed for use in demanding environments and supports operating temperatures ranging from -40 to 85 °C. It is compatible with the 16C550C communication controller and enables flexible data transmission with baud rates from 50 bps to 921.6 kbps. The card features a DB9 connector and provides a variety of serial standards and configuration options, including different data bits, stop bits, and parity options. The CP-104N-I-T is ideal for applications requiring reliable serial communication and offers extensive support for various operating systems, including Windows and Linux.

- Operating temperature range of -40 to 85 °C for extreme environments
- Capacitive isolation of 2.5 kV for enhanced safety
- Supports baud rates from 50 bps to 921.6 kbps, including non-standard rates
- Compatible with Windows and Linux operating systems
- Meets various EMC and EMI standards for reliable performance. more

Controller cards

−5%

EUR519,– was EUR549,–

Moxa CP-104N-I-T - 4-port RS-232 Mini PCI Express serial board with 2.5 kV capacitive isolation,-40
