Best Doepke products in the Electronics supplies + Casing category

On this page you'll find a ranking of the best Doepke products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

1. Doepke Phase bar EV-S G 3.1+N.12.120 ** FI/LS 10qmm fork 4-pole 12TE 120A

Doepke Phase Rail EV-S G 3.1+N.12.120

Manufacturer: Doepke
Designation: Phase Rail
Type: EV-S G 3.1+N.12.120
Number of Phases: 3
Number of Poles: 4
Suitable for Number of Devices: 6
Division Size: 17.5 mm
Cross Section: 10 mm²
Length: 212 mm
Width in Division Units: 12
Rated Continuous Current Iu: 63 A
Type of Electrical Connection: Fork
Insulated: Yes
Rated Impulse Voltage: 4.5 kV
Conditional Rated Short-Circuit Current Iq: 15 kA
Max. Rated Operating Voltage Ue: 690 V
Rated Short-Time Current Strength Icw: 15 kA
Suitable for Devices with Neutral Conductor: Yes
Suitable for Devices with Auxiliary Switch: No
Color: Gray

Doepke Phase Rail EV-S G 3.1+N.12.120: Additional Details
These components for wiring circuit breakers in industrial, commercial, and residential electrical distribution boards significantly reduce installation effort. The pre-cut busbars of the Eurovario system are suitable for the supply-side connection of residual current circuit breakers, miniature circuit breakers, and RCD/MCB combinations on the underside of the devices. The rails are designed in fork shape and are available in a wide variety of configurations from one to four poles (some with space for auxiliary switches). The touch protection EV-S BS covers unused connections.

Features:
- Usable for connecting residual current circuit breakers, miniature circuit breakers, and RCD/MCB combinations
- Wide variety of options
- Significant time savings in wiring

Mounting Type: The rails are inserted into the upper or lower terminal blocks of the devices to be connected.

Areas of Application: Busbars of this series are used in conjunction with RCCB, MCB, and RCBO in power supplies for residential and purpose-built buildings as well as industrial plants.

Notes: When feeding miniature circuit breakers from above in combination with Doepke residual current circuit breakers, the connection rails EV-S G ANL (N left) or EV-S G ANR (N right) must be used.

EAN: 4014712045958.

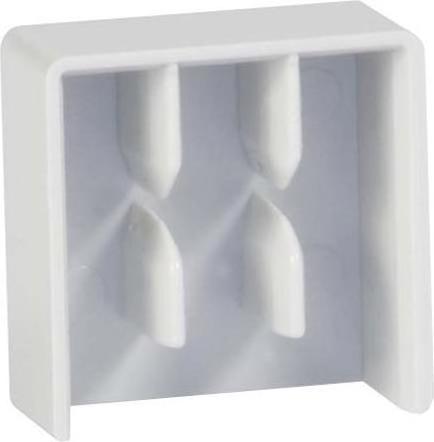

2. Doepke End cap

Doepke end cap EK-2/3/10/16
Manufacturer: Doepke
Designation: End cap 2+3-pole
Type: EK-2/3/10/16
Type of accessory/spare part: Contact protection cover
End piece
Accessory: Yes
Spare part: No

Doepke end cap EK-2/3/10/16: more details
Covers and caps protect live connections. End caps of the EK series cover open ends of cut-to-length D0 and FI/LS busbars.
EAN: 4014712015425.

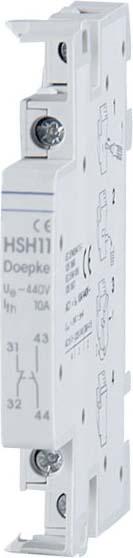

3. Doepke DOEP HSH 11 Auxiliary switch HS25/40 Auxiliary switch HSH 11, for

Doepke HSH 11 HS25/40 auxiliary switch.

4. Doepke Contact protection EV-S BS 09920160

Covers and caps secure live connections. Touch protection caps cover open connections on busbars or phase bars. The EV-S-BS touch protection caps are suitable for bars with fork terminals. Their bright color warns of dangerous touch voltages. Features: Touch protection cover for five fork terminals, striking yellow material color, mounting type: 5-cap for push-on installation. Areas of application: The touch protection cap is used wherever fork terminals on busbars or phase bars are unoccupied and thus accessible in the distribution.

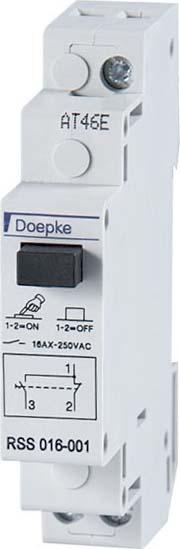

5. Doepke DOEP RSS 016-001 Control switch Control switch RSS 016-001

Control switches are used to operate electrical consumers or generate static signals for controls. The compact control switches of the RSS series can switch high rated currents. They are flexible in use thanks to many different contact designs. This version is operated via a pushbutton and is available with an LED to indicate the switching status. Features: Switching via button (black), versions with different rated currents, contact configurations with or without orange LED available, non-losing lift terminals with back insertion and touch protection, large terminal cross-section, compact design, mounting type: quick mounting on mounting rail, installation position arbitrary. Areas of application: The components offer universal applications for control tasks in industrial and building technology as well as in home installation.

6. Doepke DOEP RS 012-100 Circuit breaker RS 012-100, 12V AC, 1 pole 16A, 1 NO (

Doepke RS 012-100 circuit breaker 12V.

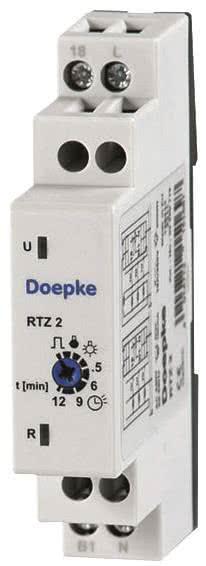

7. Doepke DOEP RTZ2 Staircase lighting timer 230VAC 1 NO TW 1

Stair light time switches control stairwell and corridor lighting. They turn off manually switched-on lights after a preset time. The RTZ series offers a variety of functions and flexibly usable control inputs. The device can be switched on and off via the connected buttons. There are many different operating modes to choose from.

Features:
- Time delay adjustable over a wide range from 0.5 min to 12 min
- LEDs for displaying supply voltage and the status of the output relay
- Quiet switching contact for 250 V AC and continuous currents of 10 A (devices connected in series) or 16 A (devices not connected in series)
- Control input with overload protection and a maximum incandescent load of 100 mA
- Operating voltage 230 V AC
- Automatic 3-/4-wire detection
- Screw terminal connections also for large cross-sections
- Compact design
- Mounting type: Quick fastening on mounting rail
- Installation position arbitrary

Areas of application: Suitable for all rooms where energy savings can be achieved through automatic lighting shutdown, e.g. stairwells, corridors, or storage rooms in residential or commercially used buildings.

Notes: For continuous currents over 10 A, a minimum distance of 5 mm must be maintained between devices.

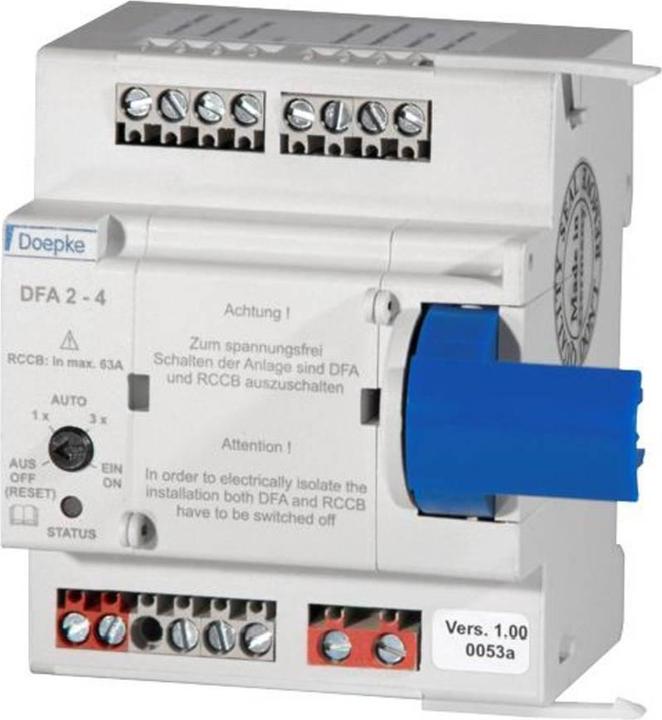

8. Doepke DOEP 09100115 DFA 2 - 4 230V AC

Doepke DFA 2-4 remote drive 230V AC/DC.
