Best JUNG products in the Electronics supplies + Casing category
On this page you'll find a ranking of the best JUNG products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

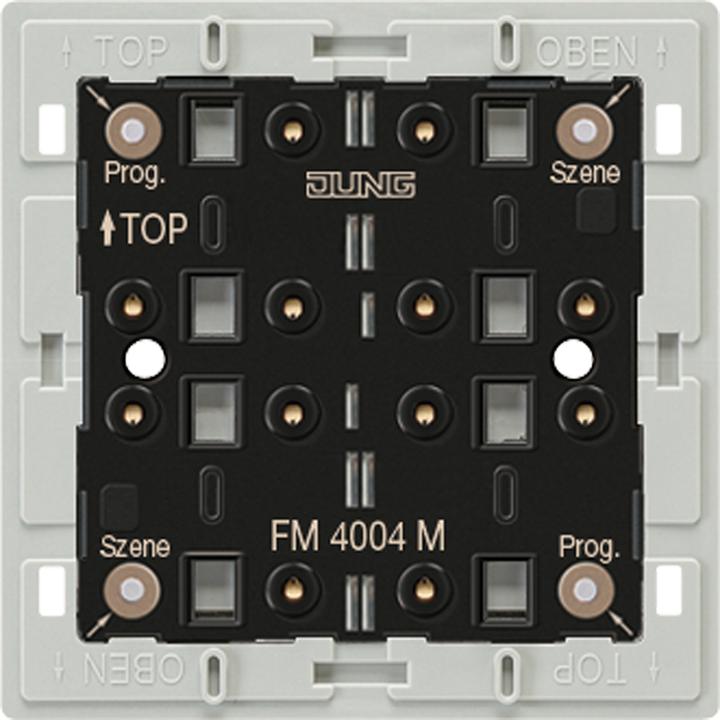

1. JUNG Radio wall transmitter module
Jung Wireless Wall Transmitter Module FM 4004 M
Manufacturer: Jung
Designation: Wireless Wall Transmitter Module 4-channel
Type: FM 4004 M
With remote control: no
Wall transmitter: yes
Window transmitter: no
With remote control: no
Signal transmission: wireless
Number of channels: 4
Mounting type: surface-mounted
Halogen-free: yes
Transparent: no
Range: 100 m
Suitable for switches: yes
Suitable for dimmers: yes
Suitable for blind switches: yes
Suitable for display elements: no
Further details:
For 4-button set, Item No.: 404 TSA
For 4-button with symbols, Item No.: 404 TSAP
Includes mounting plate, adhesive film, and mounting screws
Not compatible with frames from the FLAT DESIGN series.
4 green LEDs: actuator status
1 red LED: transmission status
New system feature: Fully encrypted wireless transmission (AES-CCM) from eNet Server software version 2.0
Intended use:
Wireless sensor for transmitting switching, dimming, blind control, and scene commands
Operation with wireless actuators from the eNet system
Mounting on device box according to EN 60670-1, screw mounting on walls or adhesive mounting on smooth surfaces (glass panels)
Product features:
Each push button is divided into an upper and lower half, belonging to one channel
Display of actuator status upon status inquiry via a green LED per channel
Display of transmission status via a red LED
Switch-on brightness of dimmers can be saved
Battery-operated device
Transmission error signaling can be disabled
Adjustable with eNet server: Scene All-On
Operation locks
Additional functions with eNet server: Fully encrypted wireless transmission (AES-CCM) from eNet Server software version 2.0
Device software update
EAN: 4011377086982.

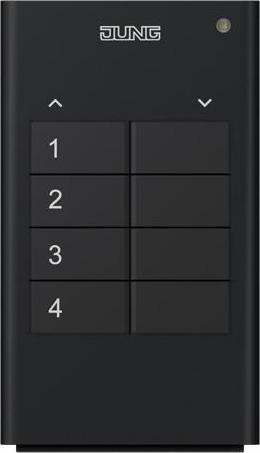

2. JUNG radio hand-held transmitter
Jung radio hand-held transmitter, 4-channel FM HS 4
Manufacturer: Jung
Designation: Radio hand-held transmitter, 4-channel
Type: FM HS 4
With hand-held transmitter: Yes
Wall transmitter: No
Window transmitter: No
With remote control: Yes
Signal transmission: Radio
Number of channels: 4
Material: Plastic
Halogen-free: Yes
Surface protection: Other
Finish: Matt
Color: Anthracite
Transparent: No
Range: 100 m
Suitable for switches: Yes
Suitable for dimmers: Yes
Suitable for blind switches: Yes
Suitable for display element: No
More details:
New system function: Fully encrypted radio transmission (AES-CCM) from eNet server software version 2.0
Intended use: Hand-held transmitter for radio transmission of switching, dimming, blind movement, and scene commands. Operation with radio actuators from the eNet system.
Product features:
- Two adjacent buttons each belong to one channel
- Status display with LED
- Switch-on brightness of dimming actuators can be stored
- Battery-operated device
- Scenes: All-off, seven individual scenes
- Signaling of transmission errors can be switched off
- Can be set with eNet server: Scene All-on, Operation locks
- Additional functions with eNet server: Fully encrypted radio transmission (AES-CCM) from eNet server software version 2.0, Update of device software, Read out error memory
Rated voltage: DC 3 V
Battery type: 1 x lithium CR 2450N (included)
Ambient temperature: -5 to +45 °C
Dimensions (L x W x H): 93 x 53 x 15.5 mm
Radio frequency: 868.0 to 868.6 MHz
Transmitting power: Max. 20 mW
Transmitting range in free field: Typ. 100 m
Receiver category: 2
EAN: 4011377086647.

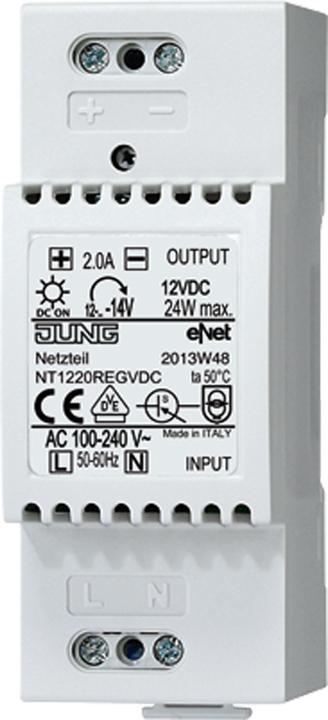

3. JUNG JG NT1220REGVDC Power supply unit 12V REG
The JG NT1220REGVDC power supply from JUNG is a reliable DC power supply designed for rail mounting. With an output voltage of 12 V and a maximum output current of 2 A, this power supply is ideal for various applications in the field of electrical engineering. It is particularly suitable for use with eNet radio reception modules and eNet servers. The device is designed to operate with an input voltage of 100 to 240 V AC, providing high flexibility in different power supply environments. Its compact design, with a width of 36 mm, allows for easy integration into existing systems. The power supply is equipped with screw terminals that ensure a secure and stable connection. Weighing only 0.16 kg, it is also lightweight and handy.
- Suitable for rail mounting with a width of 36 mm (2 TE)
- Maximum output current of 2 A for reliable performance
- Input voltage of 100 to 240 V AC for versatile applications
- Equipped with screw terminals for secure connections
- Lightweight design with a weight of only 0.16 kg.
