Best selling Electronics supplies + Casing from RS PRO
On this page you'll find a ranking of the best RS PRO products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. RS PRO Grey IP66 Enclosure 220x120x90mm
Housing material: PET
Sealing material: Silicone
Length outside: 220 mm
Width outside: 120 mm
Height outside: 90 mm
IP protection class: IP66
Color: Gray
Cover color: Gray
With flange: No
Shielded: No
Universal polyester enclosure with neoprene gasket. The universal polyester enclosure is available in two colors: black or gray. It has IP66 protection and is equipped with a neoprene gasket.
Features and benefits:
- Polyester enclosure
- IP66 protection
- Neoprene gasket
- Operating temperature: -40 °C to +100 °C
- Halogen-free
- Self-extinguishing, UL 94-V0
Scope: This general-purpose polyester enclosure is suitable for wet area applications as well as outdoor applications.
2. RS PRO Grey aluminium box,222.3x146x106.7mm
Housing material: Die-cast aluminum
Dimensions (outside): 222.2 x 146 x 106.5 mm
Length (outside): 222.2 mm
Width (outside): 146 mm
Height (outside): 106.5 mm
Color: Gray
Lid color: Gray
With flange: No
Shielded: Yes
This RS Pro aluminum enclosure features shielding against electromagnetic interference and a baked enamel finish. It is designed for wall mounting or installation to hold electrical components. Made of ADC-12 aluminum alloy with an acrylic finish, it has tight-fitting lips secured with M3.5 countersunk stainless steel screws.
Features and benefits include:
- Die-cast aluminum alloy (LM2, BS1490)
- Baked enamel finish with a coarse, textured acrylic
- Tight-fitting lids with a sealing lip secured by M3.5 stainless steel countersunk screws
- Minimum wall thickness: 1.6 mm
Frequently asked questions:
Can the housing be used outdoors? No, this enclosure is not suitable for outdoor use.
3. RS PRO Black Aluminium Box 171.5x120.6x56mm
Enclosure Material: Aluminum Die-Cast
Seal Material: Neoprene
External Length: 171.9 mm
External Width: 120.9 mm
External Height: 55 mm
IP Protection Class: IP66
Color: Black
Cover Color: Black
With Flange: No
Shielded: Yes
This aluminum enclosure from RS Pro offers maximum protection for housing electrical components. It is made from an aluminum alloy with a smooth surface. The seal features a continuous neoprene gasket to prevent leaks into the enclosure. The gasket ensures an IP65 seal; this enclosure is dust-tight, splash-proof, and protects against water jets from all directions.
Features and Benefits:
- Aluminum die-cast alloy (LM2, BS1490)
- Supplied with a self-adhesive neoprene gasket that provides protection according to IP65 after installation
- Mounting screws M3.5, stainless steel
- Minimum wall thickness: 1.6 mm
Typical Applications:
- Instruments for testing and measurement systems
- Medical tools
- Transport equipment
- Industrial controls
- Lighting applications
The IP protection class classifies the degree of protection against the ingress of solid objects (including body parts such as hands and fingers), dust, accidental contact, and water in electrical enclosures.
Frequently Asked Questions:
Can the enclosure be used outdoors? This IP66-rated enclosure is completely waterproof and weatherproof.
What is included in the delivery? This enclosure comes complete with a neoprene gasket and stainless steel screws.
4. RS PRO 20μm filter regulator automatic, connection G1/4 to 12
The RS PRO 20μm filter regulator is a high-quality electronic accessory designed for precise pressure regulation and filtration in various applications. With a maximum operating pressure of 12 bar and a filter size of 20µm, this device effectively separates contaminants from air or liquid. The filter regulator features a G1/4 connection, allowing for easy integration into existing systems. Additionally, it offers both manual and semi-automatic drain options, simplifying handling and maintenance. Manufactured in Italy, this product meets high quality standards and is ideal for use in industrial environments where reliability and efficiency are of utmost importance.
- Maximum operating pressure of 12 bar
- Filter size of 20µm for effective filtration
- G1/4 connection for easy integration
- Manual and semi-automatic drain options.
5. RS PRO 3 way double screw earth terminal block
Double screw earth blocks. Earth connecting blocks manufactured from brass to BS2498 with electro tin plate matt finish to BS1872. Width 18.50 mm, height 12.20 mm.
6. RS PRO 304 Stainless Steel Enclosure, IP66, 200 mm
The RS PRO stainless steel enclosure is a robust and reliable solution for housing electronic accessories in harsh environments. With a height of 200 mm, a width of 100 mm, and a depth of 61 mm, it provides ample space for various applications. Made from high-quality stainless steel 304, this enclosure ensures high resistance to corrosion and mechanical influences. The IP66 protection rating guarantees that the enclosure is dust-tight and protected against powerful water jets, making it ideal for use in demanding environments. The enclosure features a door lock with a screw mechanism that offers additional security. It is an excellent choice for anyone seeking a durable and protective solution for their electronic components.
- Made from corrosion-resistant stainless steel 304
- IP66 protection rating for optimal dust and water protection
- Security mechanism through screw lock
- Suitable for use in harsh environments.
7. RS PRO Mild Steel IP66 Wall Box, 800x600x300mm
The Mild Steel IP66 Wall Box from RS Pro is a robust and versatile enclosure designed for wall mounting. With generous external dimensions of 800 mm in height, 600 mm in width, and 300 mm in depth, this box offers ample space for the safe storage and organization of electronic accessories and other components. The housing is made of high-quality steel and is finished in a neutral gray color, making it ideal for use in various industrial environments. The IP66 rating ensures that the contents of the cabinet are protected from dust and heavy water exposure, making it particularly suitable for use in harsh conditions. Compliance with RoHS standards highlights the environmentally friendly manufacturing of the product. This enclosure is a reliable solution for the storage and protection of electrical components and accessories.
- Sturdy steel housing for increased durability
- IP66 rating for optimal protection against dust and water
- Suitable for various industrial applications
- Compliance with RoHS standards for environmentally friendly use.
8. RS PRO Heatsink, Universal Rectangular Alu, 0.59°C/W, 200
The RS Pro heatsink for universal rectangular aluminum enclosures is an efficient solution for heat dissipation in electronic applications. With a compact design and a robust aluminum construction, this heatsink provides an effective way to regulate the operating temperature of components. The thermal resistance of 0.59 °C/W ensures that heat is dissipated quickly, enhancing the lifespan and performance of electronic components. This heatsink is ideal for use in various electronic devices and applications where reliable heat dissipation is required. Its universal shape allows for easy integration into existing systems, while the high-quality workmanship ensures durability and reliability.
- Thermal resistance of 0.59 °C/W for efficient heat dissipation
- Made from high-quality aluminum for durability
- Universal design for versatile applications in electronics.

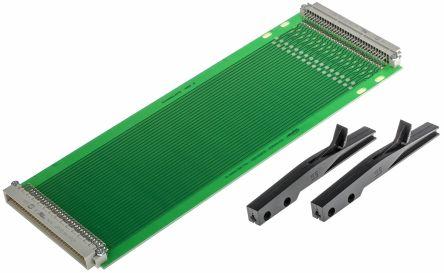

9. RS PRO DIN 64-96 way 3U extender card assembly
Type: PCB Extension
Connection: DIN 41612
Number of Contacts: 64, 96
Board Material: Epoxy Glass Fiber Laminate
Single / Double Sided: 2
Dimensions: 281.6 x 100 x 1.6 mm
Copper Thickness: 35 µm
FR Material Quality: FR4
Length: 281.6 mm
Material Thickness: 1.6 mm
Width: 100 mm
Extensions for Euro boards. Extension series for testing Euro boards with single or double height, a depth of 160 or 220 mm, with connectors of type B or C according to DIN 41612. The ejection mechanism at the front supports the board being tested. The circuits of the board are thus completely free from the chassis, making their examination and verification easier. To simplify the attachment of oscilloscope probes, the extension boards can be equipped with connection terminals (single boards come with 20 connection terminals, double boards with 40). This option is not available for extensions with 96/96 contacts.
10. RS PRO IP67 inspection window,234x47x93.5mm
Viewing window
Length: 234 mm
Width: 47 mm
Height: 94 mm
Dimensions: 234 x 47 x 93.5 mm
Material: Polycarbonate
For use with: 46277-3, DIN 43880
Color: Gray
This viewing window is designed for 2, 6, 8, and 12 modules and features break-out protection. It has an IP67 rating (window for 2 modules with IP44 protection). The polycarbonate inspection window is smoke gray and is compatible with DIN 43880 and 46277-3 enclosures. The windows are spring-loaded and can be secured with knurled screws. The temperature range is -25°C to +80°C.
