Best selling KVM switches from Dexlan
On this page you'll find a ranking of the best Dexlan products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Dexlan KVM Extender Over IP, up to 150 m, HDMI / USB, Set
Max. distance sender/receiver: 150 m with Cat. 5e cable. Fully automatic KVM switching. Gigabit support for IGMP multicast. Multi-source mode to switch between multiple views based on the matrix. Matrix organization can be configured with the Windows utility "Stream Control." Free app as RemoteControlCenter. Max. resolution: 1080 p HDMI. "Loop" port on the senders: allows for maintaining the local display. Infrared remote controls (DVD/BluRay players). Automatic IP addressing or via the network's DHCP server. Supports up to 16 senders and 254 receivers in the same IP network. Maximum distance between 2 active elements: 150 m on Cat5e cable. Operating modes: direct point-to-point connection, point-to-point via Gigabit switch, point-to-multi-point via Gigabit switch (broadcast mode), switch multiple sources to a single point via Gigabit (KVM switch mode), multi-point sources via Gigabit (matrix mode).

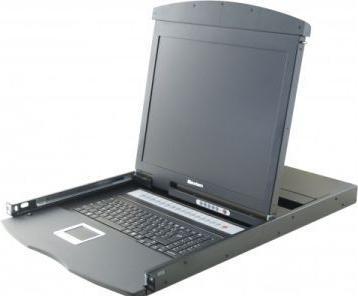

2. Dexlan 19-inch rackmount KVM console 19-inch LCD screen with KVM switch
The Dexlan 19-inch Rackmount KVM Console is a versatile solution for managing multiple computers through a single user interface. With an integrated 19-inch LCD screen and a KVM switch, this device allows for efficient control of up to eight systems. Operation is possible via buttons or an OSD menu, ensuring user-friendly handling. The console features a tool-less USB keyboard connection and a touchpad with two buttons, further simplifying interaction. The high resolution of 1920 x 1024 at 60Hz provides a clear and precise display, while the included VGA/USB combo cables allow for easy connection to the connected devices. The console is designed for rack mounting and comes with front and rear rails that ensure compatibility with 19-inch racks ranging from 800 to 1200 mm in depth. Additionally, the console is expandable with an IP management module, offering extra flexibility for network management.
- Operation via buttons or OSD menu for easy navigation
- Integrated touchpad with two buttons for comfortable control
- High resolution of 1920 x 1024 at 60Hz for clear image representation
- Includes 8 x VGA/USB combo cables for immediate connection options
- Expandable with IP management module for additional network functions.

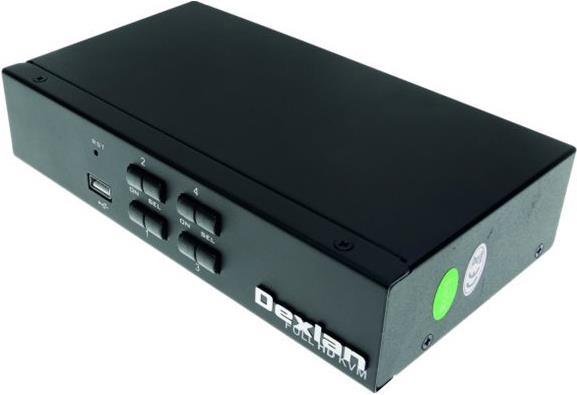

3. Dexlan HDMI 1.4 KVM Switch, 4k UHD, USB, 4-fold, Desktop
The Dexlan HDMI 1.4 KVM Switch allows you to control up to four HDMI sources with a maximum resolution of 4K UHD. This device is ideal for users who want to operate multiple computers or consoles on a single monitor or display. The KVM switch not only supports high-resolution video outputs but also offers comprehensive audio and USB functionalities. With a variety of connections, including USB Type-B for input and USB Type-A for keyboard and mouse, the switch is versatile. Switching between connected devices is easily done either via a physical button or keyboard shortcuts, ensuring user-friendly operation. Additionally, the device is equipped with surge protection to safeguard connected devices. The plug-and-play functionality allows for straightforward installation without the need for additional drivers.
- Supports resolutions up to 4K2K @30Hz and 1080p @60Hz
- Input with 4 USB Type-B ports for easy connection
- Audio outputs for microphone and speakers via 3.5mm jacks
- Switching via button or keyboard shortcut for easy operation
- Integrated USB 2.0 hub for sharing USB devices.
4. Dexlan 19" Work Console Console Dual Rail KVM CAT5 VGA / USB + 8 VGA/USB Server Modules
The Dual Rail KVM console features 2 independent drawers. The first contains a keyboard and a touchpad-type pointing device. The second integrates a high-resolution TFT-LCD screen with a 19-inch diagonal. The built-in CAT5 KVM switch allows you to control 8 connected computers with 8 VGA/USB server modules, which are connected via optional patch cables, over a distance of up to 60 meters. In addition to the DEXLAN LCD console, you can connect another USB keyboard/mouse to the 2 rear ports of the KVM. Furthermore, it enables you to use an IP Ethernet module, allowing remote control through the console and the servers with the 8 ports of the KVM switch over the local network or the Internet.
Specifications:
- Switching: Buttons/OSD Menu
- 2-button touchpad
- Resolution:
- 1920 x 1024, 60Hz
- External power supply: 12 Volt 4A
- Dimensions: 450 x 675 mm x 42 mm
- Weight: 17 kg
- Delivered with brackets for 19 inches front and rear
- Includes 8 VGA/USB server modules
- Maximum distance between server and KVM modules: 60 m in Cat 6a, 40 m in Cat 6, 30 m in Cat 5E
- Optional IP module
- Multi-platform: Windows 2000/XP/Vista/7/8/8.1/10, MacOS 10.6 and higher, Linux, UNIX ...
KVM switches
EUR1239,–
Dexlan 19" Work Console Console Dual Rail KVM CAT5 VGA / USB + 8 VGA/USB Server Modules

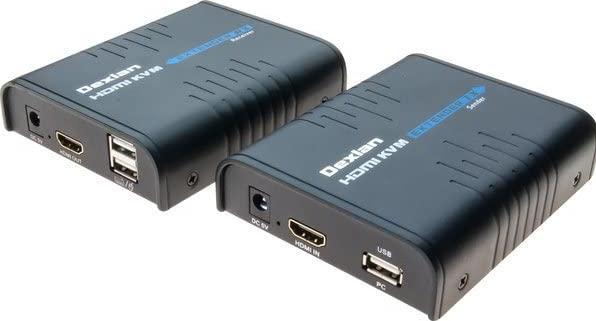

5. Dexlan HDMI / USB KVM Extender over IP Gigabit
The Dexlan HDMI / USB KVM Extender over IP Gigabit enables an efficient and flexible connection between various devices over a network. This product is ideal for applications where remote control of computers or other devices is required. The extender supports both HDMI and USB connections, allowing for versatile use in different environments. By utilizing IP technology, users can achieve high transmission quality and range without relying on the limitations of traditional KVM solutions. The extender is easy to install and configure, making it a practical solution for offices, training rooms, or other professional environments where multiple devices need to be controlled.
- Supports HDMI and USB connections for versatile applications
- Easy installation and configuration for user-friendliness
- High transmission quality and range through IP technology
- Ideal for professional environments such as offices and training rooms.

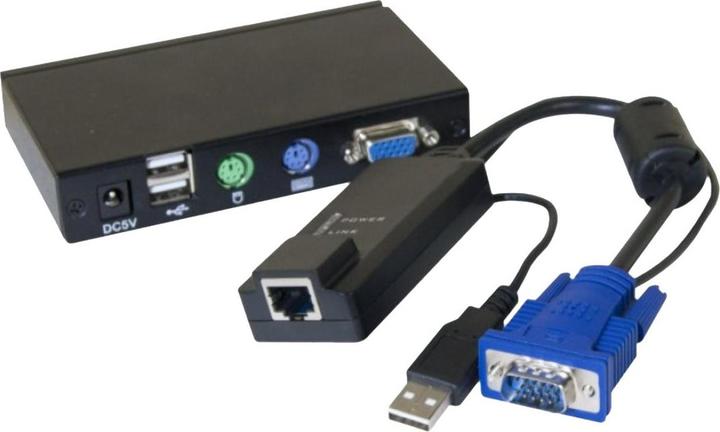

6. Dexlan KVM extension VGA and USB up to 100 meters
The Dexlan KVM extender enables reliable transmission of VGA and USB signals over distances of up to 100 meters. This product is ideal for applications that require a connection between a computer and a monitor or peripherals at greater distances. The maximum resolution is 1920 x 1200 pixels at 30 meters and 1280 x 1024 pixels at 100 meters, ensuring clear and sharp image representation. The KVM extender supports both CRT and LCD screens in various VGA modes, making it versatile. The compact design and metal casing of the receiver box provide durability and stability. Additionally, the device is compatible with all operating systems that support USB and requires no additional software installation, making setup easy.
- Supports a maximum resolution of 1920 x 1200 pixels at 30 meters and 1280 x 1024 pixels at 100 meters
- Compatible with CRT and LCD screens in various VGA modes
- Integrated mini dongle transmitter with its own power supply and 20 cm cable
- Metal casing of the receiver box for increased stability
- No software installation required, plug-and-play capable.
7. Dexlan 19" rackmount dual rail KVM console 19 LCD screen with KVM switch
The Dexlan 19" Rackmount Dual Rail KVM Console is a versatile solution for managing multiple computers through a single user interface. Featuring a 19-inch LCD screen, this console provides a clear and precise display that supports a resolution of up to 1280 x 1024 pixels. The dual rail function allows for installation in a 19-inch rack, saving space and promoting efficient use of the workspace. Operation is facilitated either through buttons or an OSD menu, ensuring user-friendly handling. The console comes with 16 VGA/USB combo cables, enabling easy connection to target devices. Additionally, the console is IP-expandable, offering extra flexibility in managing servers and other devices.
- Dual rail design for efficient rack mounting
- Supports a maximum resolution of 1280 x 1024 pixels
- Easy operation via buttons or OSD menu
- Includes 16 x VGA/USB combo cables (1.80 m)
- IP-expandable with the IP management module.
8. Dexlan 4 Port Dual View KVM Switch HDMI 4K with USB
The DEXLAN KVM switch with dual 4K HDMI display allows you to control 4 computers with dual video output using a single keyboard, mouse, and 2-screen user console. 4-port KVM switch for high resolutions up to 4K.
Specifications:
- Max. resolution: 3840 x 2160 pixels
- Audio: Microphone jack
- Supplied with 4 connection cables of 1.8 m
- Switching via hotkey, button, or remote control
- Power supply via USB.
9. Dexlan 2-Port Dual Monitor KVM Switch, HDMI 4K/ USB 2.0
The Dexlan 2-Port Dual-Monitor KVM Switch allows for efficient control of two computers using a single set of keyboard, mouse, and monitors. With support for high-resolution video outputs up to 4K at 30 Hz, this device delivers clear and sharp image quality suitable for various applications, whether for office work, multimedia, or gaming. The KVM switch is compatible with a wide range of operating systems, including Linux, macOS, and various versions of Windows, making it a flexible solution for different user needs. Switching between connected devices is easy, either via a button on the device or through a keyboard shortcut, ensuring user-friendly operation. Additionally, the switch provides analog audio connections for a microphone and speakers, allowing for seamless audio transmission. Power is supplied via USB, further simplifying installation and use.
- Supports 4K resolution at 30 Hz and 1080p at 60 Hz
- Compatible with HDMI and HDCP devices
- USB ports for keyboard, mouse, and peripherals
- Analog audio connections for microphone and speakers
- Easy switching via button or keyboard shortcut.
