Best selling Motherboards from Supermicro
This page always stays fresh and updates automatically.

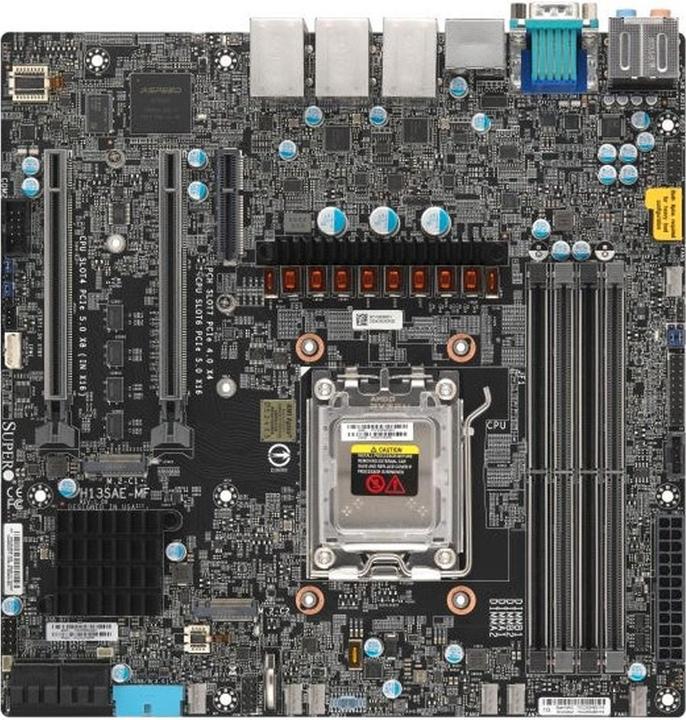

1. Supermicro H13SAE-MF
The Super Micro Computer H13SAE-MF motherboard is a powerful and versatile solution for modern computer applications. It supports AMD 7000 Series processors and offers a variety of connectivity options that ensure high flexibility and expandability. With a Micro ATX form factor, this motherboard is suitable for both compact and high-performance systems. Support for up to 192 GB of DDR5 RAM allows for excellent performance in memory-intensive applications. Additionally, the H13SAE-MF provides a range of internal and external connectivity options, including M.2 PCIe and SATA III, to meet the needs of diverse users. The integrated error correction technology ensures additional stability and reliability, while the Intel network ports provide a fast and reliable connection.
- Supports up to 192 GB of DDR5 RAM for high performance
- Two M.2 PCIe and four SATA III ports for flexible storage options
- Integrated error correction technology for improved stability
- Two RJ45 network ports with 1 Gbit/s speed
- Compatible with AMD 7000 Series processors via AM5 socket.
2. Supermicro H12SSL-NT
Short info: SUPERMICRO H12SSL-NT - Motherboard - ATX - Socket SP3 - USB 3.0 - 2 x 10 Gigabit LAN - Onboard graphics - for SC213, SC216, SC826, SC836, SC846 Group Motherboards Manufacturer Super Micro Computer Product Type. No. MBD-H12SSL-NT-B Model H12SSL-NT EAN/UPC Product Description: SUPERMICRO H12SSL-NT - Motherboard - ATX - Socket SP3 Product Type Motherboard - ATX Processor Socket 1 x Socket SP3 Compatible Processors EPYC 7002 series Max. RAM size 2 TB Supported RAM 8 DIMM slots - DDR4, ECC, registered Mass storage interfaces 8 x SATA-600 or 2 x NVMe port, 2 x M.2 USB/FireWire ports USB 3.0 4 x USB 3.0 + (2 x USB 3.0 via internal header) Graphics ASPEED AST2500 LAN 2 x 10 Gigabit Ethernet Designed for SC213 AC-R1K23LPB, SC216 BE1C4-R1K23LPB, SC826 BE1C4-R1K23LPB, SC836 BE1C-R1K23B, SC846 BE1C-R1K23B Specification Details General Product Type Motherboard - ATX Processor Socket SP3 Max. No. Processors 1 Compatible processors EPYC 7002 series Supported.
3. Supermicro X13SAE-F
The Supermicro X13SAE-F is a powerful ATX motherboard designed for the latest Intel Core series processors. It supports the LGA 1700 socket and is equipped with the Intel W680 chipset, ensuring high compatibility and performance. The motherboard accommodates up to 128 GB of DDR5 RAM and features four DIMM slots that support both ECC and non-ECC memory. A variety of interfaces, including multiple USB ports, HDMI, and DisplayPort, allow for flexible connectivity. Additionally, the X13SAE-F offers advanced networking options with 2.5 Gigabit Ethernet, ensuring fast data transfers. This motherboard is ideal for applications that require high computing power and reliability, making it suitable for both server and desktop applications.
- Supports Intel Core i3, i5, i7, and i9 processors with a maximum TDP of 125 watts
- Offers up to 128 GB of DDR5 RAM with four DIMM slots, compatible with ECC and non-ECC
- Features eight SATA-600 ports and three M.2 interfaces for flexible storage options
- Integrated graphics solution with ASPEED AST2600 for basic graphical requirements
- Enables fast network connectivity with 2.5 Gigabit Ethernet and multiple RJ45 ports.
4. Supermicro Mainboard X14SAE ATX Sockel 1851 Single - Mainboard - ATX
The Supermicro X14SAE ATX motherboard is a powerful and versatile product designed for demanding applications. With an LGA 1851 processor socket, it offers the capability to integrate high-performance Intel processors that ensure significant computing power. The motherboard supports DDR5 RAM, which allows for improved data transfer rates and energy efficiency. With a maximum memory capacity of up to 192 gigabytes, it is ideal for applications that need to process large amounts of data. The ATX form factor facilitates easy integration into standard cases and allows for flexible expansion with additional components. Additionally, the motherboard supports RAID configurations, enhancing data security and availability. This motherboard is therefore an excellent choice for professional applications and high-performance workstations.
- Supports up to 192 GB of DDR5 RAM for high performance and efficiency
- Compatible with RAID 0, 1, 5, and 10 for enhanced data security
- ATX form factor for easy integration into standard cases
- Optimized for Intel processors with LGA 1851 socket.
Motherboards
EUR705,83
Supermicro Mainboard X14SAE ATX Sockel 1851 Single - Mainboard - ATX
LGA 1851, ATX

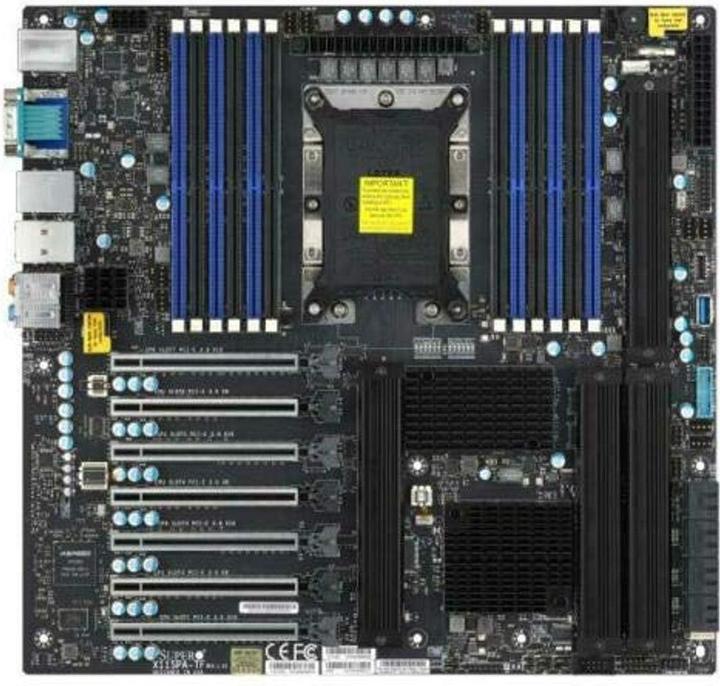

5. Supermicro X11SPA-T
Supermicro motherboards support Intel and AMD processors as well as memory, offering the most advanced technologies in the IT sector, including NVMe, M.2, and 10GbE network connections. Thanks to their high scalability and a wide range of form factors, the boards can meet the needs of even the most demanding customers. Supermicro provides the broadest selection of servers for industrial use, which is reflected in the overall quality of the boards. The materials used in the manufacturing of Supermicro motherboards ensure a long lifespan, resulting in a minimal failure rate. Supermicro motherboards undergo a generational change approximately every seven years, ensuring long-term support from the manufacturer. Additionally, each Supermicro motherboard allows for the free installation of specialized software for basic system monitoring.
6. Supermicro MBD-X12SPI-TF Motherboard Intel® C621
The Supermicro MBD-X12SPI-TF is a powerful ATX motherboard designed for use with the latest generation of Intel® Xeon processors. It supports the LGA4189 socket and is equipped with the Intel C621A chipset, providing high processing power and efficiency. With up to 2 TB of DDR4 RAM and 8 DIMM slots, this motherboard offers impressive storage capacity suitable for demanding applications and server environments. Support for various mass storage interfaces, including 10 SATA-600 connections and one NVMe port, ensures flexible storage options and high data transfer rates. Additionally, the MBD-X12SPI-TF features an integrated graphics solution and two 10-Gigabit Ethernet ports for fast network connectivity. This motherboard is ideal for professional applications that require high performance and reliability.
- Supports Intel® Xeon processors with up to 40 cores and 270 watts TDP
- Maximum RAM capacity of 2 TB with ECC support
- 10 SATA-600 connections and 1 NVMe port for flexible storage options
- Integrated ASPEED AST2600 graphics solution
- Two 10-Gigabit Ethernet ports for high network speed.
7. Supermicro X11SSZ-QF
Supermicro's single-processor designs with socket H4 feature the Intel Q170 embedded chipset, which supports the Intel 6th generation Core i3/i5/i7 processor family. Outstanding features include up to 64 GB of fast DDR4 DRAM in 4 DIMMs, integrated IPMI or vPro, USB 3.0, PCI-E 3.0, and SATA 3.0 (6 Gbit/s) HDD. It also supports next-generation graphics controllers, 4K HD graphics resolution, and 3 displays with HDMI, DP, VGA, and DVI ports. Focusing on performance, reliability, manageability, and longevity, Supermicro's single-processor motherboards are the perfect solution for ATMs, kiosks, NVR/DVR surveillance, medical applications, storage or server devices, and many other embedded applications.

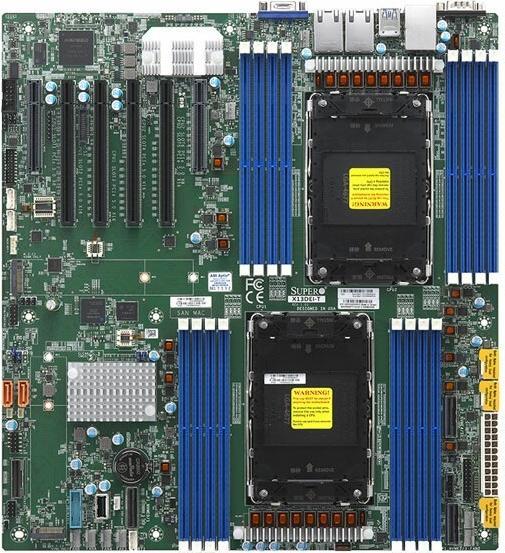

8. Supermicro Motherboard X13DEI-T (bulk pack)
The Supermicro Motherboard X13DEI-T is a powerful and versatile solution for server applications. It supports the latest Intel Xeon processors via the LGA 4677 socket and offers an impressive maximum RAM capacity of up to 4 TB with DDR5 SDRAM. This motherboard is designed for use in demanding environments and is ideal for companies that require high processing power and reliability. With a variety of connectivity options, including M.2, PCI Express 5.0, and SATA III, it allows for flexible configuration and expansion. The integrated 10Gbe LAN controllers ensure fast network connections, while the extended ATX form factor facilitates easy integration into various cases. The X13DEI-T is thus an excellent choice for modern server solutions.
- Supports up to 4 TB of DDR5 RAM with ECC Registered buffering
- Two integrated 10Gbe LAN controllers for high network speeds
- Extended ATX form factor for flexible case integration
- Variety of storage drive interfaces, including M.2 and PCI Express 5.0
- Compatible with Intel Xeon processors for high performance.
9. Supermicro MB Intel 1200 X12SCA-F-B Bulk W480
The Super Micro X12SCA-F-B is a powerful motherboard designed for use with Intel processors in the LGA 1200 socket. Featuring the W480 chipset, it provides a robust platform for various applications, from office computers to high-performance workstations. The ATX format allows for easy integration into standard cases and offers ample space for expansion cards and memory. Support for USB-C Gen2 and USB 3.2 Gen 1 as well as Gen 2 ensures fast data transfers and versatile connectivity options. Additionally, the motherboard is equipped with Gigabit and 2.5 Gigabit LAN, ensuring high network speed and stability. The integrated graphics and HD audio features complete the package, making it an ideal choice for users seeking a reliable and powerful solution.
- Support for Intel LGA 1200 processors
- W480 chipset for enhanced performance
- Various USB ports, including USB-C Gen2
- Integrated Gigabit and 2.5 Gigabit LAN for high network speeds.
10. Supermicro H13SSL-NT
The Supermicro H13SSL-NT is a powerful ATX motherboard specifically designed for AMD EPYC 9004/9005 processors. It offers a variety of features and expansion options, making it an ideal choice for demanding server and workstation applications. With support for up to 3 TB of DDR5 RAM in 12 DIMM slots and a range of PCIe 5.0 interfaces, this motherboard provides high flexibility and performance. The integrated Aspeed AST2600 BMC graphics ensure reliable system management and monitoring. Additionally, the H13SSL-NT offers comprehensive networking options with two 10GBase-T LAN ports that guarantee fast data transfer. The combination of cutting-edge technology and thoughtful design makes this motherboard an excellent choice for professional applications.
- Supports AMD EPYC 9004/9005 processors with SP5 socket
- Maximum RAM capacity of 3 TB with DDR5 SDRAM
- Provides 8 SATA-III ports for flexible storage options
- Integrated 10GBase-T LAN ports for high network speed
- Allows installation of up to 6 PWM fans for optimal cooling.
