1. Moxa ANT-WDB-ARM-02 - Antenna - 2 dBi (for 2.4 GHz), 2 dBi (for 5 GHz)

The Moxa ANT-WDB-ARM-02 is a powerful, omnidirectional mobile antenna designed for outdoor use. With an antenna gain of 2 dBi for both 2.4 GHz and 5 GHz frequencies, it provides reliable signal transmission and reception. This antenna is ideal for applications that require a stable connection in mobile networks. It features an RP-SMA connector, allowing for easy integration into various systems. With a compact design and a weight of only 10 grams, the ANT-WDB-ARM-02 is both lightweight and easy to install, making it a practical choice for various outdoor applications.

- Omnidirectional reception performance for improved signal stability
- Suitable for use in mobile networks and Wi-Fi applications
- Robust construction for outdoor use. more

Network antenna

EUR15,89

Moxa ANT-WDB-ARM-02 - Antenna - 2 dBi (for 2.4 GHz), 2 dBi (for 5 GHz)

Wi-Fi

2. Moxa ANT-5G-ASM-07 - 7 dBi, omnidirectional rubber-duck antenna for GSM, UMTS, LTE, and 5G NR applica

Introduction
The ANT-5G-ASM-07 series is an omnidirectional lightweight compact antenna suitable for GSM, UMTS, LTE, and 5G NR bands. The antenna provides a gain of 7 dBi and is designed to operate in temperatures ranging from -40 to 85°C.

Antenna Characteristics
- Frequency: 617 to 960, 1710 to 2170, 2300 to 2690, 3300 to 3800, 4200 to 4700, 5000 to 5925 MHz
- Antenna Type: Omni-directional

Typical Antenna Gain:
- 1.29 dBi @ 617 to 698 MHz
- 2.00 dBi @ 698 to 824 MHz
- 1.29 dBi @ 824 to 960 MHz
- 3.77 dBi @ 1710 to 1880 MHz
- 4.55 dBi @ 1850 to 1990 MHz
- 5.49 dBi @ 1920 to 2170 MHz
- 5.21 dBi @ 2300 to 2690 MHz
- 5.14 dBi @ 3300 to 3800 MHz
- 6.57 dBi @ 4200 to 4700 MHz
- 7.72 dBi @ 5000 to 5925 MHz

- Connector: SMA (male)
- Impedance: 50 ohms
- Polarization: Linear, Vertical
- HPBW/Horizontal: 360°

V.S.W.R.:
- < 7.5 @ 617 to 698 MHz
- < 4.5 @ 698 to 824 MHz
- < 4.4 @ 824 to 960 MHz
- < 1.9 @ 1710 to 1880 MHz
- < 2.7 @ 1850 to 1990 MHz
- < 4.1 @ 1920 to 2170 MHz
- < 2.1 @ 2300 to 2690 MHz
- < 2.5 @ 3300 to 3800 MHz
- < 1.9 @ 4200 to 4700 MHz
- < 2.0 @ 5000 to 5925 MHz

Physical Characteristics
- Weight: 35.8 g (0.08 lb)
- Length: 220 mm (8.66 in)
- Radome Color: Black
- Radome Material: Plastic
- Installation: Straight mount

Environmental Limits
- Operating Temperature: -40 to 85°C (-40 to 185°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (30°C, non-condensing). more

Network antenna

EUR76,90

Moxa ANT-5G-ASM-07 - 7 dBi, omnidirectional rubber-duck antenna for GSM, UMTS, LTE, and 5G NR applica

5G, GSM

3. Moxa 2.45 GHz omni-directional antenna, 22 dBi, RP-SMA-type (male) connector

The 2.45 GHz omnidirectional antenna with a gain of 22 dBi is a powerful solution for WLAN applications. It is equipped with an RP-SMA connector (male) and offers excellent reception performance in the 2.4 GHz range. This antenna is ideal for use in environments where a stable and extensive WLAN connection is required. Thanks to its omnidirectional design, it can receive signals from all directions, increasing installation flexibility. The dual-band functionality allows for seamless integration into existing networks, making it suitable for both private and business applications. With this antenna, users can significantly enhance the range and stability of their WLAN connection.

- 22 dBi antenna gain for improved range
- Omnidirectional design for flexible reception
- RP-SMA connector for easy installation
- Dual-band support for versatile use. more

Network antenna

EUR28,90

Moxa 2.45 GHz omni-directional antenna, 22 dBi, RP-SMA-type (male) connector

Wi-Fi

4. Moxa MAT-WDB-PA-NF-2-0708 - 7 dBi 2.4 GHz, 8 dBi 5 GHz, N-type (female), 2x2 MIMO, dual-band panel antenn

The MAT-WDB-PA-NF-2-0708 is a high-performance dual-band panel antenna designed for use in demanding network environments. With its MIMO 2x2 technology, it enables improved signal transmission and reception in both the 2.4 GHz and 5 GHz frequency ranges. This antenna offers a typical gain of 7 dBi in the 2.4 GHz range and 8 dBi in the 5 GHz range, making it ideal for applications that require high data rates and reliability. Its robust construction and the option for mast mounting ensure easy installation and a long lifespan, even under extreme environmental conditions. Therefore, the MAT-WDB-PA-NF-2-0708 is an excellent choice for professional network applications that need a reliable and powerful antenna.

- MIMO 2x2 technology for improved signal transmission
- Dual-band operation for flexible frequency use
- Robust construction for use in extreme environments
- Easy mast mounting for versatile installation options
- High operating temperature range from -40 to 75 °C. more

Network antenna

EUR299,–

Moxa MAT-WDB-PA-NF-2-0708 - 7 dBi 2.4 GHz, 8 dBi 5 GHz, N-type (female), 2x2 MIMO, dual-band panel antenn

Wi-Fi

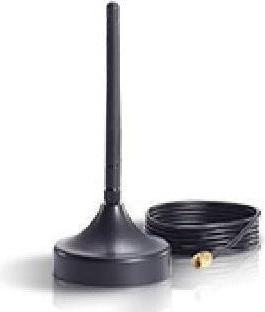

5. Moxa ANT-LTE-ASM-02 - GPRSEDGEUMTSHSPALTE, 2 dBi, omnidirectional rubber tuck antenna

The ANT-LTE-ASM-02 is an omnidirectional mobile antenna from Moxa, designed for use in wireless networks. With a typical antenna gain of 2 dBi, it provides reliable signal transmission across a wide frequency range of 800 to 2600 MHz. This antenna is particularly user-friendly and easy to install, making it an ideal choice for various applications in the mobile communications sector. Its robust construction and lightweight design, weighing only 26 g, allow for flexible mounting, while its high resistance to different environmental conditions ensures reliable performance. The ANT-LTE-ASM-02 is suitable for operating temperatures ranging from -20 to 65 °C and can be used in humid environments with a relative humidity of up to 95%.

- Omnidirectional antenna for comprehensive signal coverage
- Frequency range: 800/900/1800/2100/2600 MHz
- Easy installation and mounting
- Durable plastic material for longevity
- Suitable for operating temperatures from -20 to 65 °C. more

Network antenna

−6%

EUR46,90 was EUR49,90

Moxa ANT-LTE-ASM-02 - GPRSEDGEUMTSHSPALTE, 2 dBi, omnidirectional rubber tuck antenna

6. Moxa ANT-WDB-ONF-0709 - 7 dBi at 2.4 GHz or 9 dBi at 5 GHz, N-type (socket), dual-band

The ANT-WDB-ONF-0709 is a powerful dual-band WLAN antenna that can be used at both 2.4 GHz and 5 GHz frequencies. With a typical antenna gain of 7 dBi at 2.4 GHz and 9 dBi at 5 GHz, it offers excellent signal strength and range. This omnidirectional antenna is ideal for applications that require a reliable wireless connection. It features an N-type connector (socket) and is designed for use in demanding environments, as it has an IP65 protection rating. The antenna is made of robust fiberglass and can withstand temperatures ranging from -40 to 85 °C, making it a versatile solution for various deployment scenarios.

- Omnidirectional antenna with 7 dBi (2.4 GHz) and 9 dBi (5 GHz) gain
- IP65 protection rating for use in harsh environments
- Operating temperature range of -40 to 85 °C
- N-type connector (socket) for easy integration
- High-quality fiberglass radome for durability. more

Network antenna

EUR179,–

Moxa ANT-WDB-ONF-0709 - 7 dBi at 2.4 GHz or 9 dBi at 5 GHz, N-type (socket), dual-band

Wi-Fi

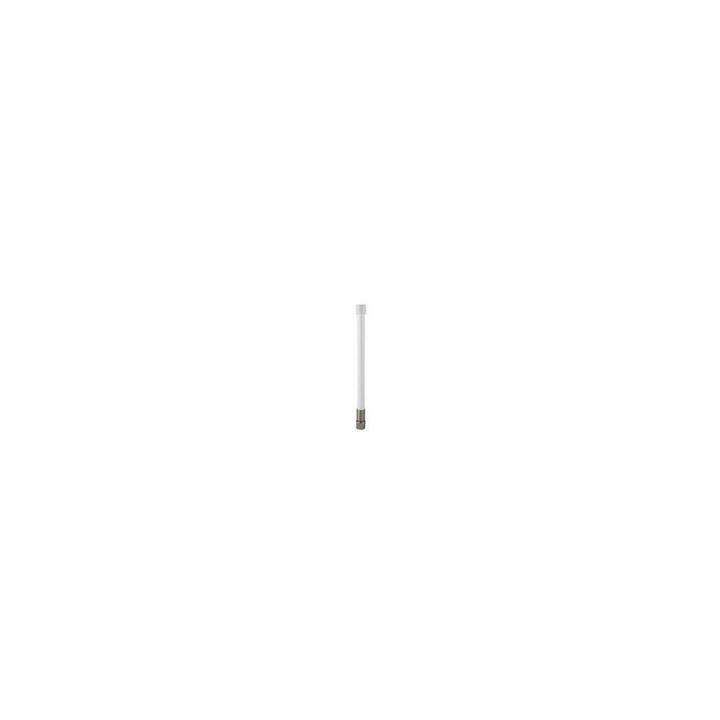

7. Moxa ANT-WDB-ONM-0707 - 07 dBi at 2.4 GHz and 07 dBi at 5 GHz, N-type (connector)

07 dBi at 2.4 GHz and 07 dBi at 5 GHz, N-type (connector), dual-band omnidirectional antenna

Antenna features
- Frequency: 2.4 to 2.4835 GHz or 5.15 to 5.85 GHz
- Antenna type: Omnidirectional
- Typical antenna gain: 7/7 dBi
- Impedance: 50 Ohm
- HPBW/Horizontal: 360°
- V.S.W.R.: 1:2.5 max.
- Power consumption Power consumption: 10 W (max.)
- Polarisation: Vertical
- Connection: N-type (plug)

Physical properties
- IP protection class: IP65
- Dimensions: Diameter: 20 mm (0.79 in); Length: 528 mm (20.79 in)
- Weight: 152 g (0.34 lb)
- Radome Colour: White
- Radome Material: Glass fibre
- Mounting: Straight mounting

Environmental Limits
- Operating Temperature: -40 to 85°C (-40 to 185°F)
- Storage Temperature (including packaging): -40 to 85°C (-40 to 185°F). more

Network antenna

−6%

EUR149,– was EUR159,01

Moxa ANT-WDB-ONM-0707 - 07 dBi at 2.4 GHz and 07 dBi at 5 GHz, N-type (connector)

Wi-Fi

8. Moxa ANT-WDB-PNF-1011 - 10 dBi at 2.4 GHz and 11 dBi at 5 GHz, N-type (socket), dual-band directional rad

The ANT-WDB-PNF-1011 is a directional dual-band panel antenna with high gain and a waterproof N connector. The antenna provides a gain of 10 dBi at 2.4 GHz and 11 dBi at 5 GHz. Its IP65-rated housing, support for pole mounting, and wide operating temperature range of -40 to 85 °C make it suitable for outdoor use.

Field Patterns:
- X-Y Plane
- X-Z Plane
- Y-Z Plane

Antenna Characteristics:
- Frequency: 2.4 to 2.4835, 5.15 to 5.85 GHz
- Antenna Type: Directional, Panel
- Typical Antenna Gain: 10/11 dBi
- Connector: N-Type (Socket)
- Impedance: 50 Ohms
- HPBW/Horizontal: 40°
- HPBW/Vertical: 30°
- V.S.W.R.: 1:3.0 max.
- Power Handling: 10 W (max.)
- Polarization: Vertical

Physical Properties:
- Protection Class: IP65
- Dimensions: 260 x 260 x 44 mm
- Weight: 767 g
- Radome Color: White
- Radome Material: PC and ABS
- Mounting: Pole Mounting

Environmental Conditions:
- Operating Temperature: -40 to 85 °C
- Storage Temperature (including packaging): -40 to 85 °C. more

Network antenna

EUR359,–

Moxa ANT-WDB-PNF-1011 - 10 dBi at 2.4 GHz and 11 dBi at 5 GHz, N-type (socket), dual-band directional rad

Wi-Fi

9. Moxa ANT-GNSS-CSM-02-3M - 2 dBic GNSS antenna with SMA (male) connector, 3 m cable

The ANT-GNSS-CSM-02-3M is a high-performance omnidirectional GNSS antenna specifically designed for use in demanding environments. With a gain of 2 dBic, it provides reliable signal reception for various GNSS applications, including GPS, GLONASS, and BDS. The antenna is suitable for a wide temperature range of -40 to 85 °C, making it ideal for outdoor use. Its robust construction with an IP67 protection rating ensures that it is protected against dust and water. The antenna features an SMA connector and comes with a 3-meter long RG-174 cable, allowing for flexible installation. With its vertical, linear polarization and a V.S.W.R. of under 2.0, it offers excellent performance in various applications.

- Omnidirectional antenna for versatile GNSS applications
- Operating temperature of -40 to 85 °C for extreme environments
- IP67 protection rating for dust and water resistance
- 3 m cable for flexible installation options. more

Network antenna

EUR319,–

Moxa ANT-GNSS-CSM-02-3M - 2 dBic GNSS antenna with SMA (male) connector, 3 m cable

10. Moxa MAT-WDB-DA-RM-2-0203-1M - 2.45 GHz, desktop antenna, 23 dBi, MIMO 2x2, RP-SMA-type (male), 1 m cable

The MAT-WDB-DA-RM-2-0203-1M is a powerful tabletop antenna from Moxa designed for use in wireless networks. With a frequency of 2.45 GHz and an antenna gain of 23 dBi, it offers excellent signal strength and range. This MIMO 2x2 antenna is omnidirectional, allowing for efficient data transmission in various environments. Installation is straightforward, and the antenna is suitable for indoor use. It comes equipped with an RP-SMA connector and includes a 1-meter cable, providing flexible mounting options. The robust construction and IP55 rating ensure reliable performance under various conditions, while the operating temperature range of -40 to 75 °C guarantees wide applicability.

- MIMO 2x2 technology for enhanced data transmission
- Omnidirectional radiation for comprehensive signal coverage
- IP55 rating for increased durability
- Operating temperature range of -40 to 75 °C for versatile applications
- Easy tabletop installation with RP-SMA connector and 1 m cable. more

Network antenna

EUR94,90

Moxa MAT-WDB-DA-RM-2-0203-1M - 2.45 GHz, desktop antenna, 23 dBi, MIMO 2x2, RP-SMA-type (male), 1 m cable

Wi-Fi
