Best Quwireless products in the Network antenna category
On this page you'll find a ranking of the best Quwireless products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

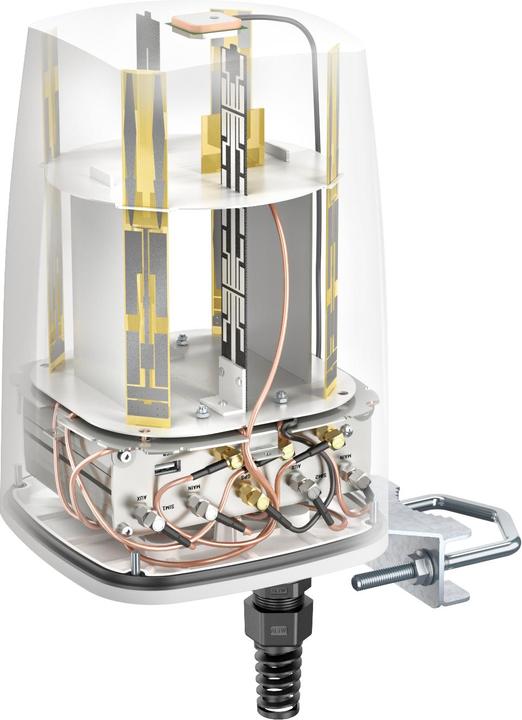

1. Quwireless QuSpot for RUTX50
Integrated outdoor multi-band high-performance LTE omni antenna GPS antenna for installation with Teltonika RUTX50 (all-in-one) up to 4 dBi LTE antenna gain IP67 passive PoE support. The integrated multi-band LTE and 5G omni antenna, Wi-Fi omni antenna, and GPS installation for Teltonika RUTX50 (all-in-one) QuSpot for RUTX50 is an outdoor antenna that provides a reliable wireless connection in a variety of environments. This product is an all-in-one solution that combines a high-gain omnidirectional 5G and Wi-Fi antenna with the RUTX50 in a single IP67 enclosure. This integration enables the implementation of new RUTX50 solutions for outdoor use. QuSpot for RUTX50 is an ideal solution for outdoor wireless connectivity in mobile applications such as transportation, yachting, boats, and camping, as well as in urban centers with high signal density.

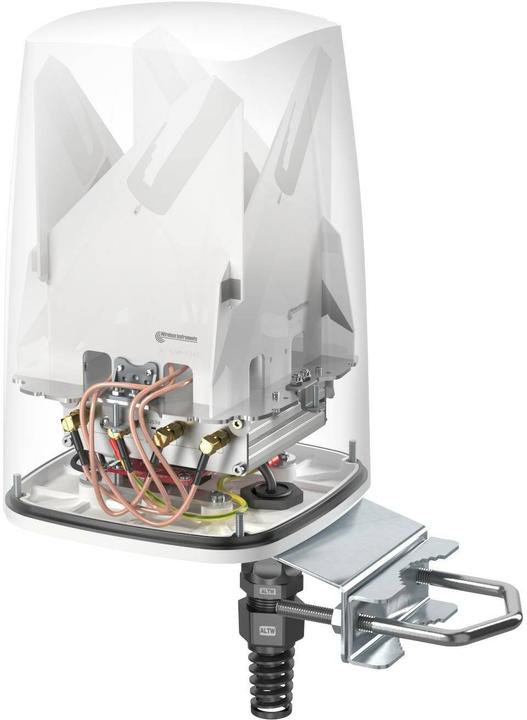

2. Quwireless AX50MO - QuMax Omni for RUTX50
QuMax Omni is a 5G omnidirectional MIMO 4x4 antenna designed for the Teltonika RUTX50 router. The antenna covers a wide frequency range from 617 MHz (Band 71) to 3.8 GHz. In addition to the 5G antenna, it also includes Wi-Fi and GPS antennas, providing an all-in-one solution for your RUTX50. An additional router compartment inside the housing allows for a variety of new outdoor scenarios (IP67). It is suitable for mobile applications such as trains, buses, yachts, or motorhomes, as well as for improving signal quality in rural areas. Note: The antenna does not support Band 32 and n77 above 3800 MHz. The mounting bracket is not included with this product.
3. Quwireless A500S - QuSpot for Teltonika TRB500
QuSpot for TRB500 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G antennas with RUTX50 into a single IP67 enclosure. Such integration allows implementation of new outdoor TRB500 solutions.
QuSpot for TRB500 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.
The set contains a PoE splitter, allowing to provide both data and power via one Ethernet cable and keep Gigabit transfer speeds.

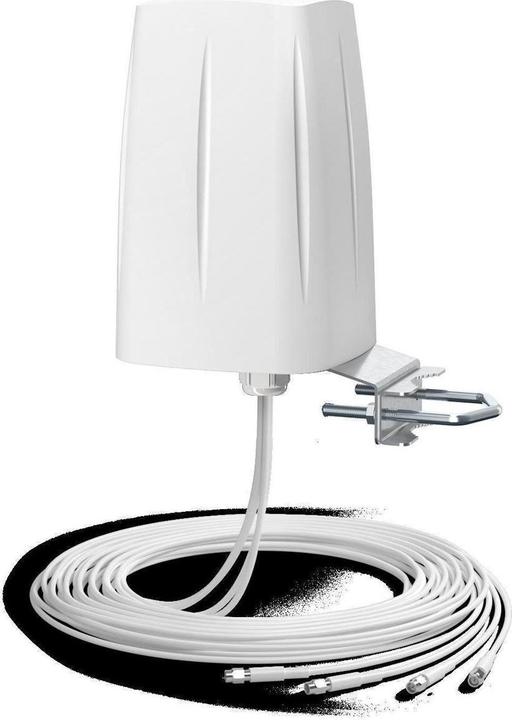

4. Quwireless Antenna QuOmni 5G/LTE Global
Omnidirectional ultra wideband 5G/LTE MIMO 4x4 antenna
The QuOmni 5G/LTE omnidirectional MIMO 4x4 is an ultra wideband LTE outdoor antenna. It is primarily designed for LTE, 5G, 3G, and 2G devices that require high-efficiency connections. The antenna covers many LTE bands, including the new extended LTE Band 71, with frequencies ranging from 617 to 6000 MHz. The mounting bracket allows the antenna to be installed on buildings (on a pole or wall) or on moving points like trains, buses, lorries, yachts, and boats to receive internet via LTE, 5G, 3G, or 2G. It is an ideal solution for use with all industrial and domestic 4x4 LTE modems and routers such as Teltonika, DIGI, Mikrotik, Robustel, and Cisco.
5G / LTE Antenna Specification
Frequency
- 617 - 960 MHz
- 1.7 - 2.7 GHz
- 3.3 - 4.7 GHz
- 5.2 - 6.0 GHz
Gain
- 617 - 960 MHz: 3 dBi
- 1.7 - 2.2 GHz: 4 dBi
- 3.3 - 4.7 GHz: 4.5 dBi
- 5.2 - 6.0 GHz: 2.5 dBi
Supported LTE Bands
- 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106
Supported 5G Bands
- n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
VSWR
- <1.80, max <2.00
Beamwidth
- 360°/35° ±5°
Polarization
- Vertical
Impedance
- 50 Ω
Mechanical Specification
Materials
- ABS, aluminum, PTFE
Connector Type
- SMA
Ingress Protection
- IP67
Dimensions
- 160 x 160 x 240 mm
- 6.3 x 6.3 x 9.45 inch
Weight
- 1.5 kg
- 3.31 lbs
Operating Temperature
- From -40°C to 80°C
- From -40°F to 176°F
Mast Diameter
- 40-60 mm
- 1.57-2.36 inch.

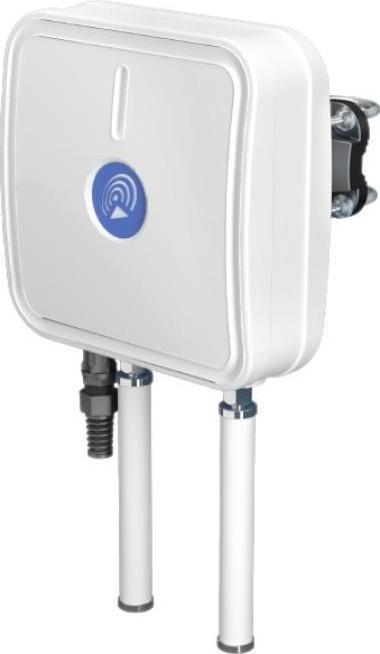

5. Quwireless QuMax for Teltonika RUTX12/14
AX12M - QuMax for Teltonika RUTX12/14
The QuMax MIMO 4x4 directional LTE antenna (4x SMA connector for 2x embedded LTE modems) for Teltonika RUTX12/14 routers is a perfect outdoor device for mobile and fixed installations such as industrial, CCTV, hotspots, etc. It also features embedded Wi-Fi dual band 2.4 & 5 GHz omni antennas, a GPS antenna, and a Bluetooth antenna. It is designed to have the Teltonika RUTX12/14 router installed inside an IP67 enclosure. Using the RUTX12/14 with a QuMax antenna provides an integrated complete solution with an embedded router and multi-band antennas in one enclosure.
LTE Antenna Specifications
- Frequency: 0.694 - 0.96 GHz; 1.7 - 2.2 GHz; 2.2 - 2.7 GHz
- Supported LTE/5G bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
- Gain: 0.694 - 0.96 GHz: 4 dBi; 1.7 - 2.2 GHz: 5 dBi; 2.2 - 2.7 GHz: 6 dBi
- Front-to-back: >8 dB
- VSWR:
- Beam width: 90°/90° +/-30°
- Polarization: Vertical
- Impedance: 50 ohms
Wi-Fi Antenna Specification
- Frequency: 2.40 - 2.50 GHz; 4.70 - 6.00 GHz
- Gain: 2.40 - 2.50 GHz: 6 dBi; 4.70 - 6.00 GHz: 7 dBi
- VSWR:
- Beam width: 360°/25° +/-5°
- Polarization: Vertical
- Impedance: 50 ohms
Bluetooth Antenna Specifications
- Frequency: 2.30 - 2.60 GHz
- Gain: 3 dBi
- VSWR:
- Beam width: 360°/25° +/-5°
- Polarization: Vertical
- Impedance: 50 ohms
Mechanical Specification
- Materials: ABS, aluminum, PTFE, fiberglass
- Connector type: RJ45
- Ingress protection: IP67
- Dimensions: 392 x 392 x 99 mm (15.43 x 15.43 x 3.90 inch)
- Weight: 3.7 kg (8.16 lbs.)
- Operating temperature: From -40°C to 75°C (from -40°F to 167°F).

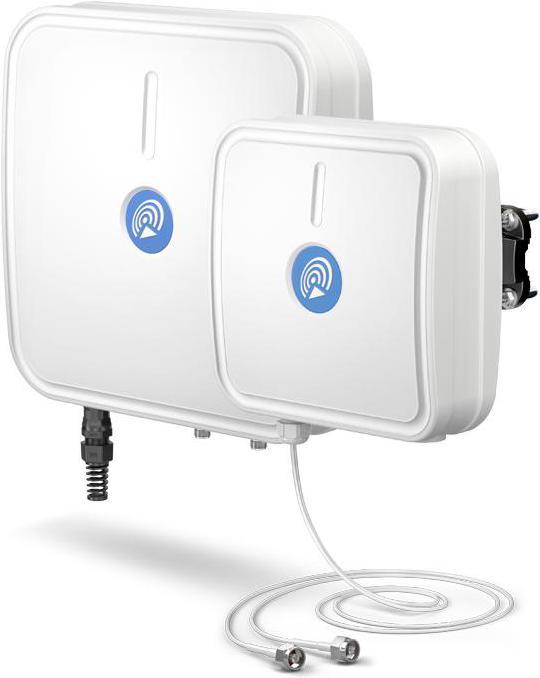

6. Quwireless AXR12 - QuMax XR2 Bi-Directional Kit for RUTX12
- Integrated outdoor WiFi dual-band 2.4 & 5 GHz vertical antenna
- Bluetooth vertical antenna
- For installation of Teltonika RUTX12 (all-in-one)
- Up to 7 dBi antenna gain
- IP67
- Passive PoE support
Set of two separate eXtra Range LTE directional antennas for bidirectional connection to two different LTE base stations. The main antenna also features dual-band Wi-Fi, GPS, Bluetooth antennas, and space for the installation of the Teltonika RUTX12 integrated. The second antenna is solely a directional LTE XR antenna.
The QuMax XR2 is a bidirectional LTE eXtra Range antenna set (two separate antennas), with both connected to two different LTE base stations (it can also be connected to a single base station to achieve a greater share of transmission from that base station). The main antenna additionally includes integrated Wi-Fi dual-band, GPS, and Bluetooth antennas, 2x RF connectors for the second LTE antenna, and a space for installing the RUTX12 router in the antenna housing. The second antenna is just an LTE extra-range directional antenna and is housed in a smaller casing. The QuMax XR2 set is designed for long-range connections from the LTE base station to two different base stations, allowing optimal use of features such as load balancing and carrier aggregation.

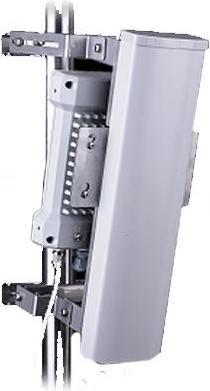

7. Quwireless WIBOX SA MDB255-90-14X - 2.5 & 5 GHz Dual Band Antenna
The WIBOX SA MDB255-90-14X is a powerful dual-band MIMO 2x2 sector antenna that operates in both the 2.5 GHz and 5 GHz ranges. It offers a high gain of 12 dBi in the frequency range of 2.35 to 2.65 GHz and 14 dBi in the range of 5.1 to 5.85 GHz. This antenna is ideal for point-to-multipoint topologies and is excellent for covering medium areas, such as hotspots in schools, halls, stadiums, or other public places. It can be installed both indoors and outdoors and is IP67 waterproof, making it particularly robust against various weather conditions. The WIBOX SA MDB255-90-14X is compatible with a wide range of systems, including Wi-Fi, WiMAX, LTE, Bluetooth, ISM, and RFiD, making it a versatile solution for network connections.
- Dual-band MIMO 2x2 sector antenna with 12 dBi and 14 dBi gain
- Suitable for point-to-multipoint connections in medium areas
- IP67 certified for indoor and outdoor use
- Compatible with Wi-Fi, WiMAX, LTE, Bluetooth, ISM, and RFiD
- Integrated, weatherproof WiBOX Medium housing for the installation of radio devices.

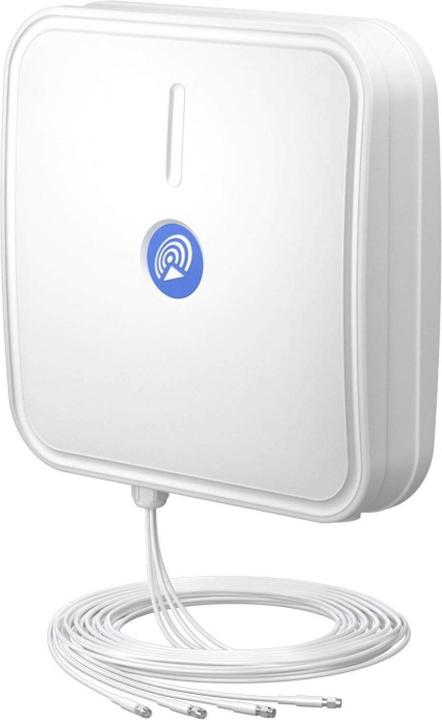

8. Quwireless AP5G4 - QuPanel 5G/LTE MIMO 4x4, 5 m Cable
AP5G4 - QuPanel 5G/LTE MIMO 4x4, 5 m Cable
The QuPanel 5G/LTE directional MIMO 4x4 high gain antenna is designed primarily for 5G and 4G LTE, but it is also compatible with 3G and 2G networks. This antenna enhances signal strength in rural and suburban areas, as well as in locations with weak mobile signals. It is intended for installation on buildings, either on a pole or a wall. With a very wide working frequency range, the antenna serves as a universal client for the 5G bands n77 and n78, as well as LTE bands including 700, 800, 1800, 1900, 2100, 2300, 2600, 3400, and 3800 MHz. It is compatible with Teltonika and other MIMO 4x4 5G/LTE/3G/2G modems and routers.
5G/LTE Antenna Specifications
- Frequency: 0.694 - 0.96 GHz; 1.7 - 2.2 GHz; 2.2 - 2.7 GHz; 3.3 - 3.8 GHz
- Supported LTE/5G bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 59, 62, 65, 66, 67, 68, 69, 85, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95
- Gain: 0.694 - 0.96 GHz: 7 dBi; 1.7 - 2.2 GHz: 7 dBi; 2.2 - 2.7 GHz: 7.5 dBi; 3.3 - 3.8 GHz: 5.5 dBi
- Front-to-back: 0.694 - 0.96 GHz: > 10 dB; 1.7 - 2.2 GHz: > 12 dB; 2.2 - 2.7 GHz: > 14 dB; 3.3 - 3.8 GHz: > 17 dB
- VSWR: < 1.70, max. < 2.00
- Beam width: 70°/70° +/- 15°
- Polarization: Dual polarized X-pol
- Impedance: 50 ohms
Mechanical Specification
- Materials: ABS, aluminum, PTFE, fiberglass
- Ingress protection: IP67
- Dimensions: 392 x 392 x 99 mm (15.43 x 15.43 x 3.90 inch)
- Weight: 3.7 kg (8.16 lbs.)
- Operating temperature: From -40°C to 75°C (from -40°F to 167°F)
- Cable length: 5 m
- Cable type: LMR195 white
- Connector type: 4x SMA plug.
9. Quwireless WiBOX SA M3DBC245-120-8V 3x 8 dBi 2,4 - 2,50 GHz and 3x 7 dBi ±1 dBi 4.60-6.40 G
The Wireless Instruments 3-Element MIMO 3x3 2.4/5 GHz Dual-Band Antenna for Wi-Fi is a robust and powerful panel designed for both outdoor and indoor applications. The WiBOX SA M3DBC245-120-8V is a 3-element patch antenna primarily intended for high-density installations where high gain and wide radiation patterns are required. The system offers relatively high gain with a wide horizontal beam and a low front-to-back ratio, making it a unique solution on the market. The antenna is designed to operate with 2.4 GHz/5 GHz access points and provides IP67 rating for the entire system, along with 3 RP-SMA/U.FL/MMCX pigtails in the installation box. The antenna is integrated into the WiBOX Medium housing from Wireless Instruments, which offers a compartment for electronic devices. The included WiMount mounting system allows for wall or mast installation.
Electrical Data
- Frequency: 2.4 - 2.5 GHz, 4.6 - 6.4 GHz
- Gain: 8 dBi, 7 dBi ±1
- VSWR: 25 dB
- Front-to-Back: >20 dB
- Impedance: 50 Ω
- Maximum Input Power: 20 W
- Lightning Protection: No
- DC Ground: Yes
Mechanical Specifications
- Material: ABS
- External Dimensions: 27.2 x 27.6 x 9.6 cm
- Connectors: RJ45 and 1xSMA/SMA RP/TNC RP/MMCX
- Weight: 1.8 kg
- Operating Temperature: from -40°C to 80°C
Mounting Kit
- Dimensions: 9.9 x 10.5 x 14.8 cm
- Adjustment Range: +/- 30°
- Weight: 0.87 kg
- Mast Dimensions: Range 25 - 65 mm
- Material: Polyamide with fiberglass + galvanized steel brackets.
Network antenna
EUR189,–
Quwireless WiBOX SA M3DBC245-120-8V 3x 8 dBi 2,4 - 2,50 GHz and 3x 7 dBi ±1 dBi 4.60-6.40 G
Wi-Fi
10. Quwireless WIBOX PA M5-24HV - 5 GHZ, 24 dBi MIMO Antenna
WiBOX PA M5-24HV, MIMO Panel Directional Antenna, 5 GHz, 24 dBi
The WiBOX PA M5-24HV is an innovative PTFE microstrip MIMO 2x2 antenna operating in the frequency range of 5.15 - 5.95 GHz with a gain of 24 dBi in both polarizations. The antenna's circuit board is made of PTFE, making it more efficient and durable than standard FR4 laminate. The antenna is designed for point-to-point connections, bridge connections, point-to-multipoint, as well as client applications that require a strong antenna. The reduced side lobes better focus the radiated power compared to standard antennas.
This antenna is housed in the WiBOX Large enclosure. The installation space measures 38 x 38 x 5 cm. The enclosure is protected to IP67 standards and provides ample room for installing the most popular Wi-Fi equipment. The WiBOX Medium allows for the antenna to be connected with other systems using the connection holes located at the bottom. The waterproof RJ45 connector enables power supply via PoE without the need to crimp an RJ45 connector on the mast or roof during installation. The collar around the connector ensures that the connector remains dry. The enclosure is made from durable plastic that withstands UV radiation and harsh weather conditions. The specially reinforced mount, made from fiberglass, ensures stability even in strong winds. The antenna comes with an SMA connector.
Features
- 2 x 24 dBi directional antenna
- Waterproof WiBOX LARGE outer enclosure
- Large and comfortable WiBOX Large for device installation
- Waterproof RJ45 system
- Adjustable mast mount
- Horizontal and vertical polarization, dual-polarized
- High-quality construction
- 2x SMA sockets
- Ground connection for lightning protection
- Stable WiMount mounting elements
- Designed for use in all weather conditions
Applications
- 5 GHz Wi-Fi applications.
