Best selling Server cabinet accessories from RS PRO
On this page you’ll find a ranking of the best Server cabinet accessories from RS PRO. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

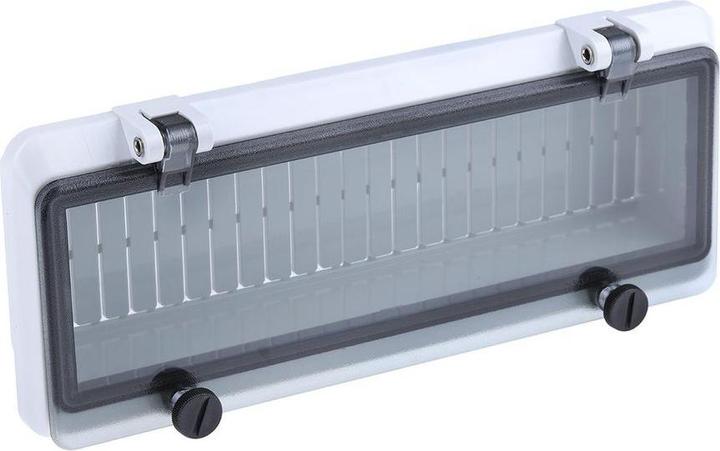

1. RS PRO IP67 inspection window,234x47x93.5mm
Viewing Window
Length: 234 mm
Width: 47 mm
Height: 94 mm
Dimensions: 234 x 47 x 93.5 mm
Material: Polycarbonate
For use with: 46277-3, DIN 43880
Color: Gray
This viewing window is designed for 2, 6, 8, and 12 modules and provides impact protection. It has an IP67 rating (window for 2 modules with IP44 protection). The polycarbonate-coated viewing window is smoke gray and compatible with DIN 43880 and 46277-3 enclosures. The windows are spring-loaded and can be secured with knurled screws. The temperature range is from -25 °C to +80 °C.
2. RS PRO Rack mount enclosure, 2U 245mm Black
Series: PF-19
Height: 2U
Horizontal Distance: 84 HP
Depth: 245 mm
Ventilated: Yes
Handles: Yes
Color: Black
Material: Steel
Dimensions: 88.1 x 482.6 x 245 mm
Height: 88.1 mm
Width: 482.6 mm
19-inch steel rack shelves. The innovative design of these shelves provides a robust, highly flexible 19" rack enclosure for electronic devices, suitable for nearly any application. It features a double-layer front panel with adjustable spacing (0 to 20 mm), an outer front panel made of 3 mm powder-coated aluminum, and is equipped with 4 fixed and 4 loose plates/chassis plates/crossbars for mounting components. Ventilation openings are located at the top, bottom, and sides. The product includes 2 extruded aluminum handles and 4 self-adhesive rubber feet and is delivered as a flat pack.
3. RS PRO IP67 inspection window,162x24x93.5mm
Viewing window
Length: 162 mm
Width: 24 mm
Height: 94 mm
Dimensions: 162 x 24 x 93.5 mm
Material: Polycarbonate
For use with: 46277-3, DIN 43880
Color: Gray
This viewing window is designed for 2, 6, 8, and 12 modules and features break-out protection. It has an IP67 rating (window for 2 modules with IP44 protection) and is made of smoke gray polycarbonate. The windows are spring-loaded and can be secured with knurled screws. Temperature range: -25°C to +80°C.

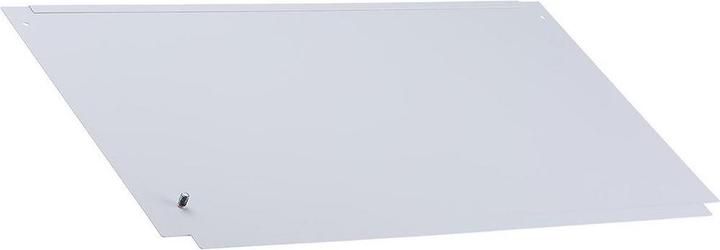

4. RS PRO 19in. Rack Unventilated Top Cover 250mm
Unventilated cover.
Available separately: top covers with ventilation holes, made of 0.9 mm steel, light grey and complete with two screws. 19" steel shelves. Housing powder coated light grey with anodised front panel. Base panels 0.9 mm steel, rear panels 1.2 mm steel. Complete with two handles.

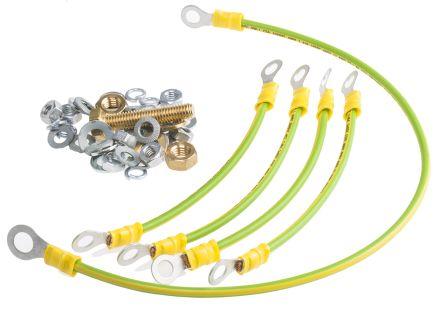

5. RS PRO COMMSRAK type 1 earthing kit
The Commsrak grounding kit from RS Pro is an essential accessory for server cabinets, providing a reliable grounding solution. It is designed to ensure the safety and stability of electrical installations in server environments. The kit is not available as a complete set but includes specific components that must be purchased separately. It is particularly useful for installation in laboratories or technical environments where proper grounding is crucial. Using the grounding kit helps minimize potential electrical disturbances and extends the lifespan of equipment. The product is manufactured in the UK, reflecting the manufacturer's commitment to sustainability and environmental awareness.
- Designed for the safe grounding of server cabinets
- Compatible with various mounting kits and accessories
- Made in the UK with a focus on sustainability.

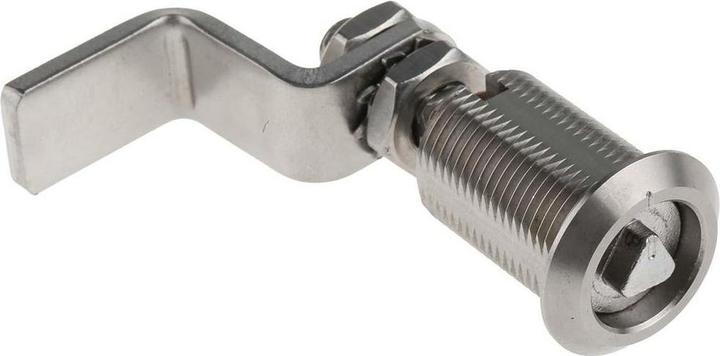

6. RS PRO S/Steel Compression Latch, 22.2x20.2
Grip style: Compression closure
Material: Stainless steel
The compression closures from RS Pro are designed for quick and secure sealing, where vibration, sealing, and quality are of utmost importance. Features and benefits include:.

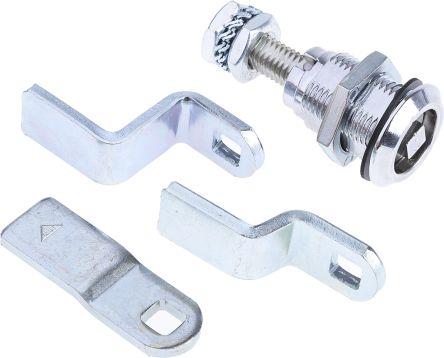

7. RS PRO Adjustable Compression Latch, 22.2x19.2
Material: Zinc alloy
Surface finish: Chrome-plated
Panel cutout: 22.2 x 19.2 mm
Maximum thickness of front panel: 20 mm
The compression latches from RS Pro are designed for quick and secure closure, where resistance to vibration, sealing, and quality are of utmost importance. Features and benefits include an IP65 protection rating, a locking indicator, and vibration resistance when locked. Available in stainless steel and zinc alloy. Typical applications include compression latches used under higher pressure on the seals of doors, enclosures, and machinery.
8. RS PRO Rack mount enclosure, 1U 245mm Black
Series: PF-19
Height units: 1U
Horizontal pitch: 84 HP
Depth: 245mm
Ventilated: Yes
Handles: Yes
Color: Black
Material: Steel
Dimensions: 43.7 x 482.6 x 245mm
Height: 43.7mm
Width: 482.6mm
This 19-inch steel enclosure features an innovative design that offers a rugged and highly flexible rack for electronic equipment, suitable for almost any application. It has a double layer front panel with adjustable spacing (0 to 20mm) and an outer front panel made of 3mm powder-coated aluminum. The enclosure is equipped with 4 fixed and 4 loose boards/chassis plates/crossbars for component mounting, as well as ventilation holes on the top, bottom, and sides. It includes 2 extruded aluminum handles and 4 self-adhesive rubber feet, and is supplied as a flat pack.
9. RS PRO Symmetric top hat miniature DIN rail,1m
Compatibility: Hat profile mini
Length: 1m
Width: 15mm
Height: 5.5mm
DIN rail type: Slotted
Material: Steel
DIN 46277 miniature DIN rail with hat profile. DIN rails and brackets are made of cold rolled, galvanized, and passivated steel. The coating thickness is at least 8 microns. All DIN rails comply with current BS, DIN, and CENELEC standards.
10. RS PRO 19in. Rack Case 2Ux250mm Natural F/Panel
Height units: 2U
Dimensions outside: 88 x 483 x 250 mm
Height outside: 88 mm
Outer width: 483 mm
Outer depth: 250 mm
Color: Gray
Outer case material: Aluminium, Steel
Front panel material: Aluminium
Standards met: RoHS compliant
Available separately: Top covers with ventilation holes, made of 0.9 mm steel, light grey and complete with two screws. 19" steel shelves. Housing powder coated light grey with anodised front panel. Base panels 0.9 mm steel, rear panels 1.2 mm steel. Complete with two handles.
