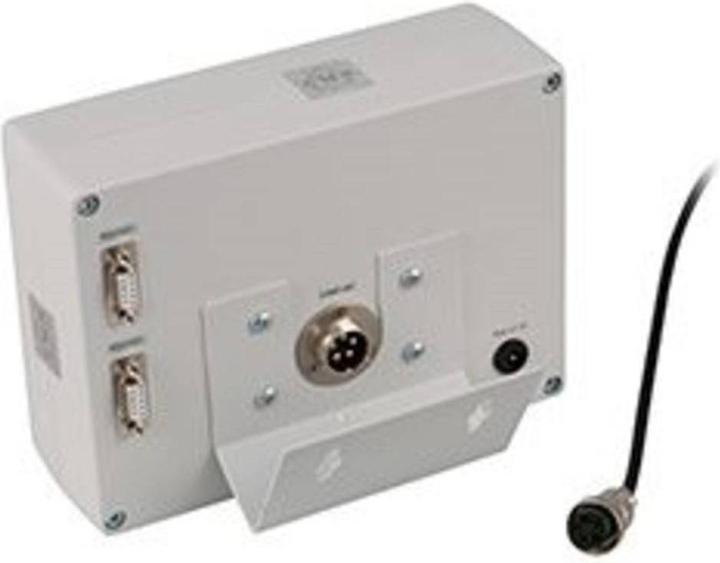

PCE Instruments PCE-SDF 300 Silowaage Wägebereich (max.) 300 kg Ablesbarkeit 10
1 item ordered
Product details
Level and withdrawal monitoring, freely adjustable limit loads, platform size 400 x 500 mm, 3 OC switching outputs, 1 interruption contact, bidirectional RS-232 interface, RS-485, analog outputs 4-20 mA, 0-10 V optional. The silo scale for container level and withdrawal monitoring provides the ability to effectively and reliably ensure the supply of a production facility. The silo scale for container monitoring can not only monitor the current fill level of the container but also the continuous weight decrease. With the monitoring of the current fill level, the silo scale for container level and withdrawal monitoring can prompt the machine operator in a timely manner to refill the container. For this purpose, the silo scale for container monitoring has three passive switching contacts (potential-free contacts, optocoupler outputs, OC). One switching contact of the monitoring silo scale can be used, for example, for a green traffic light. This switching contact is active when the actual state of the container is satisfactory. If the container reaches a minimum limit or minimum load, a second switching contact can activate a yellow or red traffic light to prompt the user to refill. The traffic lights are not included in the delivery but can be ordered optionally with the silo scale for container monitoring. The second monitoring capability of the silo scale is the continuous weight decrease. This function can monitor the filling processes of the machines and report discrepancies in material withdrawal. A weight decrease per time unit can be set in the silo scale for container level and withdrawal monitoring, for example, g/min, kg/min, g/hour, kg/hour. In case of deviations in material withdrawal, the silo scale for container monitoring will activate a switching contact that can be used to trigger, for example, a siren, traffic light, or machine shutdown.
Power supply | Electrical connection |
Item number | 65960787 |
Manufacturer | PCE Instruments |
Category | Precision scales |
Manufacturer no. | PCE-SDF 300 |
Release date | 24/12/2025 |
Calibrated according to | Factory standard (without certificate) |
Power supply | Electrical connection |
CO₂ emissions | 13,4 kg |
Climate contribution | EUR 0,34 |
Length | 40 cm |
Width | 50 cm |
