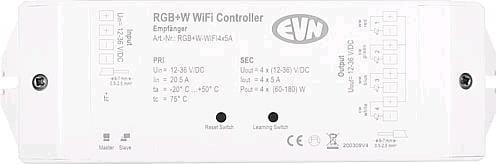

EVN Lighting Technology WIFI Controller Receiver RGB+W-WIFI4x5A

Manufacturer: EVN Lighting Technology
Designation: WIFI Controller Receiver RGB+W
Type: RGB+W-WIFI4x5A
Execution: dynamic
Suitable for outdoor use: no
Type of control: other
Number of color channels: 4
Programmable: yes
Housing: plastic housing
Construction: yes
Installation: yes
DIN rail mounting: no
Output voltage: 12-36 V
Input voltage: 12-36 V
Max. output current: 5 A
Protection class (IP): IP20
Protection class: III
Length: 178 mm
Width: 57 mm
Height: 22 mm
Diameter: 0 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

WIFI RGB controller for RGB and RGBW LED lights. Easy control of RGB lights via smartphone or tablet, compatible with both Android and iOS devices. Suitable for lights operating at 12, 24, and 36 V/DC. The actual input voltage to be used depends on the required voltage of the connected lights. 1x input and 1x output for 12-36 V/DC and 4x output (RGBW). The screw terminals are suitable for cables from 0.5 mm² to 2.5 mm². Technical data: ta: -20°C to 50°C, tc: 75°C, max. output power per channel: 5 A (60 W at 12 V/DC, 120 W at 24 V/DC, and 180 W at 36 V/DC). Optionally, control can also be done via radio transmitters at 868 MHz or 2.4 GHz.
