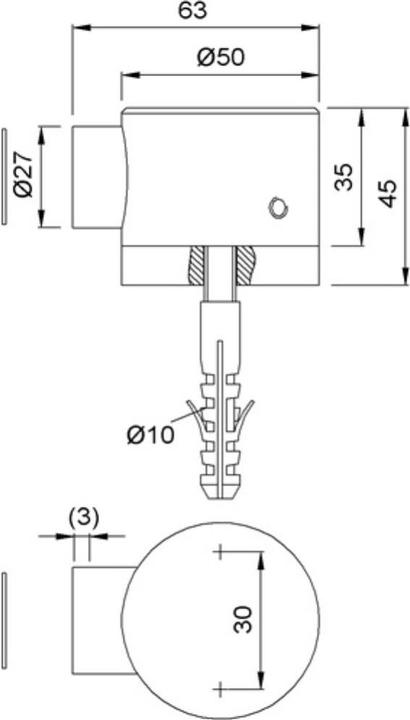

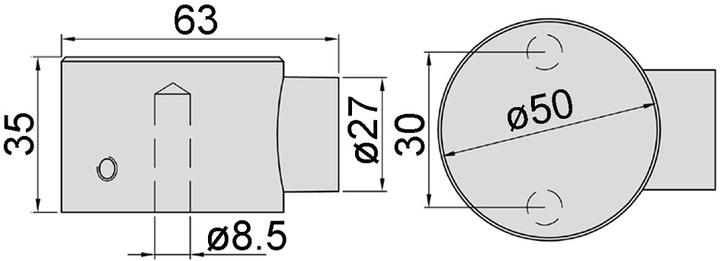

Aluminum · Steel counter plate for screwing or gluing · with permanent magnet · includes mounting materials · M8x90 stainless steel threaded pins · base (10 mm high) aluminum · black powder-coated. Maximum door weight usage is approximately 60 kg, with a holding force of 70 N. Function: The door is secured by pressing against the magnet. The magnet is spring-loaded, allowing the door to be slowed down. Additional technical specifications: · Width: 90 mm · Length: 92 mm · Depth: 92 mm · Height: 115 mm.

Installation: At the desired holding point, which should be as far away from the door hinge as possible, two dowels are embedded in the floor, the threaded pins are screwed in, the holder is placed on top, and secured with two side threaded pins.
