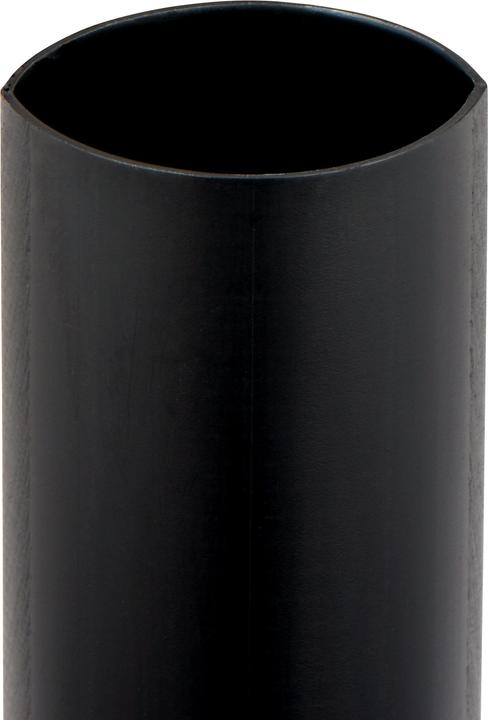

3M Deutschland Heat Shrink Tubing MDT-A 38/12-B

Manufacturer: 3M Deutschland
Description: Heat shrink tubing 38/12 mm, black, with adhesive
Type: MDT-A 38/12-B
Design: medium wall
Shrink ratio: 3:1
Inner diameter before shrinking: 38 mm
Inner diameter after shrinking: 12 mm
Wall thickness after shrinking: 3.3 mm
Length: 1 m
Operating temperature: 130 °C
Color: black
Transparent: no
Material: Polyolefins (PO-X)
Halogen-free: yes
With internal adhesive: yes
Printable: no
UL approval: no

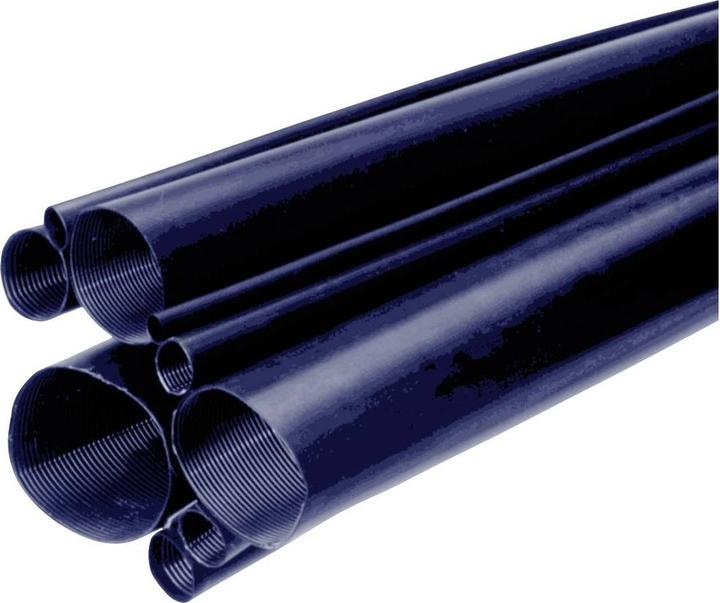

MDT-A heat shrink tubes are a medium wall shrink tubing series with hot melt adhesive, designed for reliable performance in electrical splicing, connections, and terminations up to 1.0 kV, as well as for mechanical and environmental protection. MDT-A shrink tubes feature a halogen-free, cross-linked polyolefin outer wall and a factory-applied adhesive layer on the inside.

The MDT-A heat shrink tubing is a halogen-free, medium wall heat shrink tubing made from cross-linked polyolefin with a hot melt adhesive coating. The hot melt adhesive penetrates all irregularities and cavities, preventing moisture ingress.

The MDT-A heat shrink tubing is suitable for insulating plastic and mass cables up to 0.6/1 kV for both outdoor and underground installations. The aging-resistant heat shrink tubing is UV-resistant and resistant to many chemical influences. It can be used in a temperature range of -55 °C to +130 °C.

With its high shrink ratio of 4.5 to 1, you can accommodate large diameter jumps with just one tube. The MDT-A heat shrink tubing meets technical requirements according to IEC 60684 and is approved by Lloyds Register of Shipping, certificate 95/30032(E5). It is halogen-free and RoHS compliant.

EAN: 8712403518908.
