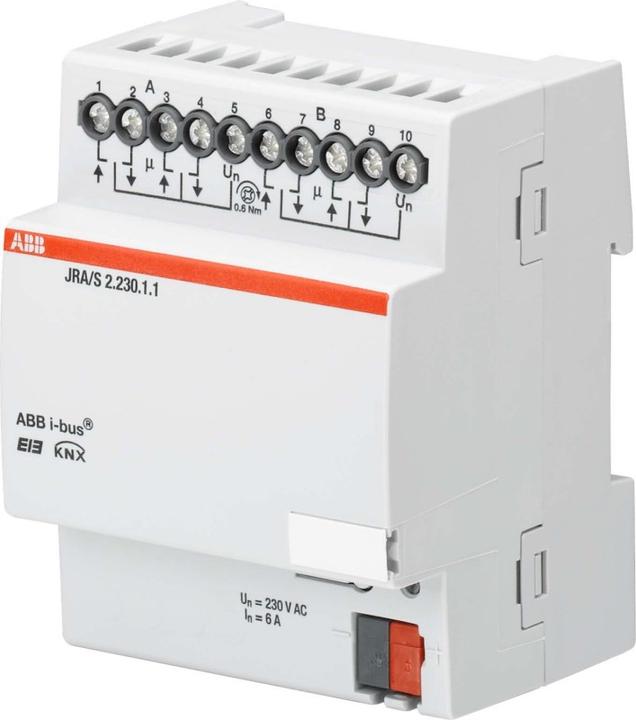

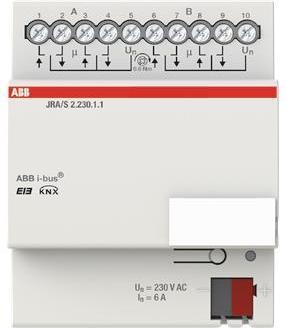

ABB Stotz S&J Double Blinds Actuator JRA/S2.230.1.1

Manufacturer: ABB Stotz S&J
Designation: Double Blinds Actuator with Locking
Type: JRA/S2.230.1.1
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: REG
Width in Division Units: 4
With Bus Coupling: no
Bus Module Removable: no
Local/Manual Control: no
With LED Display: yes
Switching Current Resistive: 6 A
Max. Switching Power: 2400 W
Max. Number of Blinds Outputs: 2
Switching Function: yes
Type of Current: AC
Protection Class (IP): IP20
Min. Depth of Device Box: 64.5 mm

ABB Stotz S&J Double Blinds Actuator JRA/S2.230.1.1: further details
For controlling two independent groups of two 230 V AC drives each for positioning blinds, shutters, awnings, and other drapes, as well as for controlling doors, windows, and ventilation flaps. The outputs are electromechanically locked against each other. Functions: Up/Down, Slat Adjustment/Stop, Position and Scene Control, Safety Functions, Sun Protection and Heating/Cooling Automation, Status Messages.
KNX, EAN: 4016779698481.
