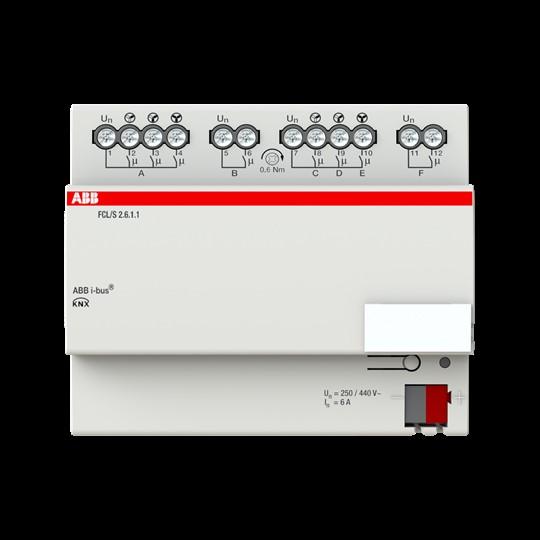

ABB Stotz S&J Fan Actuator FCL/S2.6.1.1

Manufacturer: ABB Stotz S&J
Designation: Dual Fan Actuator, 6A
Type: FCL/S2.6.1.1
Bus System KNX: yes
Bus System KNX-RF: no
Bus System Radio Bus: no
Bus System LON: no
Bus System Powernet: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: REG
Width in Division Units: 6
With Bus Coupling: no
Bus Module Removable: no
Control Size Continuous: no
Control Size Switching: yes
Valve Protection Function: yes
Manual Control: no
Max. Switching Current (Resistive Load): 6 A
Number of Outputs: 2
Max. Output Current: 6 A
Switching Voltage: 230 V
Protection Class (IP): IP20
Min. Depth of Device Box: 64.5 mm

ABB Stotz S&J Fan Actuator FCL/S2.6.1.1: additional details
For controlling two fans or ventilators with up to 3 stages through relays in step or changeover switching. Additionally, the device has a potential-free switching output for controlling accessories such as dampers or valves. Alternatively, the second fan output can be used as a 3-fold switching output with a common potential. The fan stage can be directly selected, increased, and decreased, as well as controlled via the control sizes of an external regulation. Furthermore, there is the option to override the fan stage through a forced control. Additionally, error monitoring and fan run-on can be parameterized with the ETS application.
