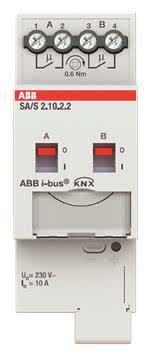

ABB Stotz S&J Switching Actuator SA/S2.10.2.2 Manufacturer: ABB Stotz S&J Description: 2-channel switching actuator, 10A, DIN rail type: SA/S2.10.2.2 Bus system KNX: yes Bus system KNX wireless: no Bus system wireless bus: no Bus system LON: no Bus system Powernet: no Other bus systems: without wireless bidirectional: no Mounting type: DIN rail Width in division units: 2 Local/manual operation: yes With LED display: yes Max. switching power: 2500 W Max. switching power LED: 400 W Output power: 2500 W Suitable for C-load: no Max. number of switching outputs: 2 Max. switching current: 10 A Rated current: 10 A Rated operating voltage: 230 V Different phases connectable: yes With bus coupling: yes Bus module detachable: no Min. depth of device box: 64.5 mm Modular expansion option: no Protection class (IP): IP20

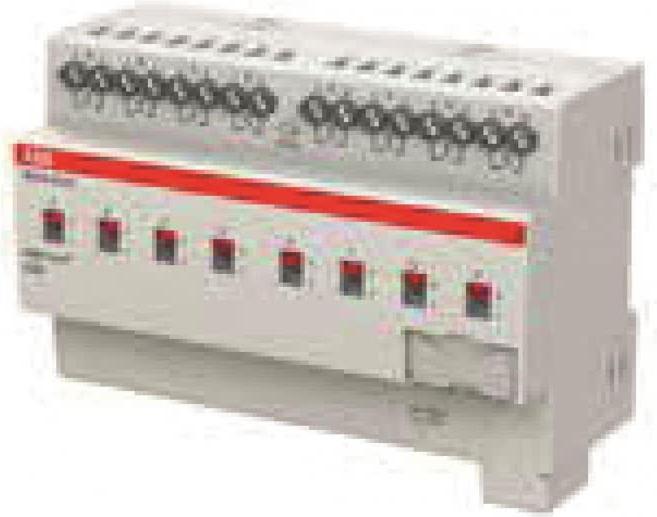

The switching actuator controls electrical consumers via ABB i-bus® with 2, 4, 8, or 12 independent potential-free contacts. Manual operation of the contact is possible for each output. The switching state of the contact is displayed. The 10A series is particularly suitable for switching resistive, inductive, and capacitive loads, as well as fluorescent lamp loads according to DIN EN 60669. EAN: 4016779066556.
