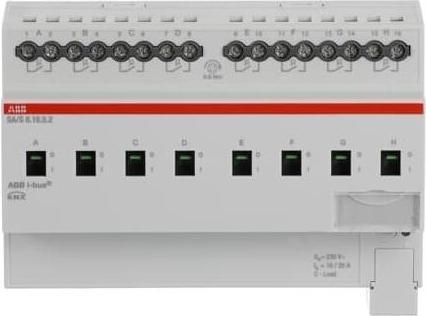

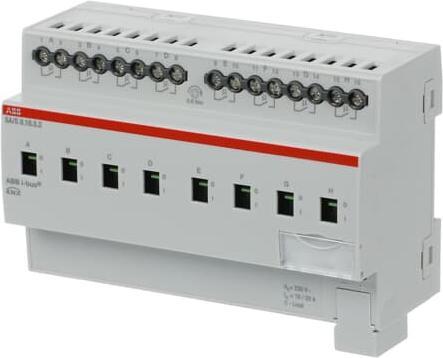

ABB Stotz S&J switch actuator SA/S8.16.5.2

Manufacturer: ABB Stotz S&J
Designation: Switch actuator
Type: SA/S8.16.5.2
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: None
Radio bidirectional: No
Mounting type: REG
Width in division units: 8
On-site/manual operation: Yes
With LED display: Yes
Max. switching capacity: 3680 W
Max. LED switching capacity: 400 W
Output capacity: 3680 W
Suitable for C-load: Yes
Max. number of switching outputs: 8
Number of switching outputs: 8
Max. rated current: 20 A
Rated operating voltage: 230 V
Different phases connectable: Yes
With bus coupling: Yes
Bus module removable: Yes
Min. depth of device box: 64.5 mm
Modular expansion option: Yes
Protection class (IP): IP20

The ABB Stotz S&J switch actuator SA/S8.16.5.2 switches electrical loads via ABB i-bus® with 2, 4, 8, or 12 independent floating contacts. Manual operation of the contact is possible for each output, and the switching state of the contact is displayed. The 16/20A, 16A-AC3, C-load series is particularly suitable for switching loads with high inrush current peaks, such as lamps with compensation capacitors or fluorescent lamp loads according to DIN EN 60669.
