Bachmann 683.881 Power cable orange 5 m
5 m9 pieces in stock at supplier
Product details

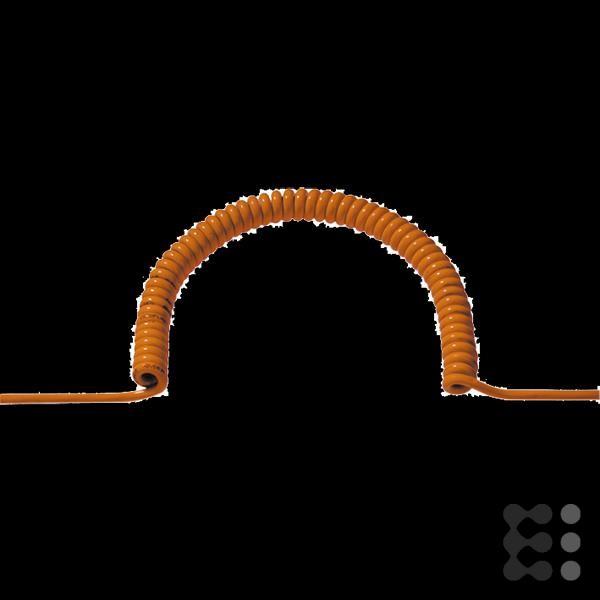

Bachmann Spiral Cable PUR 683.881
Manufacturer: Bachmann
Description: Spiral Cable PUR 5G2.5/1.0m
Type: 683.881
Conductor Nominal Cross-Section: 2.5 mm²
Conductor Class Kl.5: fine-stranded
Number of Conductors: 5
Insulation Material of Conductors: Rubber
Conductor Marking: Color
With Protective Conductor: No
Sheath Material: Polyurethane (PUR)
Sheath Color: Orange
Spiral Length (Closed): 1000 mm
Spiral Length (Extended): 5000 mm
Flame Resistant: according to IEC/EN 60332-1-2
Approximate Outer Diameter: 13.7 mm
Permissible Cable Outer Temperature during Installation/Handling: -35..80 °C
Nominal Voltage U0: 450 V
Nominal Voltage U: 750 V
Bachmann Spiral Cable PUR 683.881: additional details
Power Distributor SPIRAL CABLE
Power Cable 1,000 mm, 5,000 mm, 46 mm, 18 mm
H07BQ-F 5G 2.5 mm² orange, 200 mm straight, cleanly cut, 200 mm straight, cleanly cut unpackaged
EAN: 4016514005123.
cable type | Coiled cables |
Cable cross section | 2.50 mm² |
Voltage | 750 V |
Cable length | 5 m |
Exact colour description | Orange |
Item number | 14177493 |
Manufacturer | Bachmann |
Category | Cable conductors |
Manufacturer no. | 683.881 |
Release date | 11/11/2020 |
Colour | Orange |
Exact colour description | Orange |
Material group | Plastic |
Material | Polyurethane (PUR) |
Material of the isolation | Rubber |
cable type | Coiled cables |
Cable cross section | 2.50 mm² |
Number of cores | 5 x |
Nominal voltage U | 750 V |
Nominal voltage U0 | 450 V |
Cable Application | Electricity |
Voltage | 750 V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Cable length | 5 m |
Outside diameter | 13.70 mm |
