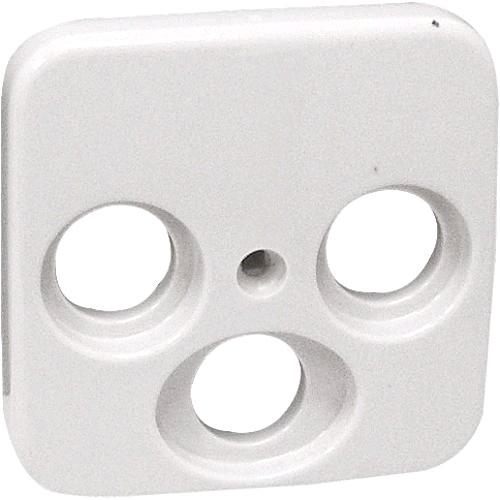

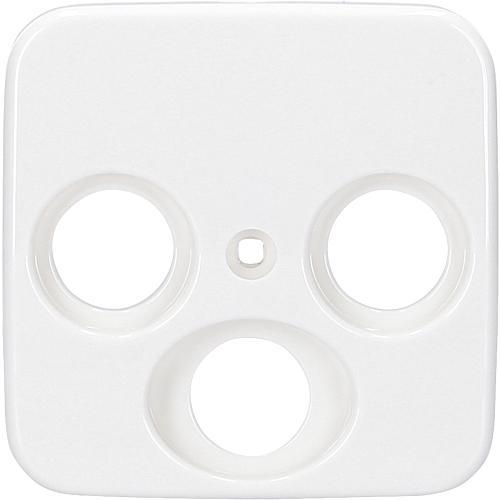

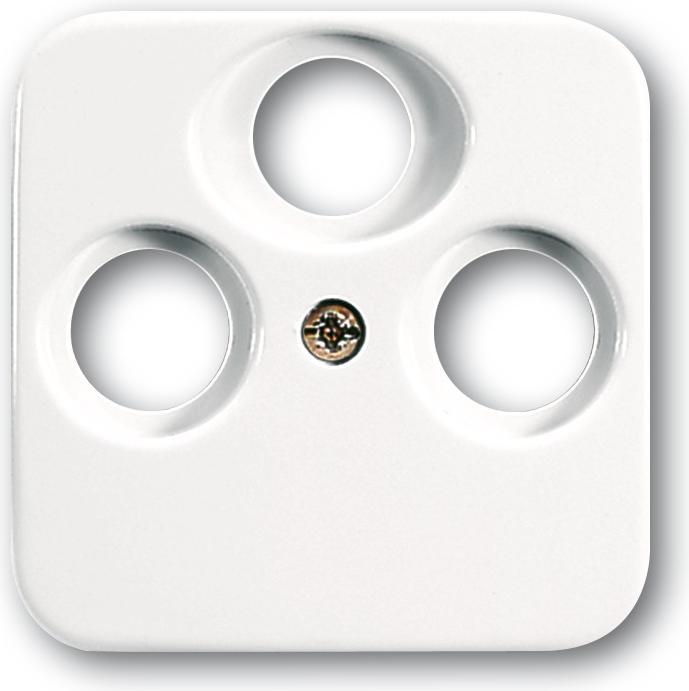

Busch-Jaeger central disc aws 1743-03-214
Manufacturer: Busch-Jaeger
Designation: Central disc aws m.3
Connection: TV/SAT
Type: 1743-03-214
Assembly: Central plate
Usage: Satellite
Support ring: No
With dust protection: No
With hinged cover: No
Outlet direction: Straight
Labeling field: Without labeling field
With imprint: No
Mounting type: Flush-mounted
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Finish: Glossy
Color: Alpine white
RAL number (similar): 9010
Transparent: No
Mounting type: Fastening with screw
Number of modules (for modular design): 1
With sockets/couplings: No
Suitable for number of sockets/couplings: 3
With strain relief: No
Sockets shielded: No
Housing shielded: No
Luster terminal: No
Suitable for protection class (IP): IP20
Device width: 71 mm
Device height: 71 mm
Device depth: 32 mm
Min. depth of device box: 40 mm
Busch-Jaeger central plate aws 1743-03-214: More details with 3 connections for radio/TV/SAT with M3 central fixing.
