Busch-Jaeger Central Plate aws 1803-02-74

Manufacturer: Busch-Jaeger
Description: Central plate aws for UAE connection sockets
Type: 1803-02-74
Composition: Control element
Usage: UAE/IAE
Mounting ring: no
With dust protection: no
With flip cover: no
Outlet direction: angled
Labeling field: without labeling field
With printing: no
Mounting type: flush-mounted
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: glossy
Color: alpine white
RAL number (similar): 9010
Transparent: no
Mounting type: screw mounting
Number of modules (in modular design): 1
With sockets/couplings: no
Suitable for number of sockets/couplings: 2
With strain relief: no
Shielded sockets: no
Shielded housing: no
Terminal block: no
With lighting: no
Suitable for protection class (IP): IP20

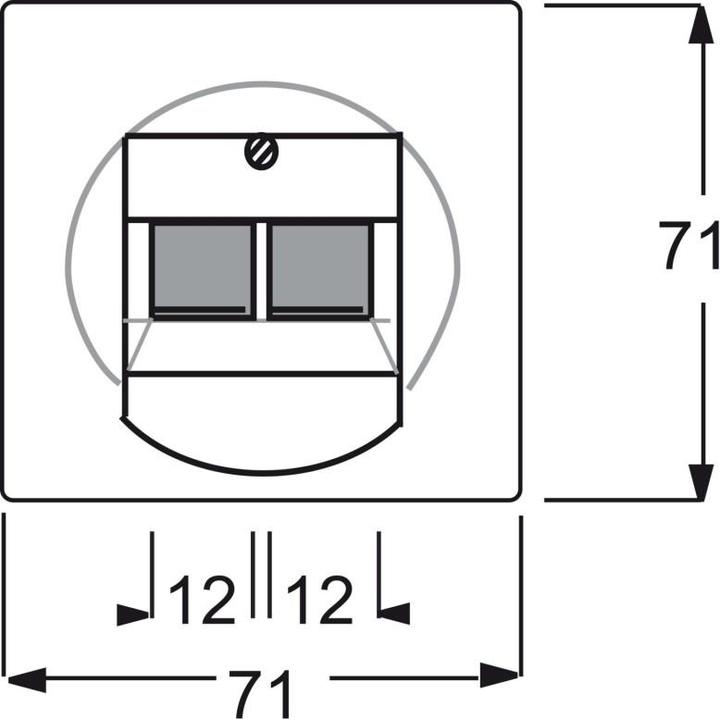

Device width: 71 mm
Device height: 71 mm
Device depth: 13 mm
Min. depth of device box: 32 mm

Busch-Jaeger Central Plate aws 1803-02-74: additional details
As a cover for UAE connection sockets. Article No. 0214, 0215 (Category 3/ISDN), 0217-xxx, 0218-xxx, 0218/12-xxx (Category 5e/Cat. 6 A ISO/data technology) and comparable types from Rutenbeck, Brand-Rex, AMP, BTR, cti, Telegärtner. With angled outlet.
EAN: 4011395790809.
