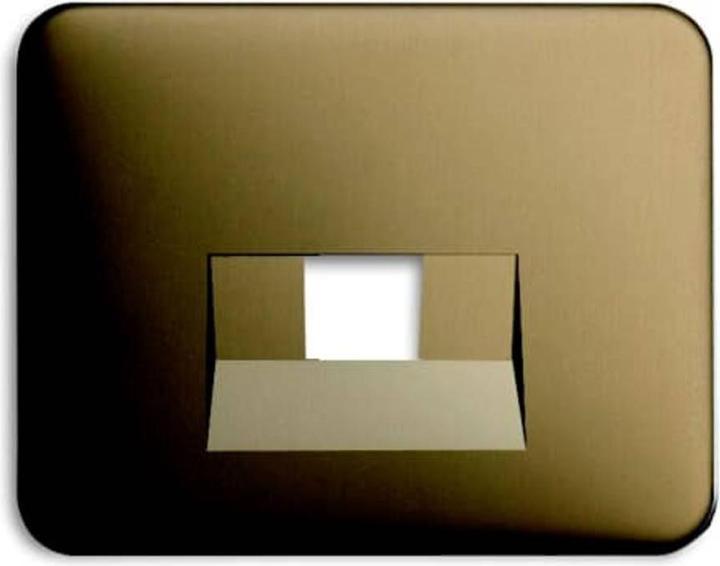

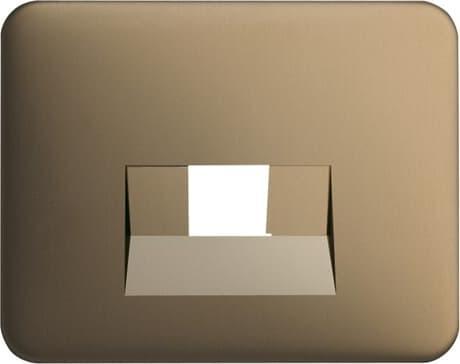

Busch-Jaeger Central Plate BRZ 1803-21

Manufacturer: Busch-Jaeger
Designation: Central plate BRZ for UAE connection box 1f
Type: 1803-21
Composition: Control element
Usage: UAE/IAE
Support ring: no
With dust protection: no
With flap cover: no
Outlet direction: angled
Labeling field: without labeling field
With printing: no
Mounting type: flush-mounted
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: glossy
Color: bronze
Transparent: no
Mounting type: screw fastening
Number of modules (in modular design): 1
With sockets/couplings: no
Suitable for number of sockets/couplings: 1
With strain relief: no
Shielded sockets: no
Shielded housing: no
Terminal block: no
With lighting: no
Suitable for protection class (IP): IP20

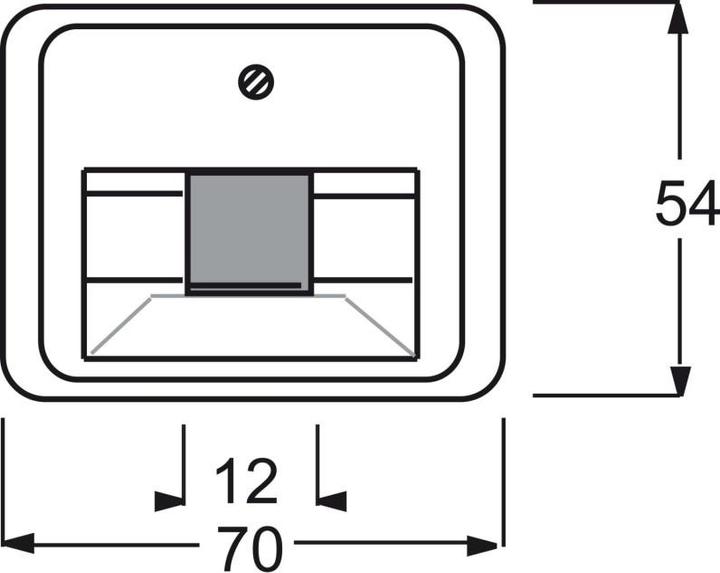

Device width: 70 mm
Device height: 54 mm
Device depth: 17 mm
Min. depth of device box: 32 mm

Busch-Jaeger Central Plate BRZ 1803-21: additional details
As a cover for UAE connection boxes. Article No. 0213 (Category 3/ISDN), 0216-101, 0218/11-101 (Category 5e/6 data technology) and comparable types from Rutenbeck. For WLAN access points 8186/31 and 8186/41. Brand-Rex (WAEGV 8 EKR/EK). BTR (UAE design and IAE design). Telegärtner (AMJ 45, UMJ 45). With angled outlet. EAN: 4011395785201.
