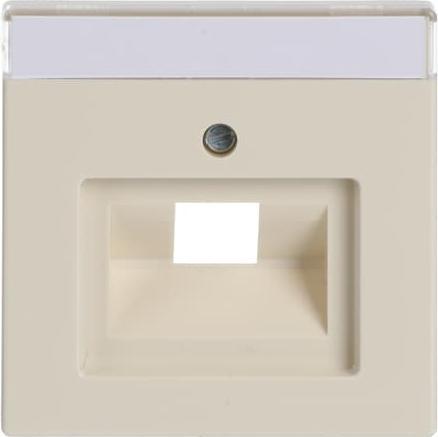

Busch-Jaeger Central Plate sav/ews 1803-82

Manufacturer: Busch-Jaeger
Designation: Central plate sav/ews for UAE connection box 1f
Type: 1803-82
Composition: Control element
Usage: UAE/IAE
Mounting ring: no
With dust protection: no
With flap cover: no
Outlet direction: angled
Labeling field: with labeling field
With print: no
Mounting type: flush-mounted
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: glossy
Color: savanna/ivory white
RAL number (similar): 1013
Transparent: no
Mounting type: screw mounting
Number of modules (in modular design): 1
With sockets/couplings: no
Suitable for number of sockets/couplings: 1
With strain relief: no
Shielded sockets: no
Shielded housing: no
Terminal block: no
With lighting: no
Suitable for protection class (IP): IP20
Device width: 63 mm
Device height: 63 mm
Device depth: 16.1 mm
Min. depth of device box: 32 mm

Busch-Jaeger Central Plate sav/ews 1803-82: additional details
As a cover for UAE connection boxes. For WLAN access points 8186/31 and 8186/41. With angled outlet. With labeling field. Size of the labeling field: 60 x 9 mm.
EAN: 4011395995532.
