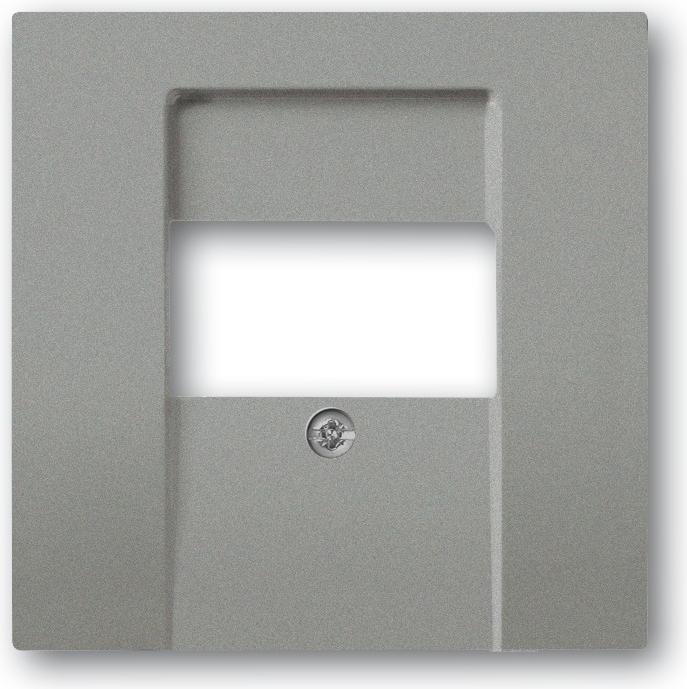

Busch-Jaeger central plate meteor/gr 1766-803

Manufacturer: Busch-Jaeger
Designation: Central plate meteor/gr for UAE/TAE/LS
Type: 1766-803
Composition: Operating element
Usage: TAE
Support ring: No
With dust protection: No
With hinged cover: No
Direction of outlet: Straight
Labeling field: Without labeling field
With imprint: No
Mounting type: Flush-mounted
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Painted
Finish: Glossy
Color: Meteor/grau metallic
Transparent: No
Mounting type: Mounting with screw
Number of modules (for modular design): 1
With sockets/couplings: No
With strain relief: No
Sockets shielded: No
Housing shielded: No
Luster terminal: No
Suitable for protection class (IP): IP20
Device width: 71 mm
Device height: 71 mm
Device depth: 32 mm
Min. depth of device box: 40 mm

Further details:
For TAE inserts. For UAE/TAE inserts. For USB, VGA, HDMI connection boxes and communication adapters. For loudspeaker outlets. For USB power supply insert 6472 U. Suitable for article number 0248/0x-101. For data modules. Suitable for part number 0219/12 and 0219/13. For Telegärtner modular junction boxes with 90° RJ45 outlet (MJ and WE series).
EAN: 4011395110515.
