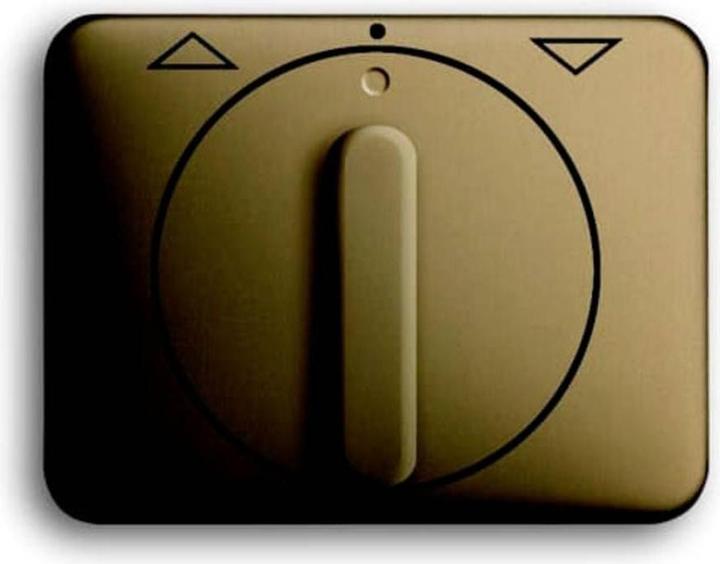

Busch-Jaeger central disc BRZ 1740 DR-21

Manufacturer: Busch-Jaeger
Designation: Central disc BRZ blind with rotary handle
Type: 1740 DR-21
Design: Rotary knob
Imprint/marking: Symbol "arrows"
Scannable symbol/accessible: No
Use: Blind
Suitable for bus system push-button coupling: No
Mounting type: Clamp mounting
Control window/light outlet: No
Material: Metal
Material grade: Aluminum
Halogen-free: Yes
Surface protection: Anodized
Finish: Matt
Color: Bronze
With labeling field: No
With replaceable lens/symbol: No
Suitable for protection class (IP): IP20
Impact resistance: IK03

Busch-Jaeger central plate BRZ 1740 DR-21: More details as cover for flush-mounted blind switches/pushbuttons. For insert 2712/2713 U and 2722/2723 U. EAN: 4011395138502.
