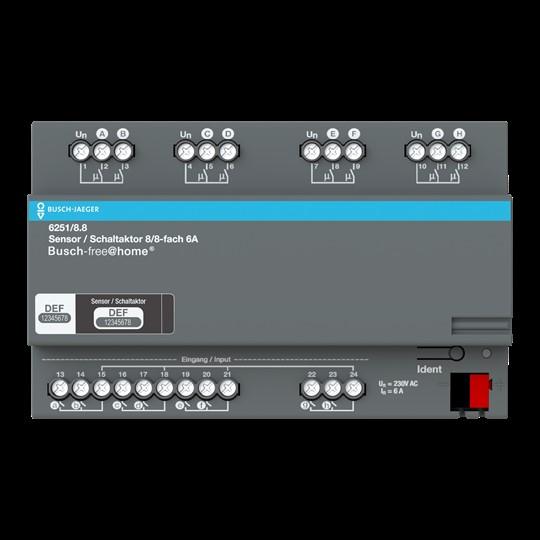

Busch-Jaeger Sensor/Switch Actuator 6251/8.8

Manufacturer: Busch-Jaeger
Designation: Sensor/Switch Actuator 8/8-fold DIN Rail Actuator
Type: 6251/8.8
KNX Bus System: no
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: others
Bidirectional Radio: yes
Mounting Type: DIN Rail
Width in Division Units: 8
Local/Manual Operation: no
With LED Display: no
Number of Digital Inputs: 8
Max. Switching Power: 1200 W
Output Power: 1380 W
Suitable for C-Load: no
Max. Number of Switching Outputs: 8
Max. Switching Current: 6 A
Rated Current: 6 A
Rated Operating Voltage: 230 V
Different Phases Connectable: yes
With Bus Coupling: no
Bus Module Removable: no
Min. Depth of Device Box: 64.5 mm
Modular Expansion Option: no
Protection Class (IP): IP20

Busch-Jaeger Sensor/Switch Actuator 6251/8.8: Additional Details
8-fold switch actuator/binary input for Busch-free@home®. Combination device with 8 binary inputs and 8 switch actuators. Conventional switches or auxiliary contacts can be connected to 8 channels. The information from the contact query can be used to control Busch-free@home® actuators or to capture status information. The contact query voltage is provided by the device itself. Maximum cable length with a cross-section of 1.5 mm² is under 100 m. For switching 8 independent 230 V~ consumers. No additional commissioning software is required. Programming is only possible with bus voltage applied via the web interface of the system access point. Further information on commissioning and operation can be found in the system manual and the online operating instructions.
EAN: 4011395180396.
