Caleffi Diaphragm safety valve 1/2inch, 8 bar
More than 10 pieces in stock at supplier
Product details
The Caleffi membrane safety valve is an essential safety device specifically designed for use in closed hot water systems. It protects against pressure exceedances and meets the requirements of TRD 702 as well as DIN 4753 Part 1 and DIN 1988. The valve is available in a corner design with an integrated air vent and is made of robust brass, while the spring cover is made of plastic. The sealing disc and membrane ensure reliable functionality. With a maximum operating pressure of 8 bar and a temperature range of 5 to 95 degrees Celsius, this valve is suitable for various applications in the field of potable water preparation. The factory settings allow for adjustments to different pressure requirements, enhancing the flexibility and efficiency of the product.
- Compliance with safety standards TRD 702 and DIN 4753
- Corner design with integrated air vent
- Maximum operating pressure of 8 bar
- Temperature range of 5 to 95 degrees Celsius.
Exact colour description | Bronze+Blue |
Material | Brass |
Sanitary valve type | Boiler valve |
Connection thread | 1/2" |

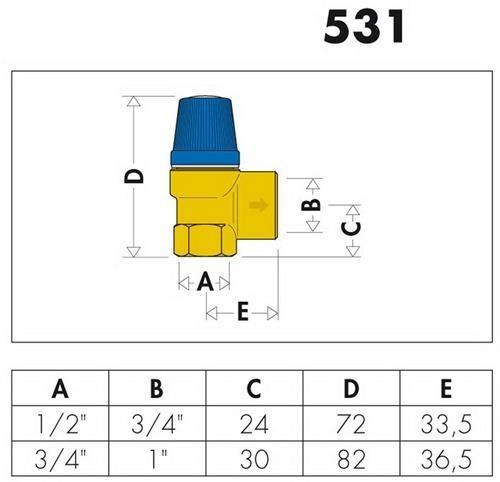

Length | 75 mm |
Diameter | 50.80 mm |
Item number | 22563435 |
Manufacturer | Caleffi |
Category | Valve |
Manufacturer no. | 531480 |
Release date | 3/10/2022 |
Exact colour description | Bronze+Blue |
Colour | Bronze |
Material | Brass |
Material group | Metal |
Sanitary valve type | Boiler valve |
Connection thread | 1/2" |
Max. Operating pressure | 8 bar |
Country of origin | Germany, Italy |
CO₂ emissions | 11,92 kg |
Climate contribution | EUR 0,30 |
Items per sales unit | 1x |
Length | 75 mm |
Width | 50 mm |
Diameter | 50.80 mm |
Height | 35 mm |
Weight | 180 g |
Product Safety |
Length | 7.90 cm |
Width | 5.40 cm |
Height | 3.80 cm |
Weight | 179 g |
