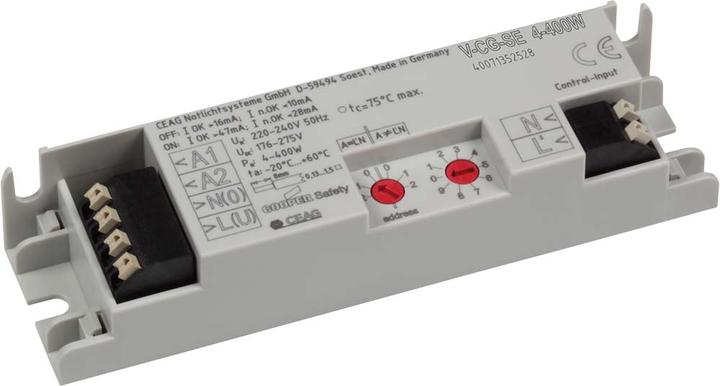

Ceag Notlichtsysteme monitoring module V-CG-SE 4-400W

Manufacturer: Ceag Notlichtsysteme
Designation: Monitoring module 176-250V 4-400W
Type: V-CG-SE 4-400W
Length: 110 mm
Width: 30 mm
Height: 21 mm

Ceag emergency lighting systems monitoring module V-CG-SE 4-400W offers low operating costs due to reduced standby power loss of less than 0.5 W, facilitating easier installation in narrow luminaires without a protective earth connection. It is suitable for use in luminaires of protection class I or II, with variable mounting options for different installation positions (horizontal or upright on the side). The module prevents installation errors with a mains connection protected against polarity reversal.

This universal monitoring module supports connected loads of 4-400 W and reduces inspection effort thanks to CEWA GUARD and S+ technology, allowing automatic function monitoring of up to 20 luminaires per circuit. Installation costs are minimized with STAR technology, enabling freely programmable mixed operation of the switching types per luminaire in one circuit, eliminating the need for an additional data line to the luminaires.

It features an extended ambient temperature range and a separate control input for parallel on-site switching with positive or inverted logic. The supply voltage is 220-240V, 50/60Hz, with a maximum permissible inrush current of 30A and a maximum power length of 50m (module luminaire).
