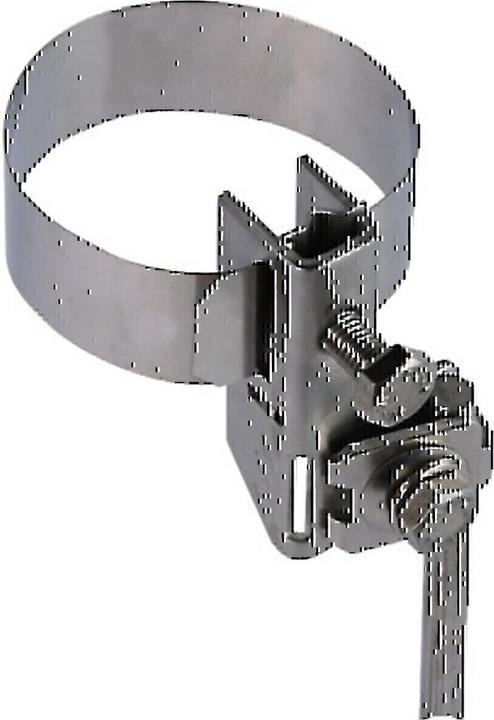

DEHN Antenna Band Pipe Clamp BRS16168AK1X102X68V2

Manufacturer: DEHN
Description: Antenna band pipe clamp D 27-165 mm stainless steel
Type: BRS16168AK1X102X68V2
Clamping/holding range: 16..168 mm
Min. clamping/holding range in inches: 3/8 inch
Max. clamping/holding range in inches: 6 inches
Diameter of the cable holder: 6..8 mm
Material: Stainless steel 304 (V2A)
Surface protection: untreated
Bimetal connector: no
Explosion-proof: no

Further details: Antenna band pipe clamp according to DIN EN 62561-1, for integrating pipes into the protective and functional potential equalization according to DIN VDE 0100-410/540 and the lightning protection potential equalization according to DIN EN 62305-3 (VDE 0185-305-3). Complete design with continuously adjustable band made of stainless steel, for connecting 1 conductor Rd D10 mm or 1-2 conductors Rd D6-8 mm or 4-50 mm² (single/multi-stranded).
EAN: 4013364094109.
