Simplify the installation of your Doorbird door opener with the PoE Converter A1071.

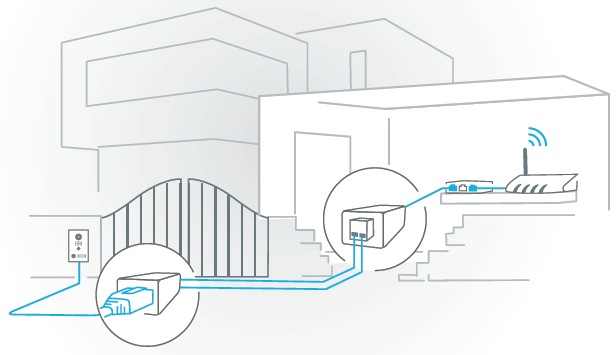

The Doorbird PoE Ethernet Converter with 2 cable fibers is likely the most powerful and compact converter in the world. It allows you to transmit data (Ethernet) and power (PoE) over a two-fiber cable. Specifically, it enables you to repurpose the cable fibers of your existing doorbell to simplify the connection of your Doorbird. The cable fibers of the doorbell provide power to your door opener and connect it to the internet, all without the need to run a power cable.

Note: A separate PoE switch or PoE injector is required (not included).

Features:

• Utilizes existing wiring.
• Only one two-fiber cable is needed for power and data transmission.
• Sturdy, ultra-compact metal housing.
• Quick and easy installation.

Technical Specifications:

• Dimensions: 33 x 25 x 88 mm (H x W x D)
• Power Supply: PoE Switch or PoE Injector (IEEE 802.3 af/at, not included)
• Operating Temperature: -25 to +55° C
• Transmission Speed: Up to 60 Mbit/s
• Latency: ~ 0.01 ms
• Connection: 1x RJ45, 2x screw terminals
• PoE: 802.3 af/at Mode A and PoE, up to 30W.
• Data Pairing: 1/2 (+), 3/6 (-)
• Transmission Range: 80 meters. Unshielded two-fiber cable
• Certifications: CE, FCC, RoHS, IP50
• Weight: 140g

Package Contents:

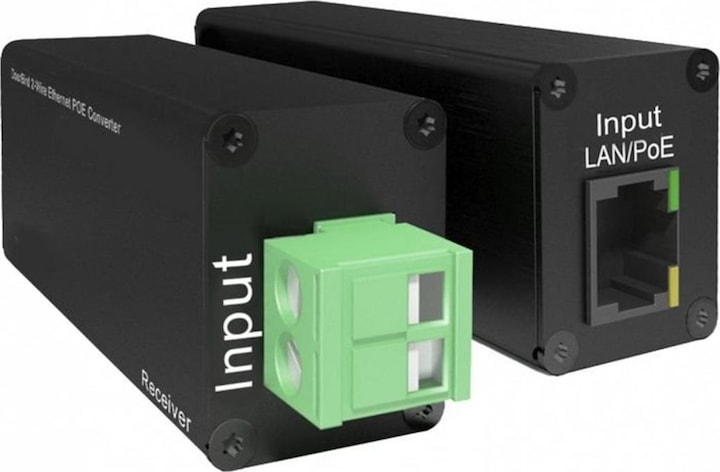

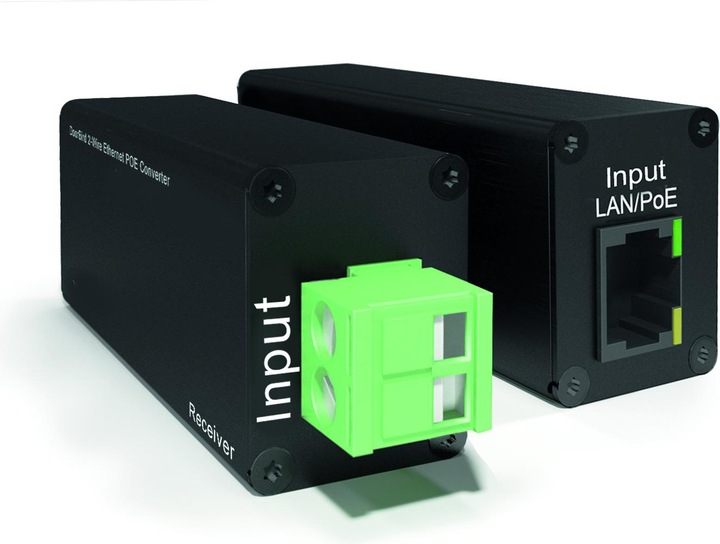

• 1 x Doorbird PoE Ethernet Converter 2 Transmitters
• 1 x Doorbird PoE Ethernet Converter 2 Receivers
• 1 x DIN Rail Adapter

Required Accessories:

• 2 x Network Cables, IEEE 802.3 af/at PoE
• Switch or PoE Injector.
