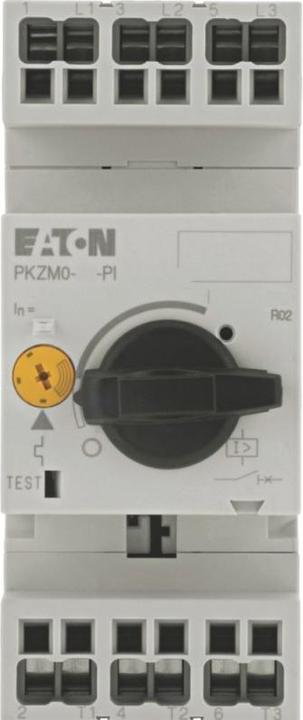

The PKZM0-2.5-T-PI from Eaton is a transformer protection switch designed for use in electrical installations. With a rated continuous current of 2.5 A and a maximum rated voltage of 690 V, this device provides reliable protection for transformers and generators. The switch is equipped with a rotary knob that allows for easy operation. It meets the standards IEC/EN 60947 and VDE 0660, highlighting its suitability for industrial applications. The PKZM0-2.5-T-PI is suitable for DIN rail mounting, enabling flexible installation in various environments. The protection class IP20 ensures that the device is protected against solid foreign objects with a diameter greater than 12.5 mm, but not against water. The operating temperature range is from -25 °C to +55 °C, allowing for broad applicability in different climatic conditions.

• Overload relay with an adjustable range from 1.6 A to 2.5 A
• Maximum short-time delayed short-circuit release current of 50 A
• Suitable for use in electrical installations according to IEC/EN 60947
• Easy operation via rotary knob control element
• DIN rail mounting allows for flexible installation options.
