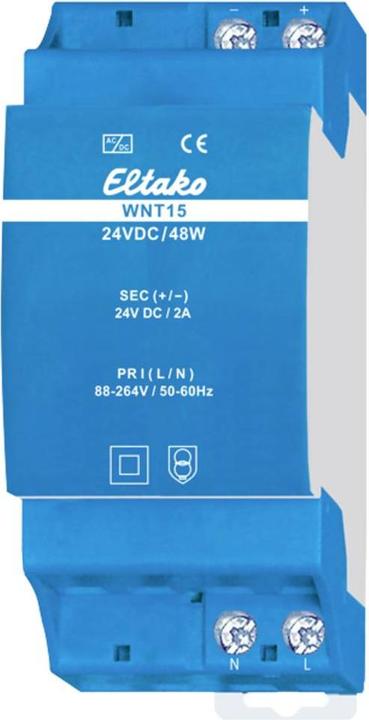

Wide-range switch-mode power supply, rated power 24/48 W, standby loss only 0.1/0.2 watts. Rail-mounted devices for installation on DIN rail EN 60715 TH35. One division unit is 18 mm wide and 58 mm deep. Two division units are 36 mm wide and 58 mm deep. For loads greater than 50% of the rated power, and always with adjacent switch-mode power supplies and dimmers, a ventilation distance of 1/2 division unit is required on both sides using spacers DS12. Wide-range input voltage is 88-264 V AC (110 V -20% to 240 V +10%). Efficiency is 91%. Stabilized output voltage is ±1%, with low residual ripple. The device is short-circuit proof and has overload and over-temperature protection by shutdown with automatic restart after fault clearance (auto-recovery function). Type of supply voltage is AC1. Output voltage is 24 V. Maximum output current is 12 A. Adjustable output voltage: no. Rated output voltage is 24 V. Short-circuit proof: yes. Rated supply voltage is AC 50 Hz 110 - 240 V. Regulated output voltage: yes. Power output is 48 W. Stabilized: yes. Type of electrical connection is screw connection. Rail mounting is possible. Wall mounting is not possible. Suitable for rail mounting: yes. Width in division units is 2. Installation width is 36 mm. Width is 36 mm. Height is 58 mm. Depth is 58 mm. Protection class (IP) is IP20.
