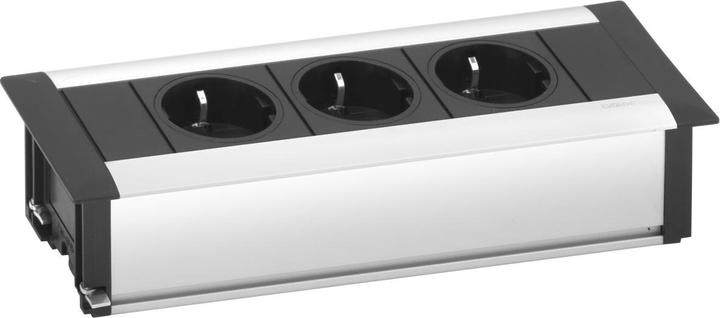

Evoline ELEKTROTECHNIK 3-way built-in socket strip Frame Dock Small (159610000900)

3 x, 3 m
Price in EUR including VAT
Ratings
BrandMore from Evoline
Delivered between Sat, 12/7 and Thu, 17/7
More than 10 pieces in stock at supplier
free shipping

Product details

The Frame-Dock is an elegant built-in solution with a timeless design for all workspaces that require power.

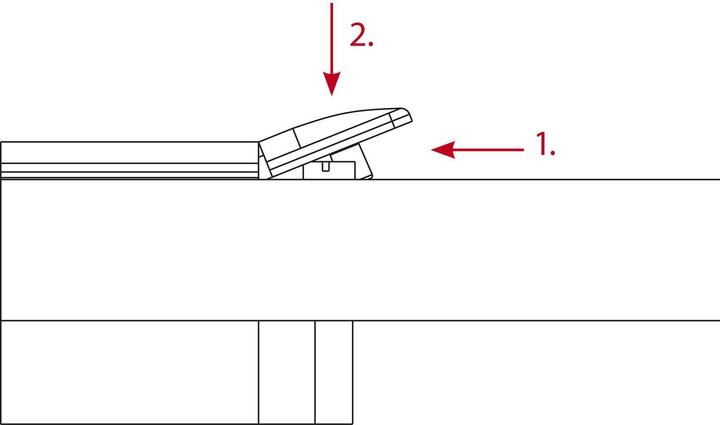

The Frame-Dock DATA stands out with its easily replaceable modules for data and multimedia, providing nearly limitless flexibility should the usage requirements of the workspace change. It is suitable for installation in panels with a thickness of 5 - 38 mm and allows for quick front mounting using concealed clamping screws. The connection cable is located at the back of the profile.

Note: This power strip can also be supplied in other sizes and with different modules, such as USB, HDMI, VGA, etc., upon request.

Installation depth (mm): 51
Height (mm): 4
Features: 3 Schuko sockets
Installation width (mm): 71

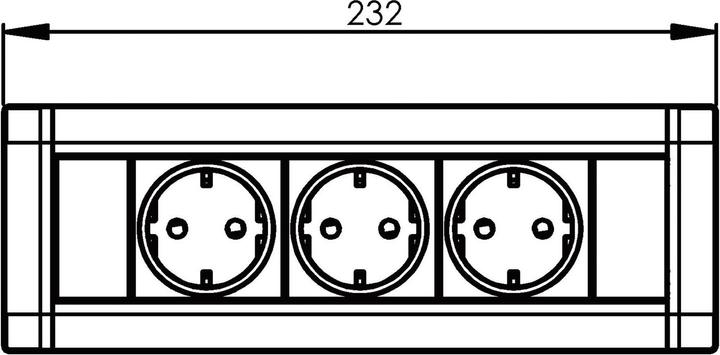

Length (mm): 232
Connection cable length (mm): 3000
Width (mm): 80
Voltage: 230 V
Material: Aluminum, plastic
Type: Frame-Dock
Installation length (mm): 225
Surface: anodized, black
Power (W): max. 3500
Product type: Power strip
Contents (ST): 1.

Key specifications

Safety functions
Increased contact protection
Item number
23199515

General information

Manufacturer
Evoline
Category
Socket strips
Manufacturer no.
159610000900
Release date
9/11/2022

Colour

Colour
Silver
Exact colour description
Aluminium, Black

Material

Material group
Metal
Material
Aluminium

Socket strip properties

Socket strip type
Built-in socket strip
Safety functions
Increased contact protection
HAR. Designation
H05vv-f 3g 1.5 mm²
Number of outlets
3 x
Cable length
3 m
Area of use
Inside
Nominal voltage
230 V
Nominal power
3680 W
Number of cores
3 x

Smart home features

Control type
Manual

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Length
232 mm
Width
80 mm
Height
55 mm

Package dimensions

Length
25.20 cm
Width
15 cm
Height
15 cm
Weight
920 g
