Festool Kapex KS 120
Product details

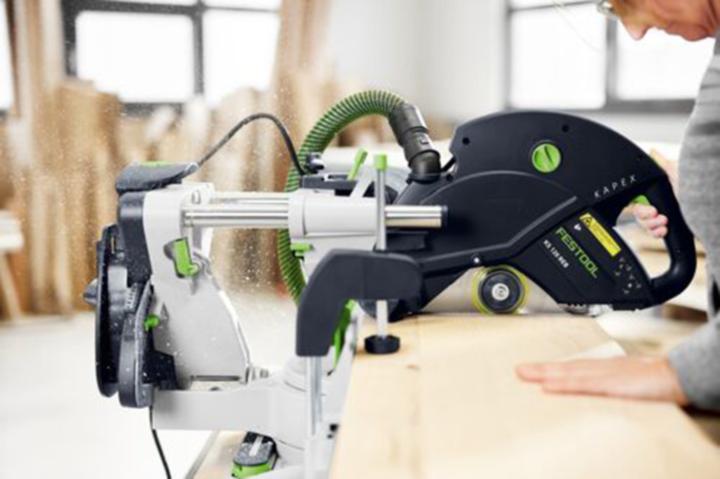

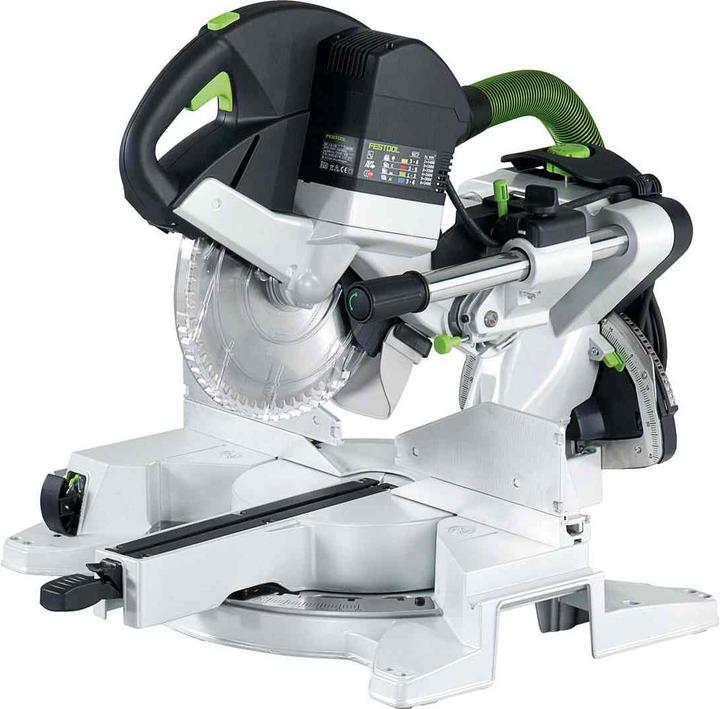

Circular saw and miter saw Festool Kapex KS 120 EB. The Kapex circular saw and miter saw combines a large cutting capacity with a compact, lightweight design. The dual line laser indicates the cutting width of the saw blade for precise feeding from both sides. The laser can be turned on and off at the push of a button. The saw can be set to a special miter cutting position to cut strips up to 120 mm in height. With the included angle stop, both inside and outside angles can be accurately transferred to the Kapex. Thanks to the fine adjustment, the cutting angle can be set from the front with millimeter precision. The suction connection and chip collector remove chips where they occur, allowing for dust-free and pleasant working conditions. The MMC electronics enable gentle and material-appropriate work through stepless speed selection, soft start, quick stop, and overload protection. Included in the delivery are HM universal saw blade Z 60, angle stop, workpiece clamp, and operating instructions.
Nominal diameter | 260 mm |
Max. depth of cut at 90° | 88 mm |
Power | 1600 W |
Item number | 7778231 |
Manufacturer | Festool |
Category | Chop saw + mitre saw |
Manufacturer no. | 561284 |
Release date | 19/2/2018 |
Colour | Silver |
Exact colour description | Black, Green, Silver |
Max. tilt adjustment | 47° |
Mounting hole | 30 mm |
Nominal diameter | 260 mm |
Number of teeth | 60 |
Max. depth of cut at 90° | 88 mm |
Power supply | Electrical connection |
Mains voltage | 230 V |
Cable length | 3.50 m |
Power | 1600 W |
Max. Idle speed | 3600 rpm |
Sound power level (LWA) | 101 dB |
Sound pressure level (LpA) | 88 dB |
Material group | Metal |
Material | Metal, Plastic |
Country of origin | Germany |
Scope of delivery | Circular saw blade WOOD UNIVERSAL HW 260x2.5x30 W60, angle clamp, workpiece clamp, hexagon socket spanner SW 6 |
Length | 500 mm |
Width | 713 mm |
Height | 470 mm |
Weight | 24.30 kg |
Product Safety |
Length | 74 cm |
Width | 58 cm |
Height | 50 cm |
Weight | 38 kg |
