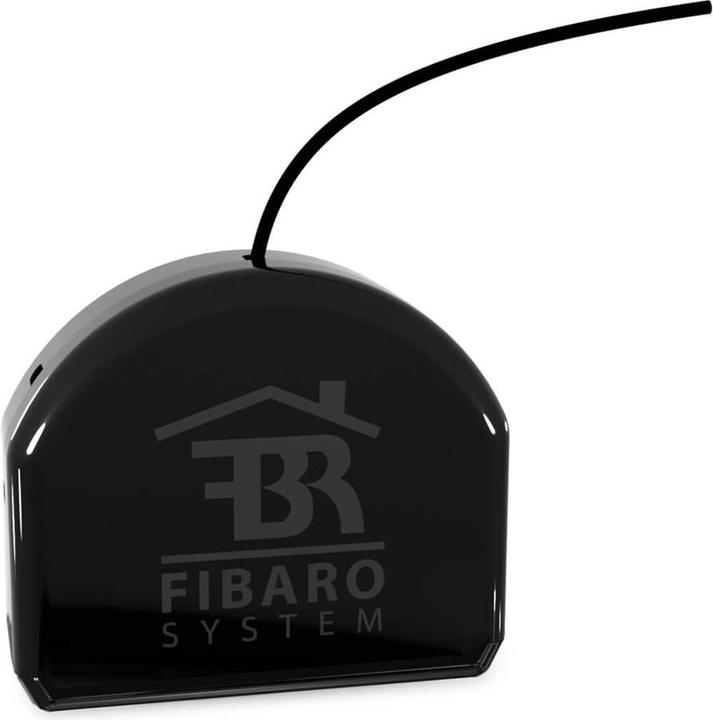

Fibaro Double Smart Module

Switch actuator
Price in EUR including VAT
Delivered between Sat, 20/12 and Fri, 26/12
More than 10 pieces in stock at supplier
free shipping

Product details

This means that the connected devices can still be switched using the existing wall switch, but thanks to Z-Wave radio, they can also be switched using a remote control, smartphone or sensor-controlled automatic system. The compact radio module is placed in a wall socket directly behind the conventional switch already there and transforms standard electrical installations into intelligent Z-Wave-based radio systems. The existing switch no longer switches the consumers directly, but only supplies a control signal to the Fibaro module, which in turn controls the consumers. This control is done either via the local switch or via radio. The Fibaro module works with any switch series and any design, as long as there is enough space in the panel box for installation. In large 65mm deep boxes this should be the case regularly. In smaller sockets (e.g. 45mm) the possible use depends on the required depth of the conventional switch as well as on the space required by the electrical connectors that may also be in the socket. The module can switch up to 6 A per relay output, but not more than 9.5 A at both relay outputs together.

Key specifications

communicating
Wireless
Actuator type
Switch actuator
Smart Home Protocol
Z-wave
Mounting type
Flush-mounted
Items per sales unit
1 x
Operating voltage
240 V
Item number
13453250

General information

Manufacturer
Fibaro
Category
Actuator
Manufacturer no.
FGS-224
Release date
7/7/2020

Colour

Colour
Black
Exact colour description
Black

Actuator properties

Actuator type
Switch actuator
Max. Switching capacity
2185 W
rated current
9 A
Operating voltage
240 V
Number of switching outputs
2 x
Mounting type
Flush-mounted

Smart home features

Smart Home
Compatible
Smart Home Protocol
Z-wave
communicating
Wireless
Radio frequency
870000000 Hz
Requires Smart Home Hub
Yes

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Length
20.30 mm
Width
38.25 mm
Height
42.50 mm
Weight
29 g

Legal Notice

Product Safety

Package dimensions

Length
7 cm
Width
5 cm
Height
7 cm
Weight
44 g
