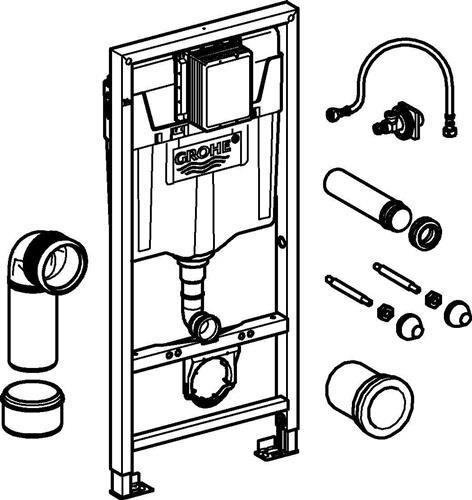

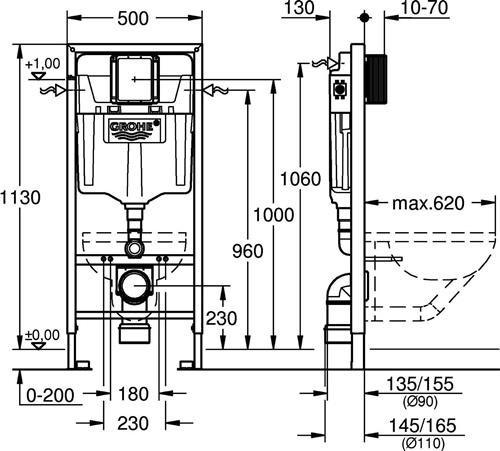

1.13 m height - for pre-wall and stud wall installation - steel frame completely pre-assembled - with quick adjustment and height lock - fixing material - 2 WC retaining bolts - ceramic fixing - screw spacing 180/230 mm - drain bend Ø 90 mm - depth-adjustable.

Additional technical features:

• Dimension connection tap water 1/2 inch
• Axle dimension WC fastening 18 cm and 23 cm
• Connection tap water other
• Number of connections tap water 1
• Load capacity >= 400 kg
• Suitable for operation via the flush: No
• Suitable for front operation: Yes
• Suitable for shower toilet: No
• Suitable for electrical operation: Yes
• Suitable for remote operation: Yes
• Suitable for manual control: Yes
• Suitable for infrared control: Yes
• Suitable for installation wall (system wall): Yes
• Suitable for lightweight wall (drywall): Yes
• Suitable for solid wall (wet wall): No
• Suitable for pneumatic operation: Yes
• Suitable for flush flow throttling: Yes
• Suitable for WC with reduced support: Yes
• Cistern material: plastic
• Min. shelf height: 0 mm
• With shelf height: 0 mm
• With drainage bend: Yes
• With fixing material for WC: Yes
• With corner valve: Yes
• With inlet and drainage set: Yes
• With bracket suitable for floor installation: Yes
• With bracket suitable for high wall: Yes
• With bracket suitable for low wall: Yes
• With condensation insulation: Yes
• With contact noise insulation set: No
• Quality class cistern: Polypropylene (PP)
• Frame suitable for WC with jump > 60 cm: No
• Outside pipe diameter tap water: 0 mm
• Flush volume: 3 l
• Depth adjustable: Yes
• Toilet height adjustable: No
• Adjustable width: No.
