HKL two-fold socket unit KES-2.3.15

Manufacturer: HKL
Designation: Two-fold socket unit red
Type: KES-2.3.15
Number of units: 2
Mounting type of socket: front
Design: closed
Device type: other
Mounting track: other
Mounting type of installation device: snap-in
Strain relief option: yes
With connection space: yes
Material: other

Further details:
Device installation system, pre-assembled, double, horizontal, pre-wired ready for connection, complete with adapter and cover frame, with socket insert for EDP circuits, for snapping onto the cover mounting contour of the BU65. Recommended for normal use. For special loads (e.g. schools, workshops, sports halls), we recommend the use of our KED device installation boxes in connection with an adequate switch program.

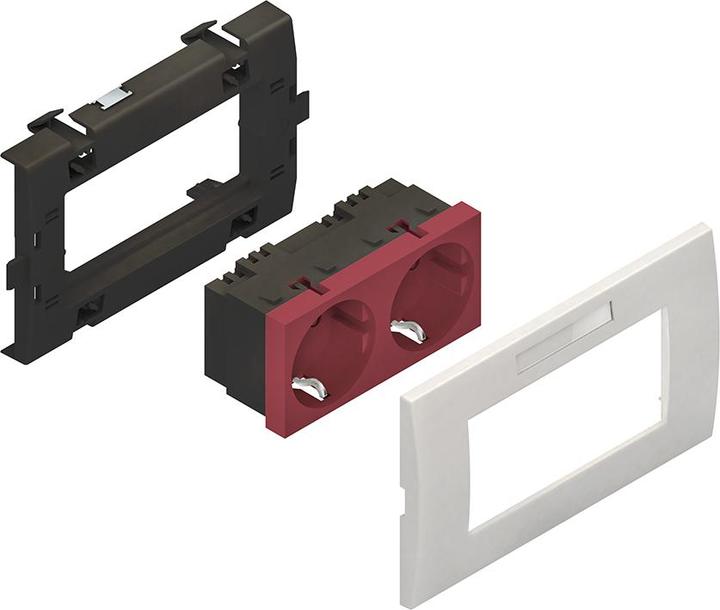

Set consists of:

• 1 x component adaptor, double, module 45, with 2 spring clips
• 1 x socket insert, double, horizontal, with plug-in terminals for lines 1.5 - 2.5 mm², 2-pole, with contact hazard protection
• 1 x cover frame, double, module 45, including viewing window with label for labeling field
• 1 x mounting instructions

The cross-section of approximately 1134 mm² must be deducted from the usable cross-section of the device channel.

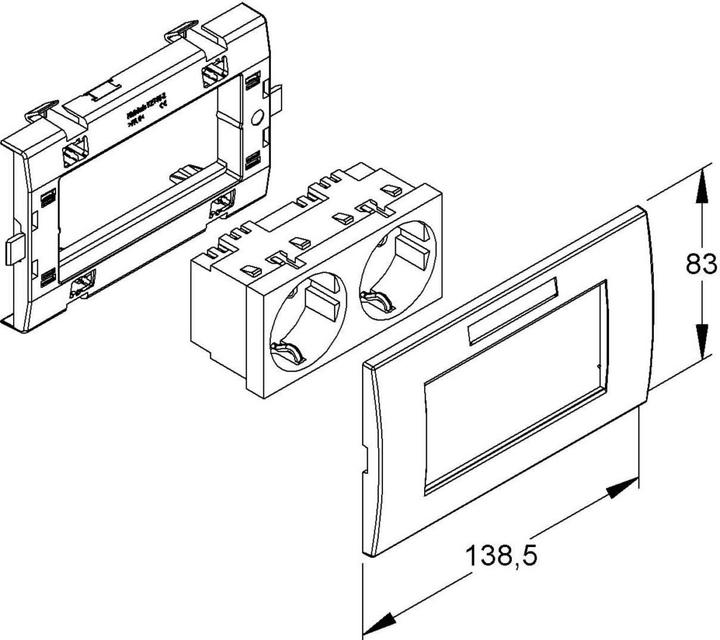

Dimensions (approx.): H x W: 83 x 138.5 mm for cover opening: 80 mm
Rated voltage: 250V / 16A
Socket insert color: ruby red RAL: 3003 (similar)
Cover frame color: pure white RAL: 9010 (similar)
EAN: 4011126403053.
