Description

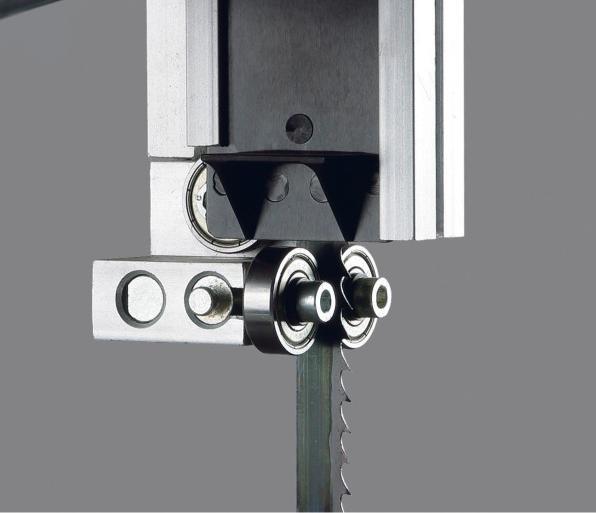

Ideal for ambitious model builders and DIY enthusiasts. Flywheels made of aluminum die-cast with a special coating. Aluminum cast work table tiltable up to 45°. Equipped with precise 3-roller band saw guidance above and below the table. Aluminum parallel stop with quick clamping, precisely adjustable with the help of a magnifying glass and millimeter scale (except HBS 231-1). Two adjustable band speeds (except HBS 231-1).

Technical Data
Dimensions and Weights
Length (Product) approx. 490 mm
Width/Depth (Product) approx. 420 mm
Height (Product) approx. 835 mm
Weight (Net) approx. 20 kg

Connection for Dust Extraction
Dust extraction nozzle diameter 53 mm

Work Table(s)
Work table length 300 mm
Work table width 300 mm
Work table height 405 mm
Work table tilt 0 – 45 °

Electrical Data
Connection voltage 230 V
Mains frequency 50 Hz
Power consumption 0.3 kW
Output power 0.17 kW

Cutting Areas
Max cutting height at 90° 90 mm
Max cutting height at 45° 50 mm
Max cutting width with stop 125 mm
Max cutting width without stop 228 mm

Saw Blade
Saw blade speed(s) 635 m/min
Flywheel diameter 238 mm
Saw blade length 1575 mm
Min saw blade length 1565 mm
Max saw blade length 1585 mm
Saw blade width 6.35 mm
Max saw blade width 10.0 mm
Saw blade thickness 0.35 mm

Scope of Delivery
Saw blade
Parallel stop
Angle stop
LED work light
Push stick.
