Description:

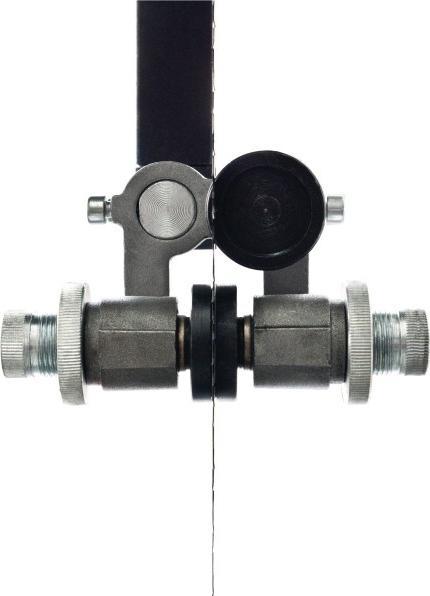

Twist-resistant construction. High stability with minimal space requirement. Safe and smooth saw cuts in wood. The heavy cast iron worktable with a ground surface is adjustable from 0 to 45°. Powerful motor. Safety switch stops the machine when the door is opened, preventing unwanted operation and startup. High-quality fixed band saw guide. Professional band saw with closed base. Quick tensioning of the saw blade via an eccentric lever on the back of the machine, without changing the basic tension setting. Cast iron flywheels ensure smooth operation. Easy tilting of the table from 0 to 45° via a rocking mechanism. Standard with two speeds. Set cutting width can be easily read on a scale. Suitable for saw blade widths from 6 to 25 mm. Aluminum parallel stop with eccentric quick tensioning and scale.

Technical Data:
Dimensions and Weights:
Length (Product) approx. 800 mm
Width/Depth (Product) approx. 490 mm
Height (Product) approx. 2000 mm
Weight (Net) approx. 157 kg

Dust Extraction Connection:
Dust extraction port diameter 100 mm

Work Table(s):
Work table length 535 mm
Work table width 485 mm
Work table height 975 mm
Work table groove width 19 mm

Electrical Data:
Connection voltage 230 V
Mains frequency 50 Hz
Power consumption 1.5 kW

Cutting Areas:
Max cutting height at 90° 285 mm
Max cutting width with stop 390 mm
Max cutting width without stop 465 mm

Saw Blade:
Saw blade speed(s) 380 / 820 m/min
Flywheel diameter 470 mm
Saw blade length 3455 mm

Scope of Delivery:
Saw blade 16.0 x 0.5 x 3455 mm / 4 TPI
Aluminum parallel stop.
