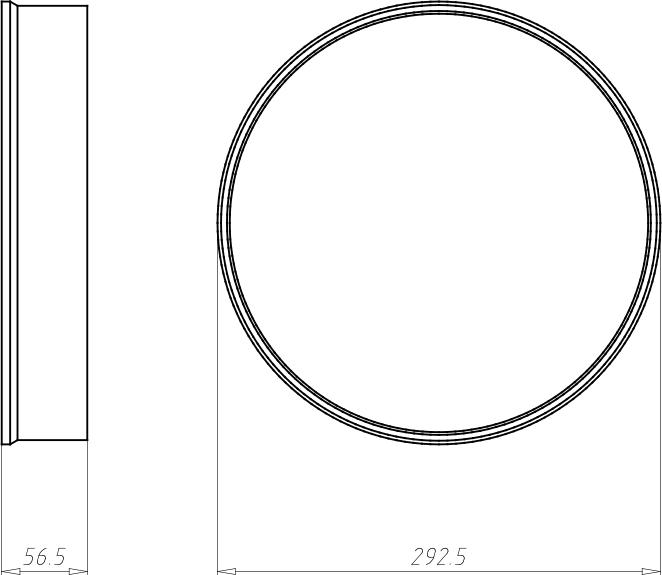

Kaiser Extension Ring 1283-50

Manufacturer: Kaiser
Description: Extension Ring
Installation Height: 50 mm
Type: 1283-50
Accessory/Spare Part Type: Intermediate Frame
Accessory: yes

Kaiser Extension Ring 1283-50: Additional Details
Extension rings HaloX® (1283-50). The dimensionally stable HaloX® system is modularly designed for use in cast-in-place concrete. Three housing diameters with a variety of round, square, and universal front parts allow for the integration of lights and speakers with an installation diameter of up to 250 mm, even with exposed concrete. The system provides ample space for accommodating operating devices, such as LED drivers, with tunnels. Optional extension rings increase the installation depth. All front parts are moisture-resistant and can be accurately positioned and nailed down before the first reinforcement is laid. The housing and front parts are securely interlocked and can be adjusted freely even after installation. The tool-free opening technique with M20/M25 combination entry allows for easy and quick insertion of pipes, and even in case of incorrect placement, the entry can be easily resealed. It provides secure pipe retention with a depth stop, eliminating the need for subsequent internal shortening of the pipes. After pouring, front parts with a defined installation diameter can be opened with a targeted hammer blow. Front parts for universal opening sizes can be applied or overfilled with plaster. Subsequently, the desired installation opening can be created using conventional milling tools, such as MULTI 4000.

Installation Type: Cast-in-Place Concrete
Installation Type: Factory Production
Max. Installation Depth for Light / Speaker: + 50 mm
EAN: 4013456547353.
