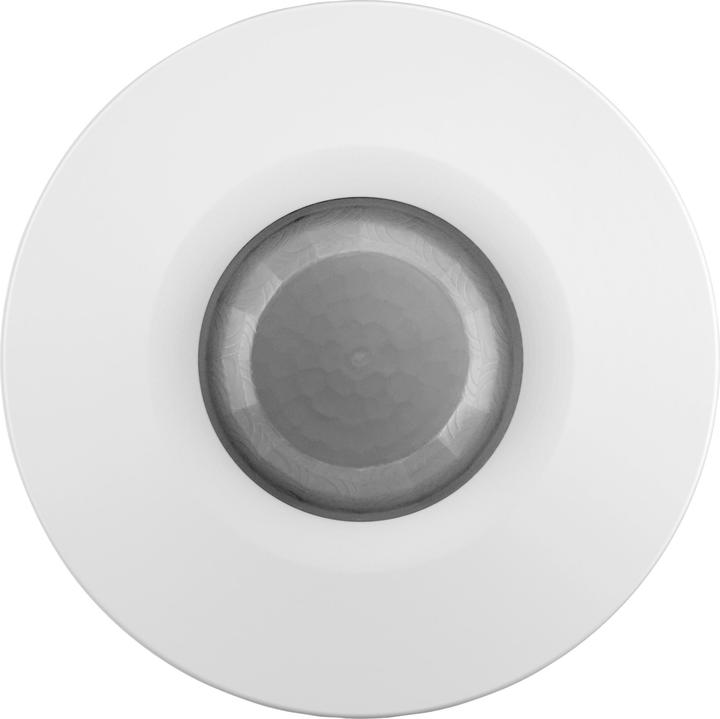

Version: Presence detector
Sensor type: Passive infrared
With DALI interface: Yes
Constant light control: Yes
HLK control: Yes
Forced switch-on: Yes
Forced switch-off: Yes
Animal creep protection: Yes
Creep protection: Yes
Rear field monitoring: Yes
CK field monitoring: No
Networkable: Yes
Scan angle: 360°
Optimal mounting height: 2.8 m
Automatic staircase lighting: Yes
Bypass switch: No
Max. range to one side: 5 m
Max. presence area: 13 sqm
Max. range frontal: 3 m
Diameter of detection field on floor: 10 m
Suitable for wireless transmission: No
Remote controllable: Yes
With remote control: No
Adjustable response sensitivity: Yes
Adjustable response brightness: Yes
With signalling unit: No
Teach function for response brightness: Yes
Dimming function with dimming insert: No
Mounting type: Concealed
Suitable for ceiling mounting: Yes
Suitable for wall mounting: Yes
Type of connection: Plug-in terminal
Material: Plastic
Material quality: Thermoplast
Surface protection: Untreated
Surface finish: Chemical matt
Antibacterial treatment: No
Colour: White
RAL number (similar): 9016
Transparent: No
Type of protection (IP): IP20
Impact resistance: IK04
Voltage type: AC
Frequency: 50 - 60 Hz
Nominal voltage: 230 - 230 V
Min. duty cycle: 1 s
Max. duty cycle: 180 min
Detection angle horizontal: 0 - 360°
Response brightness: 2 - 2000 lx
Max. switching power: 2300 W
Temperature: 0 - 50 °C
Max. switch-on current: 10
Auxiliary input: Yes
Alarm function: No
With acoustic sensor: No
Depth: 30 mm
Diameter: 84 mm
Installation depth: 15 mm
With connection cable: Yes
Length of connection cable: 60 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No.
