Legrand LS SWITCH C10A 1P+N 10KA 2M (404186 TX3)

Price in EUR including VAT
Ratings
Delivered between Sat, 5/7 and Thu, 10/7
More than 10 items in stock at supplier
Free shipping starting at 30,–

Product details

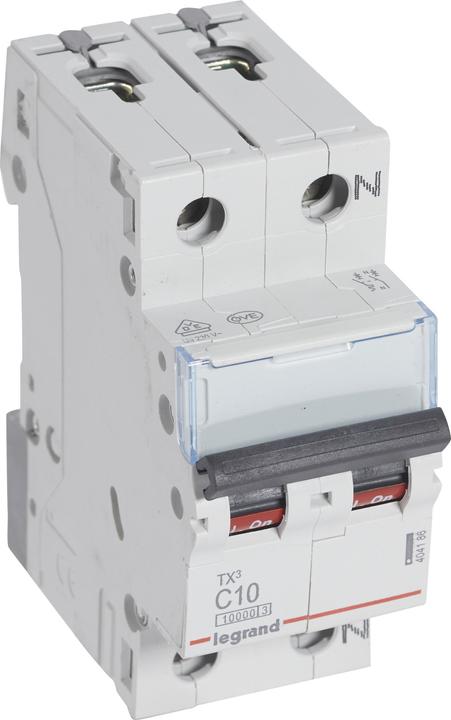

Legrand miniature circuit-breaker 404186
Manufacturer: Legrand
Designation: Miniature circuit-breaker C10A 1-pole + N 10kA
Type: 404186
Mounting depth: 44 mm
Tripping characteristic: C
Number of poles (total): 2
Number of fused poles: 1
Rated current: 10 A
Rated voltage: 230 V
Rated insulation voltage Ui: 500 V
Rated impulse withstand voltage Uimp: 4 kV
Rated breaking capacity Icn according to EN 60898 at 230 V: 10 kA
Voltage type: AC
Frequency: 50-60 Hz
Energy limitation class: 3
Flush mounting: Yes
Switching neutral conductor: Yes
Degree of pollution: 2
Additional devices possible: Yes
Width in pitch units: 2
Protection class (IP): IP20
Explosion-proof: No

Legrand miniature circuit-breaker 404186: further details
Legrand miniature circuit-breaker TX3 according to EN 60898-1, VDE 0641-11, EN 60947-2, 1-pole with connecting neutral, C-characteristic, rated current In 10 A, rated breaking capacity Icn 10 kA according to EN 60898-1, rated voltage Un 230 VAC, rated frequency 50/60 Hz, energy limitation class 3, mounting on DIN rail EN 60715 by means of a latching quick-release fastening, clear information on the front of each device, clear switching position, clear red/green switch position indication on the switch lever, with labelling window, with plug-in protection for safe insertion of the conductor into the lift terminal, mounting of auxiliary devices possible. Miniature circuit breakers with C-characteristic are designed for line protection of devices with high inrush currents (e.g. motors and transformers).

Key specifications

Circuit breaker type
Miniature circuit breaker
Width
2 mm
mounting style
Flush-mounted
number of poles
2
Item number
32059386

General information

Manufacturer
Legrand
Category
Residual-current device
Manufacturer no.
404186
Release date
25/10/2022

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
mounting style
Flush-mounted
number of poles
2
Tripping characteristic
C
Rated current
10 A
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
500 V
Protection type (IP code)
IP20

Origin

Country of origin
Poland

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Width
2 mm
