Quantity discount

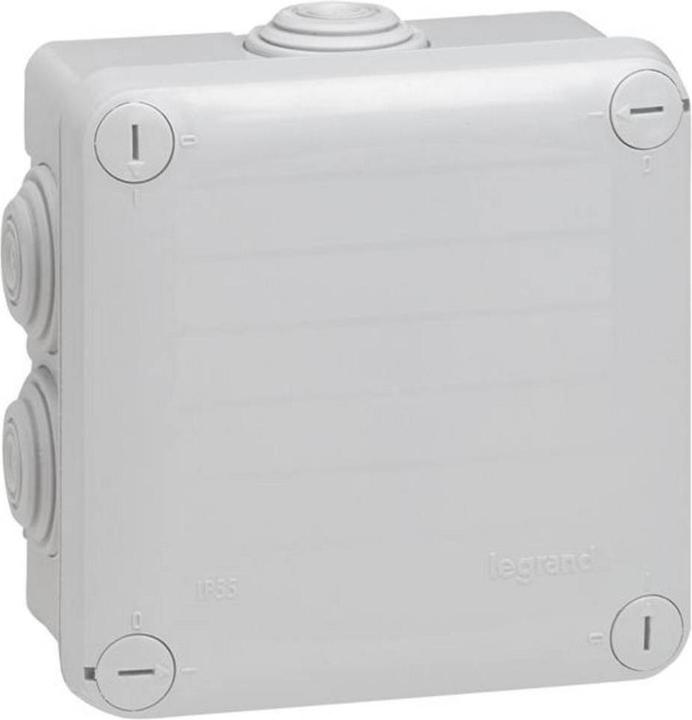

Legrand Plexo box

Price in EUR including VAT
Save EUR8,64
9Ratings
BrandMore from Legrand
Delivered between Sat, 11/4 and Wed, 15/4
More than 10 pieces in stock at supplier
Free shipping starting at 30,–

Product details

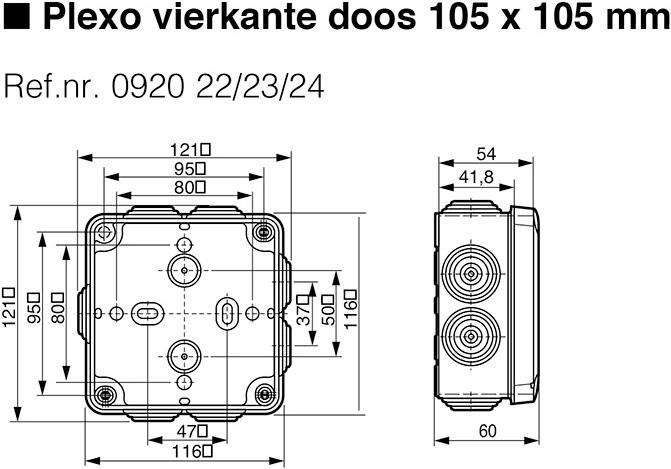

Plexo boxes IP 55 - IK 07 with membrane glands for direct entry, glow wire resistance at 650 °C. Designed for use as junction boxes in any type of normal installation circuit. Operating temperature ranges from -25 °C to +40 °C. Interchangeable membrane glands accommodate IRL conduits up to 16 and R02V cables, with marked recess for larger IRL conduits. Features a captive cover with cable tie and space for marking on both sides. Fastening is achieved with vertical leveling. Class II is ensured by protective caps (included) for the fixing screws. These boxes are free from halogenated flame retardants (in compliance with European Directive RoHS 2002/95/EC). Square boxes can be fixed using tools such as a Pulsa 700 E nail gun. Dimensions are 105 x 105 x 55 mm in grey (RAL 7035). Permissible cables and conduits range from 4 to 25 mm. The cover closes with a quarter turn.

Key specifications

Junction box type
Distribution box
Protection type (IP code)
IP55
Height
105 mm
Width
105 mm
Length
55 mm

General information

Item number
13407529
Manufacturer
Legrand
Category
Junction box
Manufacturer no.
0 920 22
Release date
22/2/2016
External links
Manufacturer's site (de)

Colour

Colour
Grey
Exact colour description
Grey

Material

Material group
Plastic
Material
Plastic

Junction Box Features

Junction box type
Distribution box
mounting style
Finery
Area of use
Inside

Safety

Protection type (IP code)
IP55

Origin

Country of origin
France, Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
0,53 kg
Climate contribution
EUR 0,12

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Height
105 mm
Width
105 mm
Length
55 mm
Diameter
105 mm

Legal Notice

Product Safety

Package dimensions

Length
11 cm
Width
12 cm
Height
6.50 cm
Weight
156 g
